Locka Double
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
clip
ring
x16
x2
D
E
handle
bolt
x2
x4

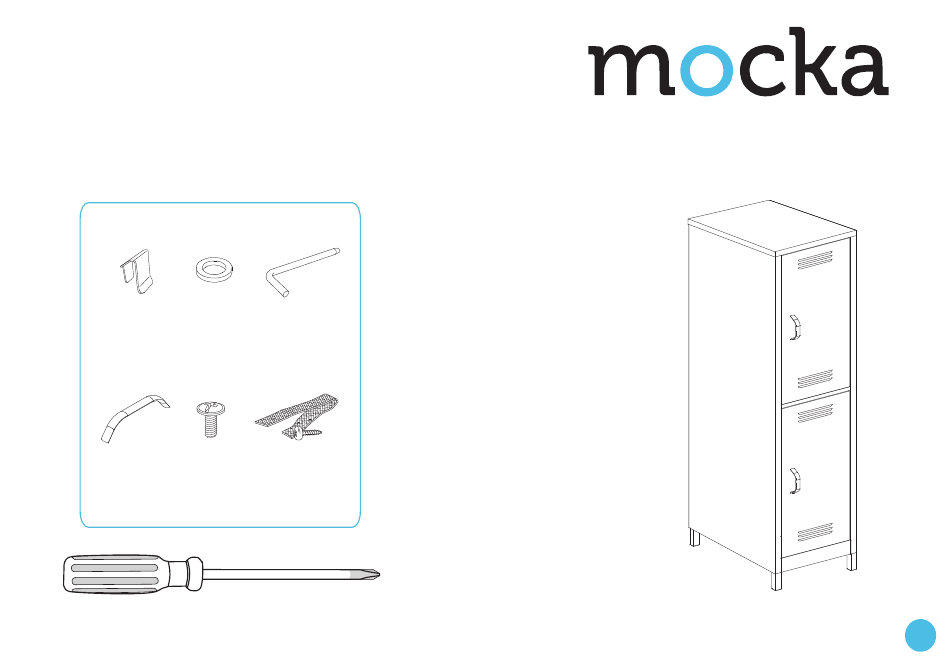

Hardware Supplied
Phillips screwdriver required
mocka.co.nz | mocka.com.au
C
WARNING:
wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on
the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall
rod
anchor with all furniture sold and we recommend
x4
these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but
please note that different wall materials may require
different fixing devices from those supplied.
F
wall mount
x1
Any furniture that is not anchored to a
1
Advertisement
Table of Contents
Related Manuals for Mocka Locka Double
Summary of Contents for Mocka Locka Double
- Page 1 Locka Double Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Locka Double Assembly Instructions CLICK! CLICK! CLICK! CLICK! Slide the legs [3] and [4] into the bottom of the side panels [1] and [2] Insert each end of the shelf bracket [10] into the gaps on the sides of until they click into place.
- Page 3 Locka Double Assembly Instructions Insert the back panel [5] as shown. Attach the top panel [6] to the rest of the unit. mocka.co.nz | mocka.com.au...
- Page 4 Locka Double Assembly Instructions Secure the top panel by clicking into place as shown. Insert the bottom and middle shelves [7] by clicking into place as shown. NB. If you ever need to take the shelves out to readjust their height, please use a flat head screwdriver to loosen the clips from underneath.
- Page 5 Locka Double Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Insert 16x clips (A) into the back and front clip brackets at your desired Attach handle (D) to door panel [9] with 2x bolts (E) and tighten with a shelf height as shown. Place the four shelf panels [8] into the unit over screwdriver.
- Page 6 Locka Double Assembly Instructions Attach the bottom door by inserting 1x ring (B) and 1x rod (C) through To attach the top of the door, insert 1x rod (C) through the door panel as the door panel [9] as shown. Twist the rod into place and secure by shown.
- Page 7 Locka Double Assembly Instructions Wall Mount Lift the completed unit into place, do not drag. Mark its height on the You’re done, enjoy! wall with a pencil. Attach one end of the wall mount strap to the back of the unit with a 1x screw (F). Screw the other end into the wall at the marked height with a wall screw (not supplied).
