Locka Single
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
clip
ring
x8
x1
D
E
handle
bolt
x1
x2

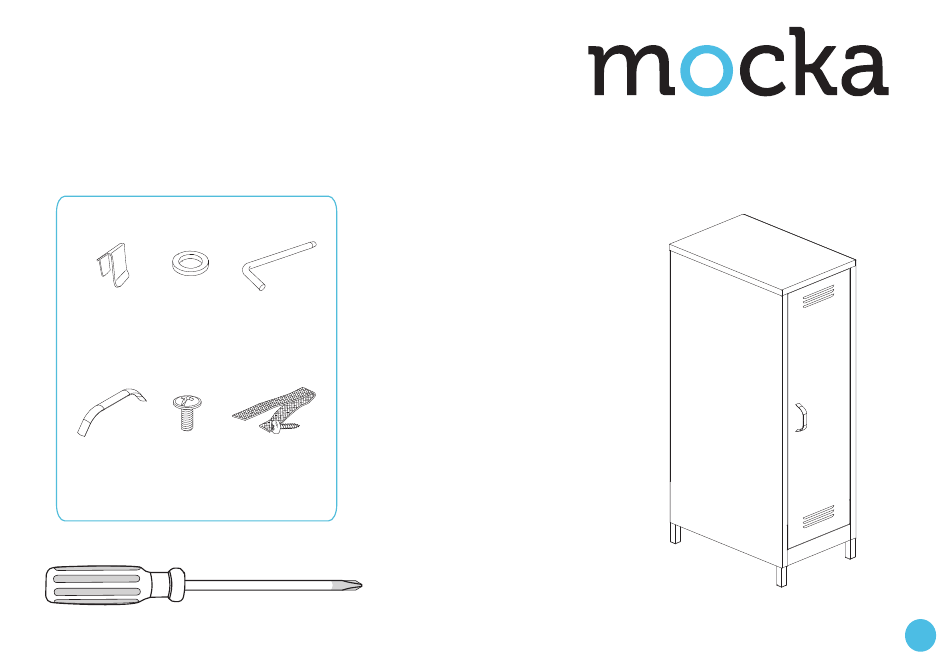

Hardware Supplied
Phillips screwdriver required
mocka.co.nz | mocka.com.au
WARNING:
Any furniture that is not anchored to a wall
has the potential to tip over in certain circumstances, i.e.
C
if a child attempts to climb up on the furniture or in the
event of an earthquake. Accordingly, we recommend
that all furniture is anchored to a wall. We supply a free
safety wall anchor with all furniture sold and we
recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall
rod
types, but please note that different wall materials may
require different fixing devices from those supplied.
x2
F
wall mount
x1
1
