Mocka Leon Dining Chair Assembly Instructions

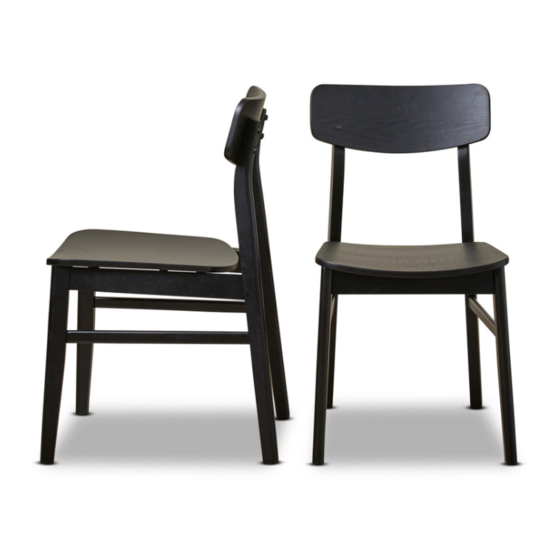

Leon Dining Chair

Thank you for purchasing Leon Dining Chair. Please follow the

manufacturer's assembly instructions in detail.

45mm screw

25mm screw

dowel

bracket

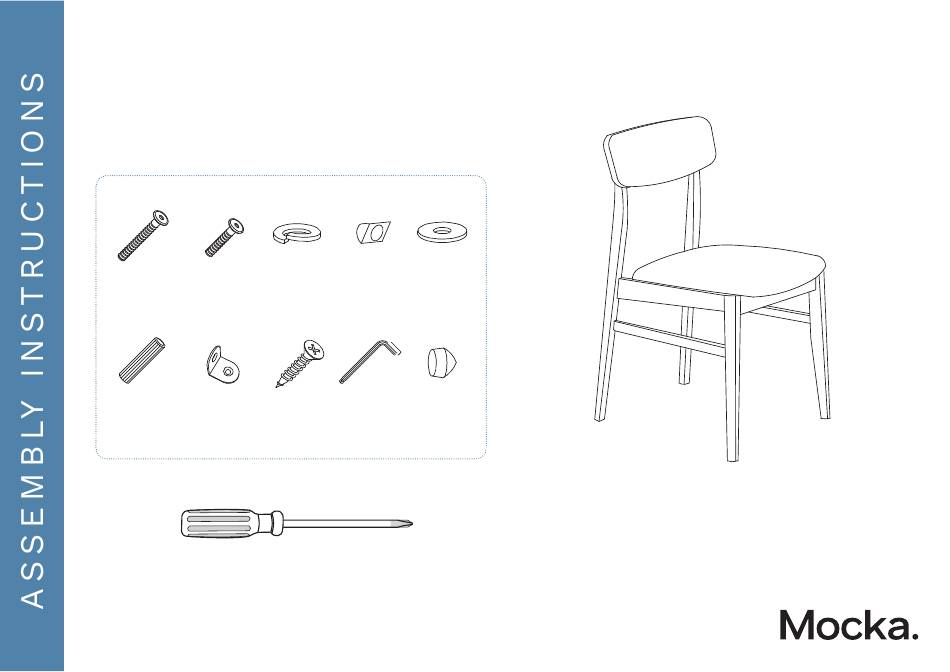

HARDWARE SUPPLIED

Phillips screwdriver required.

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

mocka.co.nz I mocka.com.au I

x10

spring

screw pin

washer

screw

allen key

wood button

Read instruction carefully. Remove all wrapping material, staples and straps from the

carton. See Hardware and Furniture Parts List for guidance. Be sure you have all parts

before you start assembling. Place all wooden furniture part a clean and ﬂat soft

surface, such as carpet or rug to prevent from being scratched.

CAUTION :

KEEP ALL HARDWARE PART OUT OF REACH OF CHILDREN.

Table of Contents

Do you have a question about the Leon Dining Chair and is the answer not in the manual?

Page 1 Leon Dining Chair Thank you for purchasing Leon Dining Chair. Please follow the manufacturer’s assembly instructions in detail. spring 45mm screw 25mm screw screw pin washer washer dowel bracket screw allen key wood button HARDWARE SUPPLIED Read instruction carefully. Remove all wrapping material, staples and straps from the carton.
Page 2 Leon Dining Chair Attach 4 x dowels (F) to 2 x strechers (3) and 2 x legs (2) as shown. Attach assembled frame together as shown and secure with 4 x screws (A), 4 x spring washers (C) and 4 x screw pins (D). Tighten with an Allen Key (I).
Page 3 Leon Dining Chair Attach 1 x backrest (1) to assembled frame as shown and secure with Attach 1 x seat (4) to assembled frame as shown and secure with 2 x screws (A) 4 x screws (B), 4 x spring washers (C) and 4 x washers (E). Tighten with an Allen and 2 x spring washers (C).
Page 4 Leon Dining Chair Attach 1 x seat (4) to assembled frame and secure with 4 x brackets (G) and 8 x Once assembled lift furniture into place, do not drag. Ensure unit is screws (H). Tighten with a screwdriver. balanced and steady before use. You’re done, enjoy!
