Mocka Leon Assembly Instructions

Occasional chair

Download this manual

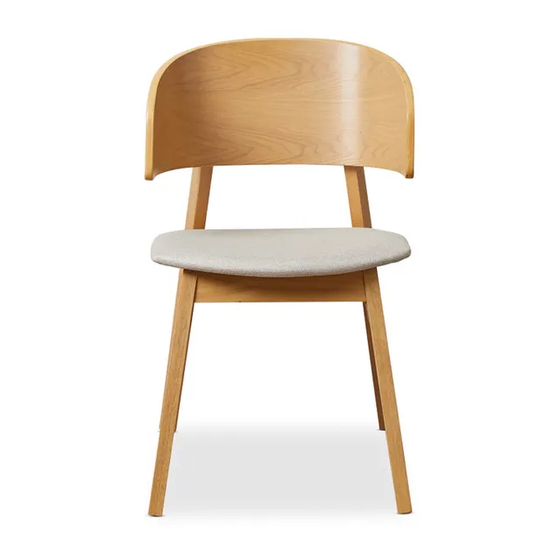

Leon Occasional Chair

Thank you for purchasing Leon Occasional Chair. Please follow the

manufacturer's assembly instructions in detail.

50mm screw

30mm screw

x10

screw

dowel

allen key

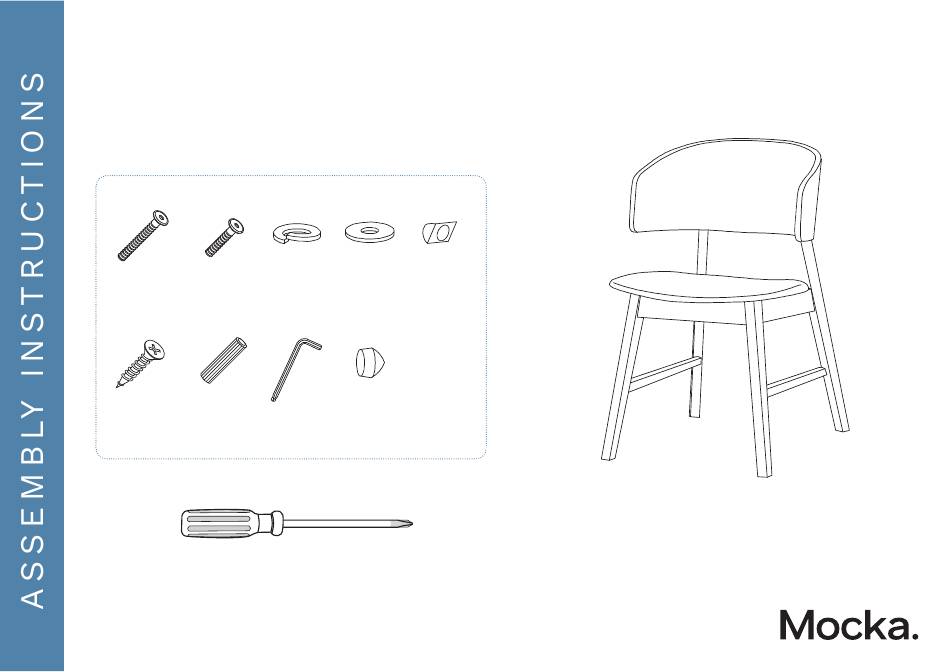

HARDWARE SUPPLIED

Phillips screwdriver required.

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

mocka.co.nz I mocka.com.au I

spring

washer

screw pin

washer

wood button

Read instruction carefully. Remove all wrapping material, staples and straps from the

carton. See Hardware and Furniture Parts List for guidance. Be sure you have all parts

before you start assembling. Place all wooden furniture part a clean and ﬂat soft

surface, such as carpet or rug to prevent from being scratched.

CAUTION :

KEEP ALL HARDWARE PART OUT OF REACH OF CHILDREN.

Need help?

Do you have a question about the Leon and is the answer not in the manual?

Page 1 Leon Occasional Chair Thank you for purchasing Leon Occasional Chair. Please follow the manufacturer’s assembly instructions in detail. spring 50mm screw 30mm screw washer screw pin washer screw dowel allen key wood button HARDWARE SUPPLIED Read instruction carefully. Remove all wrapping material, staples and straps from the carton.
Page 2 Leon Occasional Chair Insert 10 x dowels (G) into legs (1) and stretchers (2) as shown. Attach assembled parts together as shown and secure with 4 x bolts (A), 4 x spring washer (C) and 4 x screw pins (E). Tighten with an Allen Key (H).
Page 3 Leon Occasional Chair Attach 1 x backrest (I) to assembled frame and secure with 4 x screws (B), Attach seat (4) to asembled frame and secure with 6 x screws (F). Tighten with 4 x spring washers (C), 4 x washers (D). Tighten with an Allen Key (H). Once a screwdriver.
Page 4 Leon Occasional Chair Once assembled lift furniture into place, do not drag. Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz I mocka.com.au I...
