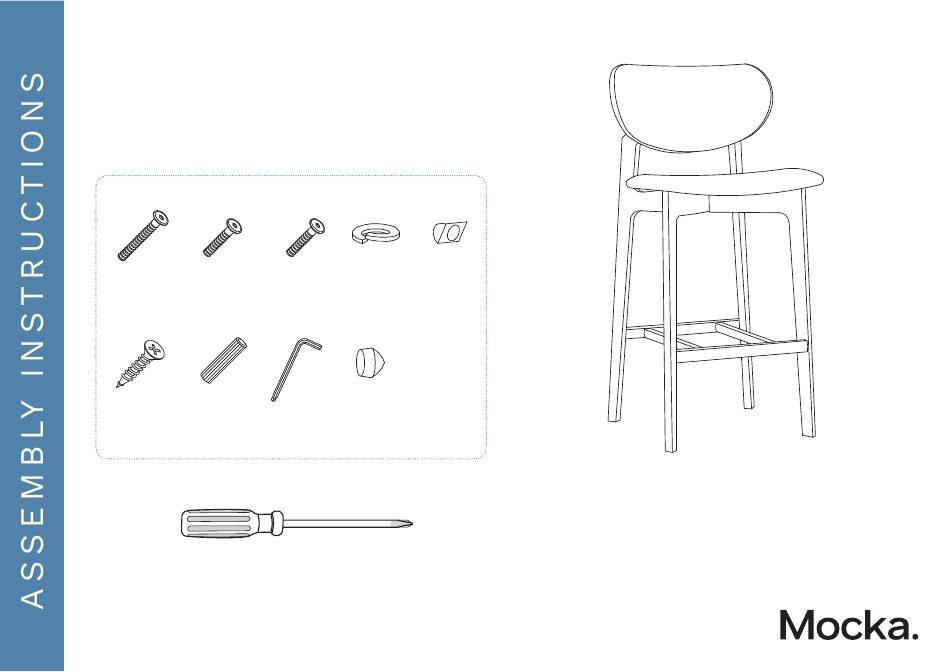

Mocka Leon Barstool Assembly Instructions

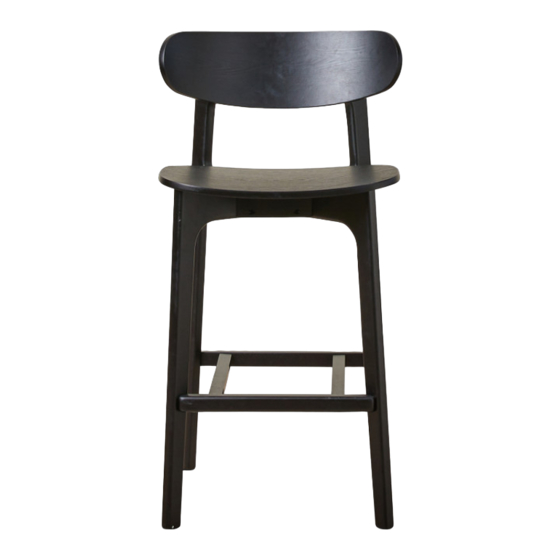

Leon Barstool

Thank you for purchasing Leon Barstool. Please follow the

manufacturer's assembly instructions in detail.

50mm screw

40mm screw

30mm screw

x29

screw

dowel

allen key

HARDWARE SUPPLIED

Phillips screwdriver required.

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

mocka.co.nz I mocka.com.au I

spring

screw pin

washer

wood button

Read instructions carefully. Remove all wrapping material, staples and straps from the

carton. See hardware and furniture part list for guiddance. Be sure you have all parts

before you start assembling. Place all wooden furniture part a clean and ﬂat soft

surface, such as carpet or rug to prevent from being scratched.

CAUTION :

KEEP ALL HARDWARE PART OUT OF REACH OF CHILDREN.
