Installation and mounting manual for EK-FB ASR Z77 Extreme11 water block:
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning with the installation process!
2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard's circuit board (PCB).
3. The EK High Flow and EK-PSC type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber o-ring gaskets.
4. The use of quality, market proved corrosion inhibiting coolants is always strongly recommended for any liquid cooling system.

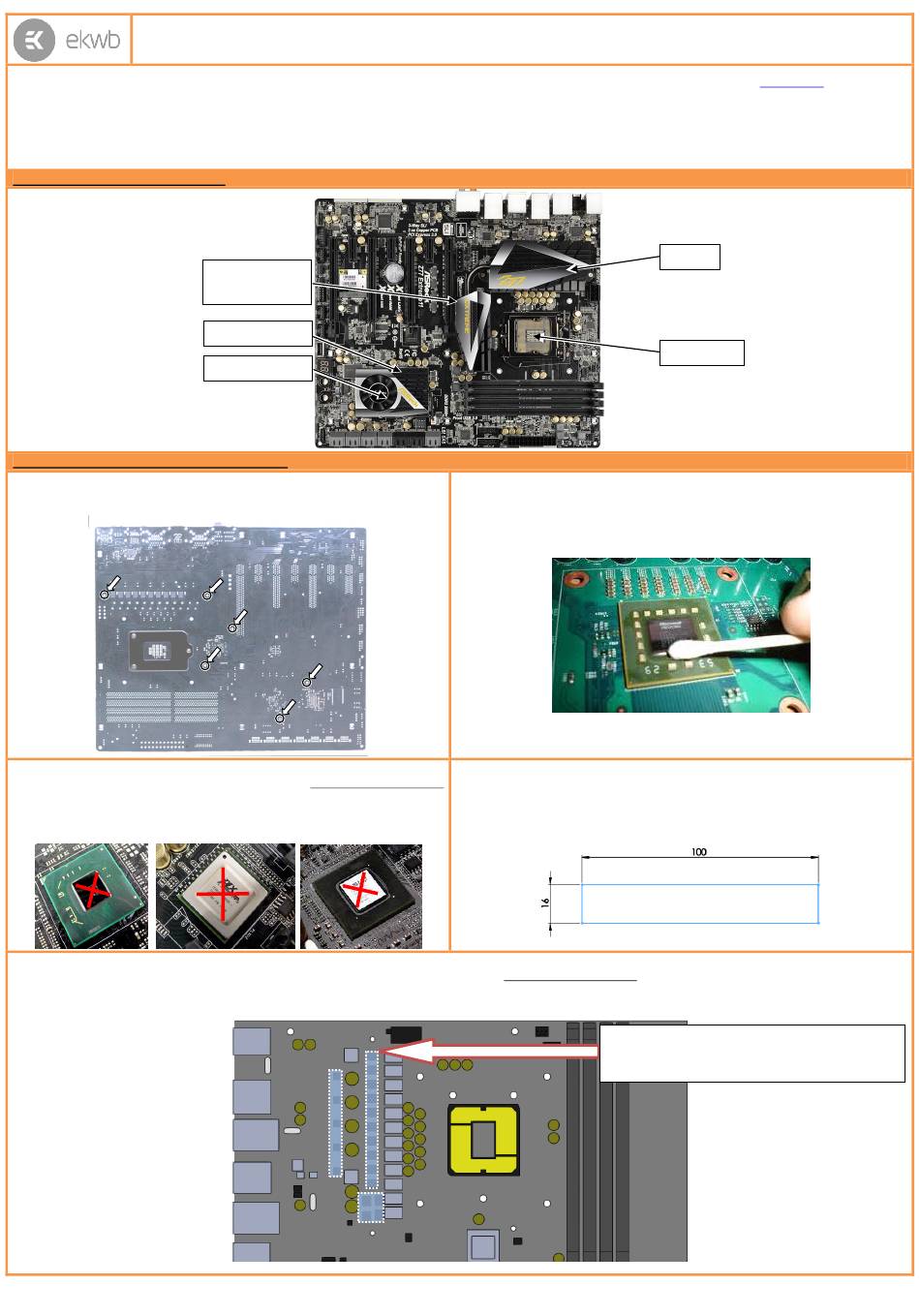

STEP 1: GENERAL INFORMATION Sample photo of ASRock Z77 Extreme11 motherboard

STEP 2: PREPARING YOUR MOTHERBOARD

1. REMOVING STOCK COOLER.
on the back of the motherboard that needs to be removed in order to remove the
factory installed MOSFET/NB- as well as SB cooling solution.
3. APPLYING THERMAL COMPOUND.
Intel Z77 PCH (SB), PLX PEX 8747 and LSI SAS2308
thermal grease - for example Arctic Cooling MX-2 ™,MX-4 ™ or GELID GC-Extreme
™. EKWB recommends to apply thermal grease in cross form for best performance
(see sample picture).
5. PLACING THERMAL PADS ON MOTHERBOARD.
SIDES OF THE THERMAL PADS PRIOR TO INSTALLATION). EK recommends using small drops of electrically non-conductive (for example: Arctic Cooling MX-2 ™,MX-4 ™ or
GELID GC-Extreme ™) thermal grease on each phase regulator (that is being covered with thermal pad; see picture below) in order to even further improve the thermal
performance of the EK-FB ASR Z77 Extreme11 series water block.
All disclosures, notices and warranty conditions are being written on EKWB web page. Please check terms of use.
PLX PEX 8747
PCIe lane splitter
Intel Z77 PCH (SB)
LSI SAS controller
Remove all encircled screws. There are 6 screws
Apply thermal compound: lightly coat the
with electrically non-conductive
Place thermal pads you cut on PCB as shown on picture bellow (PLEASE REMOVE THE PROTECTIVE FOIL FROM BOTH
2. CLEANING THE PCB.
Carefully detach the original stock cooler after removing all
screws securing it to the board. Wipe off the remains (by using non–abrasive cloth or
qtip
, as shown on sample photo) of the original thermal compound until the components
and circuit board are completely clean. EKWB recommends the use of denatured alcohol
for removing TIM leftovers.
4. CUTTING THERMAL PADS.
Your block comes with thermal pads, some of which are
already pre-cut. Others have to be cut to smaller chunks in order to cover all the VRM
components such as MOSFETs and drivers. PLEASE REMOVE THE PROTECTIVE FOIL
FROM BOTH SIDES OF THE THERMAL PADS PRIOR TO INSTALLATION.
Replacement thermal pad: Thermal PAD A 1,0mm - (100x16mm) [EAN: 3830046996626]
Place 1.0mm thick thermal pads in larger strips over
marked area and make sure all mosfet chips are
covered.
www.ekwb.com for updates. Before
Mosfets
CPU socket
Revision 1.0. Published on April 14
th
2013
