Installation and mounting manual for EK-FB GA Z87X-OC Force water block
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning the installation process!
2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard's circuit board (PCB).
3. The EK High Flow and EK-PSC type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber O-ring gaskets.
4. The use of quality, market proved corrosion inhibiting coolants is always strongly recommended for any liquid cooling system.

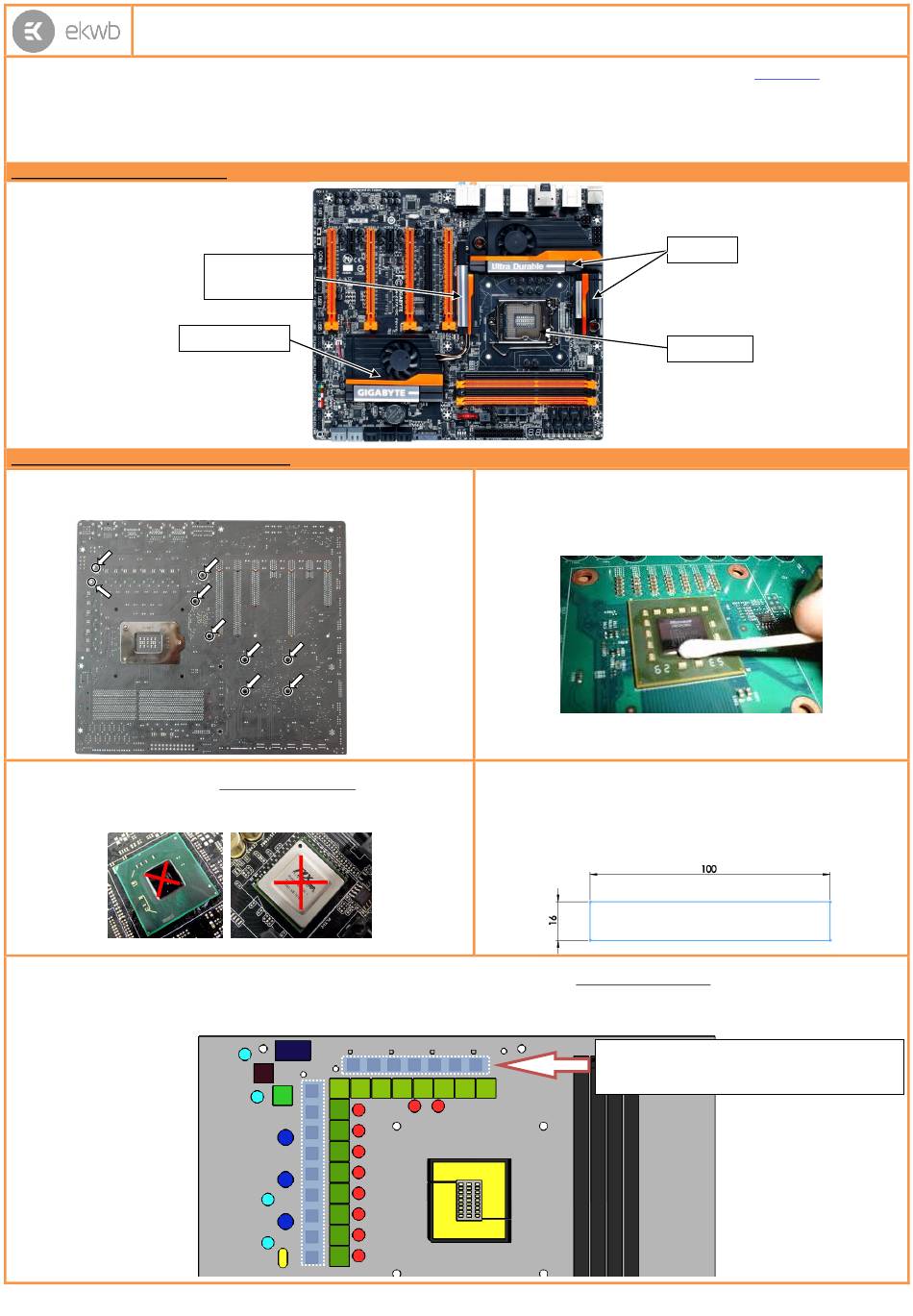

STEP 1: GENERAL INFORMATION Sample photo of EK-FB GA Z87X-OC Force motherboard
STEP 2: PREPARING YOUR MOTHERBOARD
1. REMOVING STOCK COOLER.
motherboard in order to remove the factory installed MOSFET/NB- as well as SB cooling
solution.
3. APPLYING THERMAL COMPOUND.
Z87 PCH PLX PEX 8747
(SB) and
example Arctic Cooling MX-2 ™, MX-4 ™ or GELID GC-Extreme ™. EKWB recommends to
apply the thermal grease in cross form for the best performance (see sample picture).
5. PLACING THERMAL PADS ON MOTHERBOARD.
FROM BOTH SIDES OF THE THERMAL PADS PRIOR TO INSTALLATION). EK recommends using small drops of electrically non-conductive (for example: Arctic Cooling MX-2
™, MX-4 ™ or GELID GC-Extreme ™) thermal grease on each phase regulator (that is being covered with thermal pad; see picture below) in order to even further improve the
thermal performance of the EK-FB GA Z87X-OC Force series water block.
All disclosures, notices and warranty conditions are being written on EKWB web page. Please check terms of use.
PLX PEX 8747
PCIe lane splitter
Intel Z87 PCH (SB)
Remove all encircled screws on the back of the
Apply thermal compound: lightly coat the
with electrically non-conductive thermal grease - for
Place the thermal pads you cut on a PCB as shown in the picture bellow (PLEASE REMOVE THE PROTECTIVE FOIL
2. CLEANING THE PCB.
Carefully detach the original stock cooler after removing
all screws securing it to the board. Wipe off the remains (by using non-abrasive
qtip
cloth or , as shown on sample photo) of the original thermal compound until the
components and circuit board are completely clean. EKWB recommends the use of
denatured alcohol for removing TIM leftovers.
Intel 4. CUTTING THERMAL PADS.
which are already pre-cut. Others have to be cut to smaller pieces in order to
cover all the VRM components such as MOSFETs and drivers. PLEASE REMOVE
THE PROTECTIVE FOIL FROM BOTH SIDES OF THE THERMAL PADS PRIOR TO
INSTALLATION.
Replacement thermal pad: Thermal PAD A 1,0 mm - (100 x 16 mm) [EAN: 3830046996626]
Place 1.0 mm thick thermal pads in larger strips over the
marked area and make sure all MOSFET chips are
covered.
www.ekwb.com
MOSFET
CPU socket
Your block comes with thermal pads, some of
