Installation and Assembly:

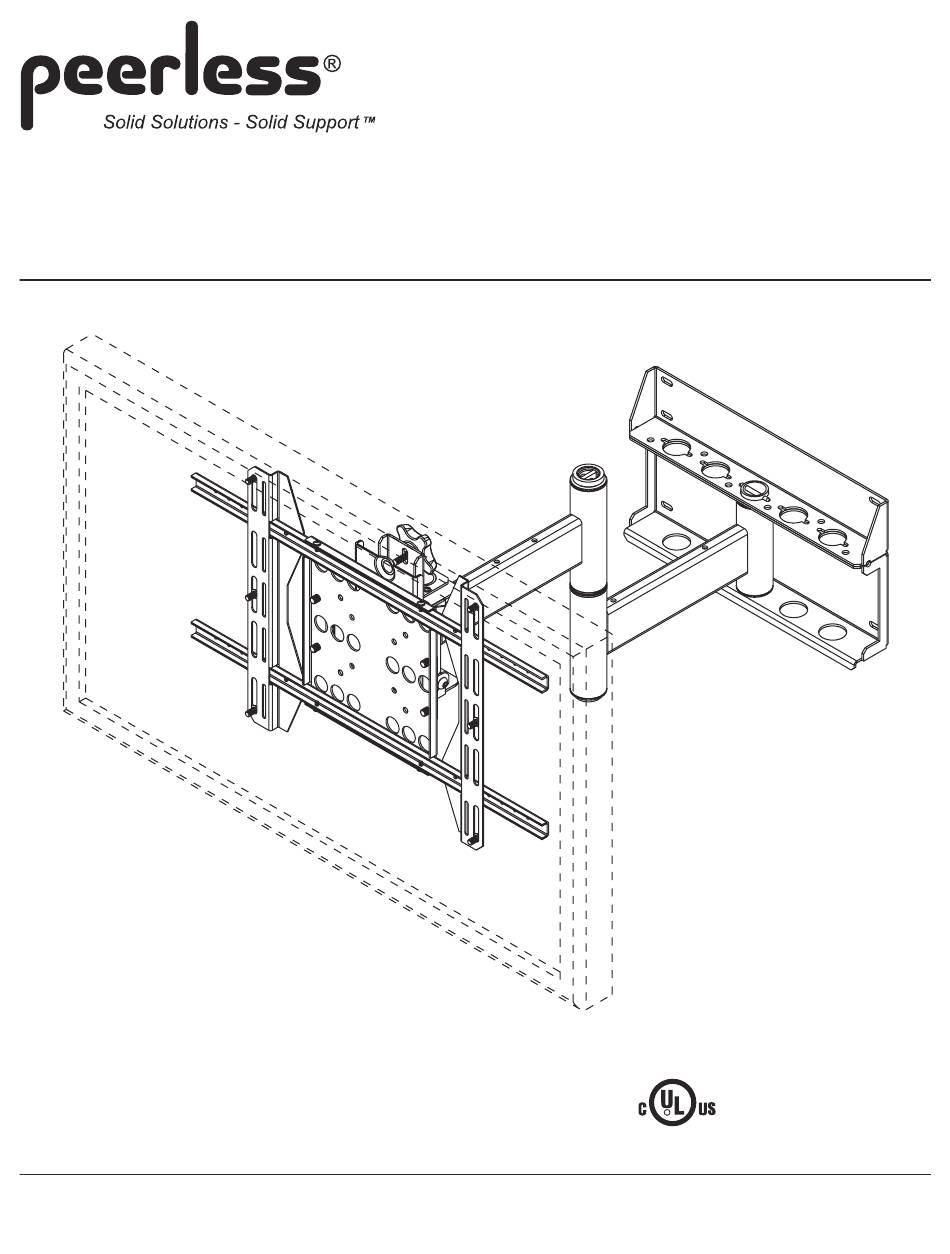

Articulating Swivel Arm for 32" - 60" Large Flat Panel Screens
Model: PLA1-UN7, PLA1-UN7S
Features:
• Universal design supports most 32" to 63" plasma and LCD screens
• One-touch adjustable tilt (5° back and 15° forward)
• Complete integrated security from the wall to the screen
• Up to 6" of horizontal adjustment when the screen is up
• Sleek, airy design complements today's flat panel technologies
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
This product is UL Listed. It must be
installed by a qualified professional
R
installer.
Max Load Capacity: 150 lb (68 kg)
ISSUED: 09-21-04 SHEET #: 201-9269-6 11-29-05
Advertisement
Table of Contents
Related Manuals for PEERLESS PLA1-UN7
Summary of Contents for PEERLESS PLA1-UN7
- Page 1 Installation and Assembly: Articulating Swivel Arm for 32" - 60" Large Flat Panel Screens Model: PLA1-UN7, PLA1-UN7S Features: • Universal design supports most 32" to 63" plasma and LCD screens • One-touch adjustable tilt (5° back and 15° forward) This product is UL Listed. It must be •...
-
Page 2: Table Of Contents
Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer service at 1-800-729-0307. -
Page 3: Parts List
Before you begin, make sure all parts shown are included with your product. Parts List PLA1-UN7 PLA1-UN7S Description Qty Part # Part # c-channel spacer 200-1388 200-4388 vertical bracket 200-1446 200-4446 adapter plate 200-1300 200-4300 c-channel 200-1331 200-4331 .34" x .75" x .25" spacer... - Page 4 Parts List PLA1-UN7 PLA1-UN7S Description Qty. Part # Part # BB wall bracket 200-1472 200-4472 CC rotation box 200-1434 200-4434 DD wall support arm axle 200-1052 200-1052 EE tilt pivot retainer assembly 200-1877 200-4877 swing arm assembly 200-0878 200-0879 GG pitch roll assembly...
-
Page 5: Installation To Double Wood Stud Wall
Attach adhesive bumper strip (PP) to wall bracket (BB). Next attach one adhesive bumper strip (QQ) to each side of swing arm (FF). Note: Be sure swing arm is in correct position as shown with plastic cap at top. WARNING •... -
Page 6: Installation To Solid Concrete Or Cinder Block
WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"... -
Page 7: Installing Swing Arm To Wall Bracket And Assembling Components To Arm
Installing Swing Arm to Wall Bracket and Assembling Components to Arm WARNING • Failure to correctly mount swing arm with plastic cap at top as shown in detail 4 will result in product failure. • Improperly installed snap ring will result in product failure. •... -
Page 8: Assembling Adapter Bracket
Use the tables on accompanying screen compatibility chart to assemble the adapter bracket. First, find your screen brand and model in the tables on accompanying screen compatibility chart. Find the configuration letter which corresponds to your screen. This letter will be used to determine the proper method of assembly for the adapter bracket. Continue to the table on the last page of accompanying screen compatibility chart. - Page 9 Slide vertical brackets (B) onto c-channels (D) as shown below. Refer to the table on accompanying screen compatibility chart to determine the proper assembly of the adapter bracket. For standard bracket mounting, see figure 3. For reverse bracket mounting, see figure 4. Example: For a Sony model KDL-42XBR950 42"...
- Page 10 Place the screen on the floor face down. Set a cloth on the floor to prevent scratching the screen. If the screen has knobs on the back, remove them. Place adapter bracket on the center of the screen. Slide the vertical brackets (B) along the c-channels (D) of the adapter bracket until the slots on the back of the vertical brackets are aligned to the holes on the back of the screen.
-
Page 11: Installing Adapter Bracket To Screen
Installing Adapter Bracket to Screen Slide the vertical brackets (B) along the c-channels (D) of the adapter bracket until the slots on the back of the vertical brackets are aligned to the holes on the back of the screen. Fully tighten the four 10-32 x 3/8" screws (M) which hold the vertical brackets to the c-channels. -
Page 12: Installing Pitch Roll Assembly To Adapter Bracket
Installing Pitch Roll Assembly to Adapter Bracket Insert and tape carriage bolt (II) into top hole of pitch roll assembly (GG). Attach pitch roll assembly to adapter plate (C) with four M10 socket screws (JJ). Tighten M10 socket screws with 6 mm allen wrench (Y). -
Page 13: Installing Screen To Articulating Swivel Mount
Installing Screen to Articulating Swivel Mount WARNING • Always use an assistant or mechanical lifting equip- ment to safely lift and position the plasma television. Insert two M10 screws (JJ) into rotation box (CC) as shown. Leave approximately 1/4" of exposed thread. -
Page 14: Final Adjustment To Screen
14 of 14 ISSUED: 09-21-04 SHEET #: 201-9269-6 11-29-05 © 2005 Peerless Industries, Inc. All rights reserved. Peerless is a registered trademark of Peerless Industries, Inc. All other brand and product names are trademarks or registered trademarks of their respective owners.
