Installation and Assembly - Universal Adapter
Bracket for 32" - 60" Flat Panel Screens
IMPORTANT! Read instruction sheet before you start installation and assembly.
Before you begin, make sure all parts shown are included with your product.

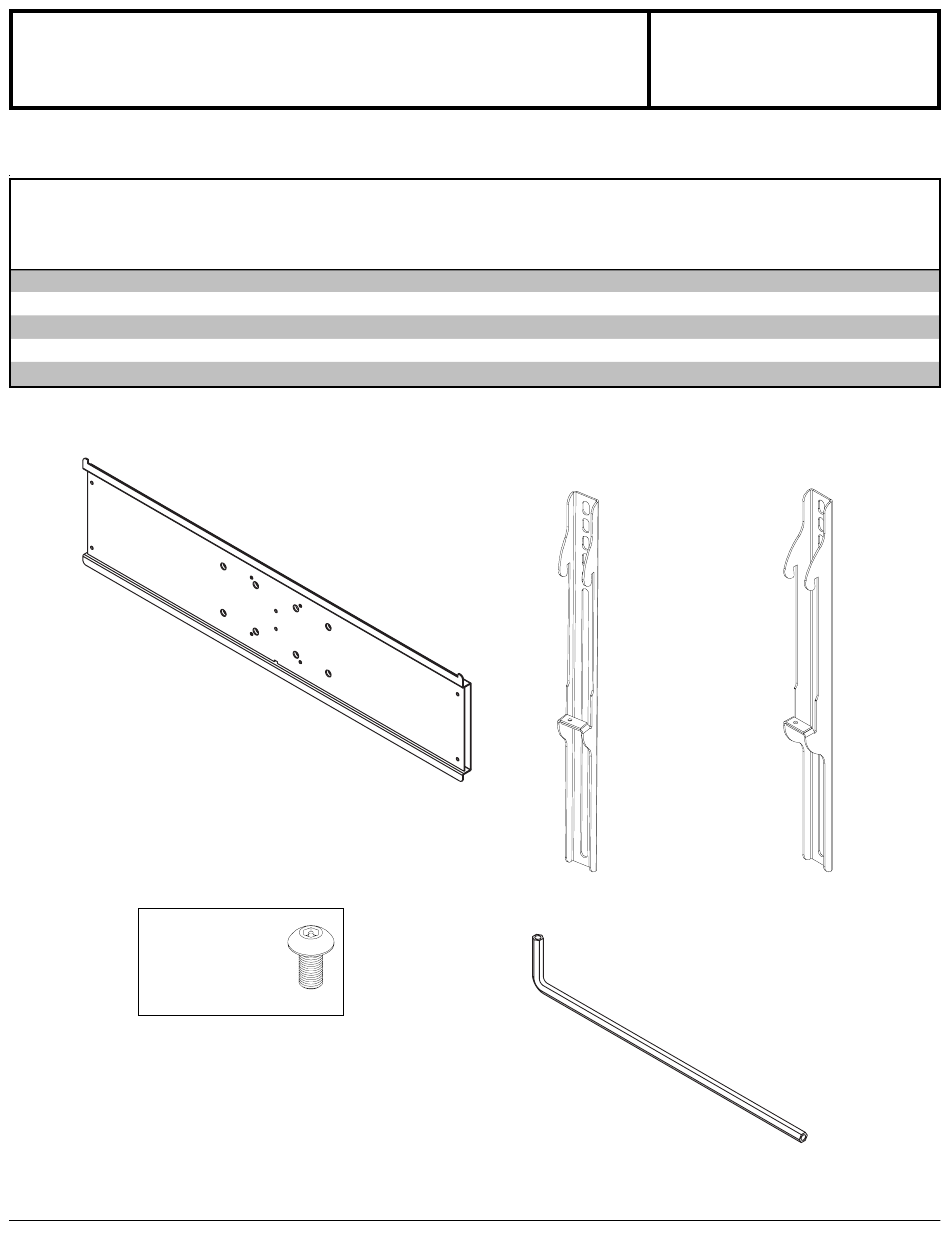

Parts List
Description
AA adapter bracket
BB shallow adapter bracket
CC deep adapter bracket
DD allen wrench
EE M5 x 10mm screw
AA
Used with specific
mounts only
EE
PLP-UNL
PLP-UNL-S
Qty Part #
Part #
1
201-1110
201-4110
2
200-0756
200-0757
2
200-0752
200-0753
1
560-9646
560-9646
4
520-1063
520-1063
BB
DD
1 of 4
Models: PLP UNL, PLP UNL-S,
PLP UNLP, PLP UNLP-S
PLP-UNLP
Part #
201-1110
200-0754
200-0750
560-0072
520-9250
CC
ISSUED: 11-11-05 SHEET #: 202-9060-3 12-06-06
PLP-UNLP-S
Part #
201-4110
200-0755
200-0751
560-0072
520-9250
