Boost to ground evaluation kit
TLD5099EP B2G
About this document
Product description
The TLD5099EP is an AEC qualified DC/DC boost controller, especially designed to drive LEDs.
•
Built in diagnosis and protection features
•
Pulse width modulator to implement a dimming function with reduced color shifting
•
Spread spectrum modulator to improve the EMI performance
Scope and purpose
Scope of this user manual is to provide to the audience instructions on usage of TLD5099EP boost to ground
evaluation board.
Intended audience
This document is intended for engineers who need to perform measurements and check performances with
TLD5099EP boost to ground evaluation board.
Table of contents
About this document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2
Quick start procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3
Current adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
4
Power derating (Battery dependent current) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
5
Embedded PWM engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6
Cold crank survival circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7
Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
8
PCB layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
9
Bill of material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
10
Efficiency measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
11
Maximizing efficiency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
12
Minimizing EMI emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
13
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
User Manual
www.infineon.com
Please read the Important Notice and Warnings at the end of this document
2020-01-29
Advertisement
Table of Contents
Related Manuals for Infineon Technologies TLD5099EP B2G
Summary of Contents for Infineon Technologies TLD5099EP B2G
-
Page 1: Table Of Contents
User Manual Boost to ground evaluation kit TLD5099EP B2G About this document Product description The TLD5099EP is an AEC qualified DC/DC boost controller, especially designed to drive LEDs. • Built in diagnosis and protection features • Pulse width modulator to implement a dimming function with reduced color shifting •... -
Page 2: Description
Boost to ground evaluation kit TLD5099EP B2G 1 Description Description Evaluation board for high power LED application with TLD5099EP product in boost to ground topology. Default configuration of the board is boost to ground topology without any additional features enabled. In this configuration, it can deliver up to 13 W to the load with an efficiency above 91%. - Page 3 Boost to ground evaluation kit TLD5099EP B2G 1 Description Figure 2 Simplified schematic Table 1 Performance summary Parameter Conditions Value Input supply voltage Jumper X9 in position 2-3 (CCSC deactivated) 8 V to 27 V Parameter degradation below 6.5 V Down to 6.5 V for less than 2 s...
-
Page 4: Quick Start Procedure
Boost to ground evaluation kit TLD5099EP B2G 2 Quick start procedure Quick start procedure The default configuration of the board has all additional features disabled. Jumpers are populated as follows: Table 2 Jumper population Jumper number Condition Meaning Close 2-3... -
Page 5: Current Adjustment
Boost to ground evaluation kit TLD5099EP B2G 3 Current adjustment Current adjustment Output current adjustment can be performed by changing the value of trimmer R15 with a screwdriver, when X10 is closed in position 1-2 and X12 is closed. Output current can vary from 0 to 100% of the maximum output current (in this evaluation board from 0 to 350 mA). -
Page 6: Power Derating (Battery Dependent Current)
Boost to ground evaluation kit TLD5099EP B2G 4 Power derating (Battery dependent current) Power derating (Battery dependent current) Power derating acts by reducing V (and thus the output current) when the battery voltage drops below 8 V. It works better when R15 is trimmed to its maximum value, otherwise a different derating profile is applied. If a different derating profile is needed, R14 has to be changed accordingly, in order to have 1.6 V on pin SET when... -
Page 7: Embedded Pwm Engine
Boost to ground evaluation kit TLD5099EP B2G 5 Embedded PWM engine Embedded PWM engine Embedded PWM engine provides an internal PWM signal without any external dimming signal required. It is enabled when X5 is closed in position 2-3. If X6 is open, EN/PWMI/PWMA pin is biased at 5 V and then the duty cycle is 100%;... -
Page 8: Cold Crank Survival Circuit
Boost to ground evaluation kit TLD5099EP B2G 6 Cold crank survival circuit Cold crank survival circuit This feature helps the system to survive LV124 test E11 “severe test pulse”, when input voltage drops below 4.5 V that is the minimum input voltage for the TLD5099EP. This circuit feeds back the device with the output voltage when the input voltage drops. -
Page 9: Schematics
Boost to ground evaluation kit TLD5099EP B2G 7 Schematics Schematics Figure 8 Input filter User Manual 2020-01-29... - Page 10 Boost to ground evaluation kit TLD5099EP B2G 7 Schematics Figure 9 Main power User Manual 2020-01-29...
- Page 11 Boost to ground evaluation kit TLD5099EP B2G 7 Schematics 7, 8 5, 6 Figure 10 Output stage User Manual 2020-01-29...
-
Page 12: Pcb Layout

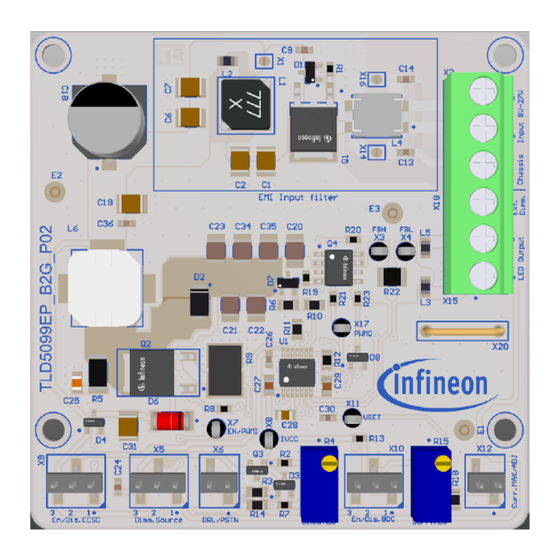

Boost to ground evaluation kit TLD5099EP B2G 8 PCB layout PCB layout Figure 11 PCB layout top view Figure 12 PCB layout bottom view User Manual 2020-01-29... -
Page 13: Bill Of Material
Boost to ground evaluation kit TLD5099EP B2G 9 Bill of material Bill of material Table 6 Bill of material Designator Value Manufacturer Manufacturer order number C1, C2, C6, C7, C19, C31 10uF muRata GCM32EC71H106KA03 C9, C26, C36 100nF 06035C104K4Z2A C13, C14... - Page 14 560Ω Vishay CRCW0603560RFK 820mΩ Panasonic ERJ14BQFR82U TLD5099EP Infineon Technologies TLD5099EP X1, X14, X16 Solder jumper 2 pins Infineon Technologies Solder Jumper 2 Pins X2, X15, X18 1935776 Phoenix Contact 1935776 X3, X4, X7, X8, X11, X17, 5001 Keystone 5001 X5, X9, X10...
-
Page 15: Efficiency Measurements
Boost to ground evaluation kit TLD5099EP B2G 10 Efficiency measurements Efficiency measurements Figure 13 Efficiency vs. input voltage This efficiency performance has been obtained with: Table 7 Parameters influencing efficiency Output load: Series of 12 white standard LED with Vj = 3 V kept cooled with forced air... -
Page 16: Maximizing Efficiency
Boost to ground evaluation kit TLD5099EP B2G 11 Maximizing efficiency Maximizing efficiency This evaluation board has been designed to reach a fair compromise between efficiency performance and EMI emissions compliance. Nevertheless, if the maximum efficiency is needed, the following actions should be considered:... -
Page 17: Minimizing Emi Emissions
Boost to ground evaluation kit TLD5099EP B2G 12 Minimizing EMI emissions Minimizing EMI emissions This evaluation board has been designed to reach a fair compromise between efficiency performance and EMI emissions compliance. Furthermore, this evaluation board can fulfill the class V of the CISPR25 in conducted emissions from 150 kHz to 108 MHz. -
Page 18: Revision History
Boost to ground evaluation kit TLD5099EP B2G 13 Revision history Revision history Table 8 Revision history Document version Date of release Description of changes Rev. 1.00 2020-01-29 First release related to evalboard S01_P01. User Manual 2020-01-29... -
Page 19: Disclaimer
Infineon Technologies, All Rights Reserved. given herein in the real application. Infineon Infineon Technologies’ products may not be used in Technologies hereby disclaims any and all warranties any applications where a failure of the product or and liabilities of any kind (including without limitation...
