H-Bridge Kit 2Go - Board User Manual
H-Bridge Kit 2Go
Evaluation Board for DC Motor Control with the IFX9201
About this document
Scope and purpose
This board user manual provides a basic introduction to the hardware of the H-Bridge Kit 2Go.

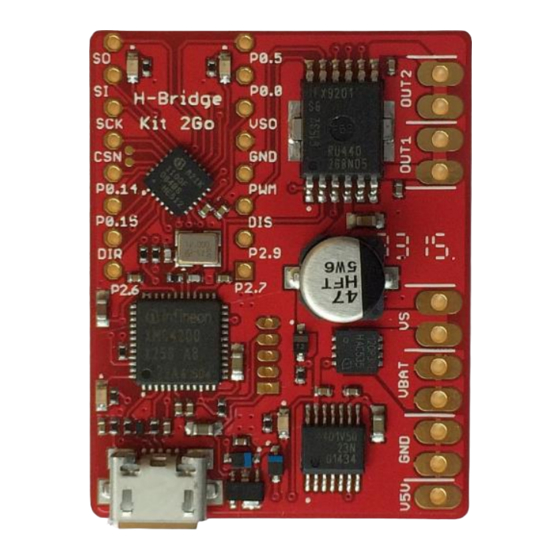

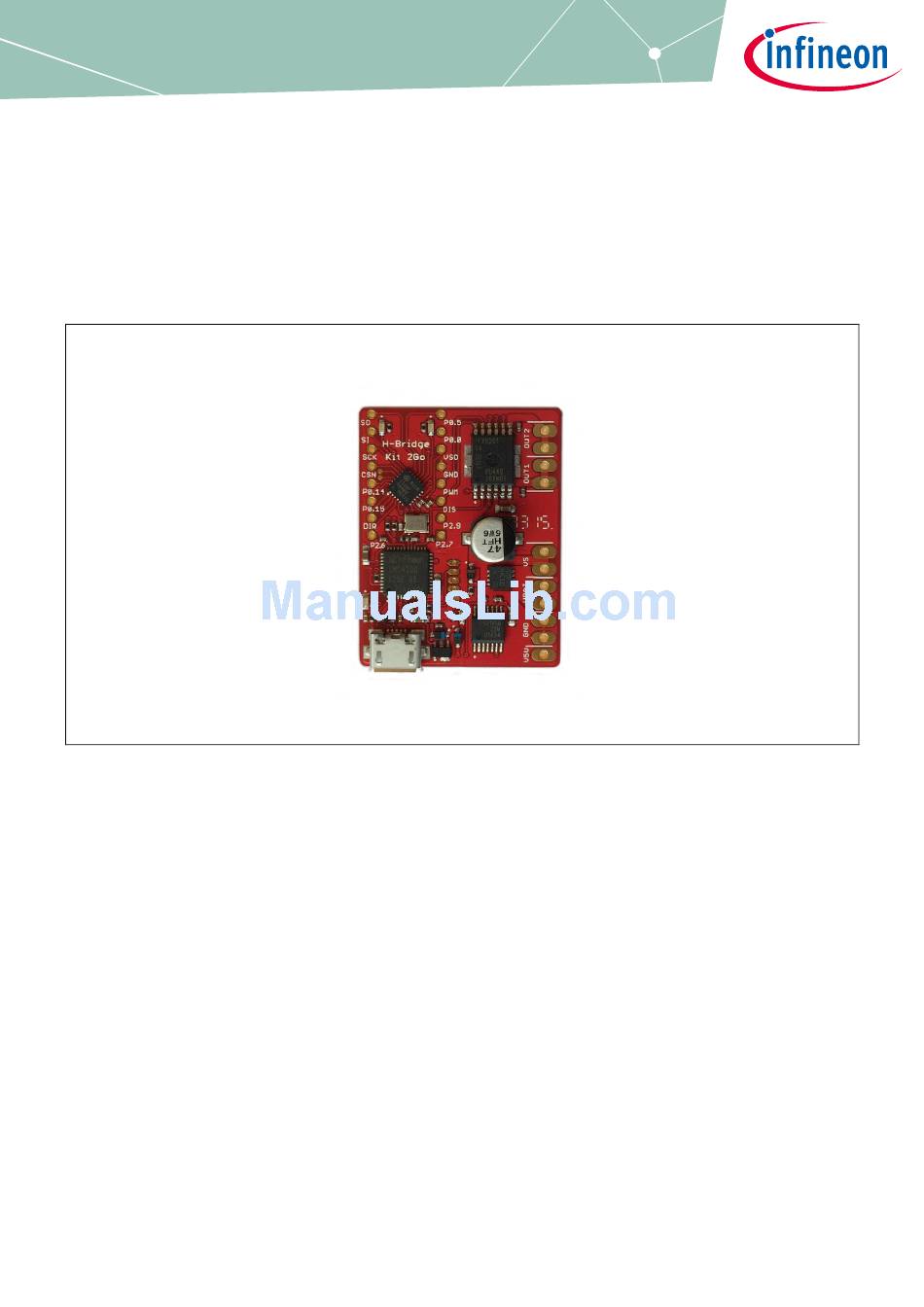

The H-Bridge Kit 2Go is a complete low cost system solution for driving small brushed DC motors. It contains a
32bit microcontroller including debug interface, an on board 5V voltage regulator, reverse polarity protection
for the power supply and an integrated H-Bridge capable of driving up to 6A peak, the IFX9201SG
Intended audience
This board user manual is intended for anyone interested in evaluating DC motor control with the IFX9201.
Board User Manual
Please read the Important Notice and Warnings at the end of this document
Revision 1.1
www.infineon.com
2015-11-24
Advertisement
Table of Contents
Related Manuals for Infineon Technologies H-Bridge Kit 2Go
Summary of Contents for Infineon Technologies H-Bridge Kit 2Go
-
Page 1: About This Document
This board user manual provides a basic introduction to the hardware of the H-Bridge Kit 2Go. The H-Bridge Kit 2Go is a complete low cost system solution for driving small brushed DC motors. It contains a 32bit microcontroller including debug interface, an on board 5V voltage regulator, reverse polarity protection... -
Page 2: Table Of Contents
H-Bridge Kit 2Go Evaluation Board for DC Motor Control with the IFX9201 Table of Contents Table of Contents About this document ............................. 1 Table of Contents ..............................2 Overview ............................3 Getting Started ........................... 4 Power Supply............................4 Selecting a DC motor ..........................4 Connecting the Kit ........................... -
Page 3: Overview
Evaluation Board for DC Motor Control with the IFX9201 Overview Overview The H-Bridge Kit 2Go is based on the Infineon microcontroller kit XMC 2Go. For any information on the XMC 2Go as well as for downloading the software drivers and tools please visit http://www.infineon.com/xmc2go... -
Page 4: Getting Started
Power Supply For providing the power to drive a DC motor the H-Bridge Kit 2Go needs an external power supply connected to VBAT. To protect the board from accidentialy reverted supply voltages the H-Bridge Kit 2Go is equipped with a reverse polarity protection circuit As with the XMC 2Go the microcontroller can be supplied by the PC via the Micro USB port. -
Page 5: Software
H-Bridge Kit 2Go Evaluation Board for DC Motor Control with the IFX9201 Getting Started Software The kit comes pre-programmed with a simple example routine that applies a 1 kHz PWM signal to the motor ramps the speed of the motor up and down by increasing and decreasing the PWM duty cycle. When reaching a duty cycle of 0% it reverts the rotation direction of the motor and starts again with ramping the motor speed up and down. -
Page 6: Hardware Description
H-Bridge Kit 2Go Evaluation Board for DC Motor Control with the IFX9201 Hardware Description Hardware Description Schematics Figure 4 Power Connectors Figure 5 Reverse Polarity Protection Board User Manual Revision 1.1 2015-11-24... - Page 7 H-Bridge Kit 2Go Evaluation Board for DC Motor Control with the IFX9201 Hardware Description Figure 6 5V Regulator Figure 7 IFX9201 and Peripherals Board User Manual Revision 1.1 2015-11-24...
- Page 8 H-Bridge Kit 2Go Evaluation Board for DC Motor Control with the IFX9201 Hardware Description Figure 8 XMC1100 and Pin Header Board User Manual Revision 1.1 2015-11-24...
- Page 9 H-Bridge Kit 2Go Evaluation Board for DC Motor Control with the IFX9201 Hardware Description Figure 9 3.3V Regulator and User LEDs Figure 10 On Board Debugger including UART to USB Bridge Board User Manual Revision 1.1 2015-11-24...
-
Page 10: Layout
H-Bridge Kit 2Go Evaluation Board for DC Motor Control with the IFX9201 Hardware Description Layout Figure 11 Component Placement Figure 12 Top Layer Board User Manual Revision 1.1 2015-11-24... - Page 11 H-Bridge Kit 2Go Evaluation Board for DC Motor Control with the IFX9201 Hardware Description Figure 13 Bottom Layer Board User Manual Revision 1.1 2015-11-24...
- Page 12 H-Bridge Kit 2Go - Board User Manual injury. product information given in this document with respect to such application.
