G
D
ENERAL
ESCRIPTION
1.4 Getting Help
Our Customer Service Group is available in North America from 7:30 a.m. to 8:00 p.m.
(Eastern Standard Time), Monday to Friday.
EXFO Electro-Optical Engineering
(Corporate Headquarters)
465 Godin Avenue
Vanier QC G1M 3G7
Canada
EXFO Europe
Centre d'Affaires Les Metz
100, rue Albert Calmette
78353 Jouy-en-Josas, France
2
G
ENERAL

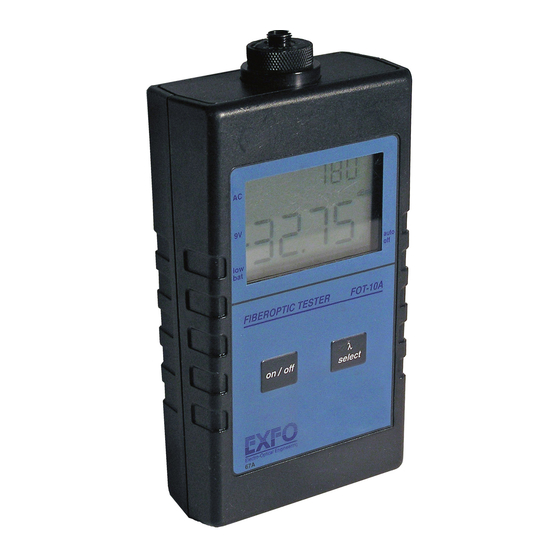

The FOT measures optical power (FOT-10A, FOT-20A, and FOT-30A) and loss
(FOT-20A and FOT-30A) at 5 precalibrated wavelengths in multimode and
singlemode fibers. A 2 kHz signal detection feature is also included for fiber
identification. The FOT-30A can be configured with a single- or dual-wavelength LED
or laser source.
The FOT is powered by the 9 V alkaline battery or the AC adapter/charger.

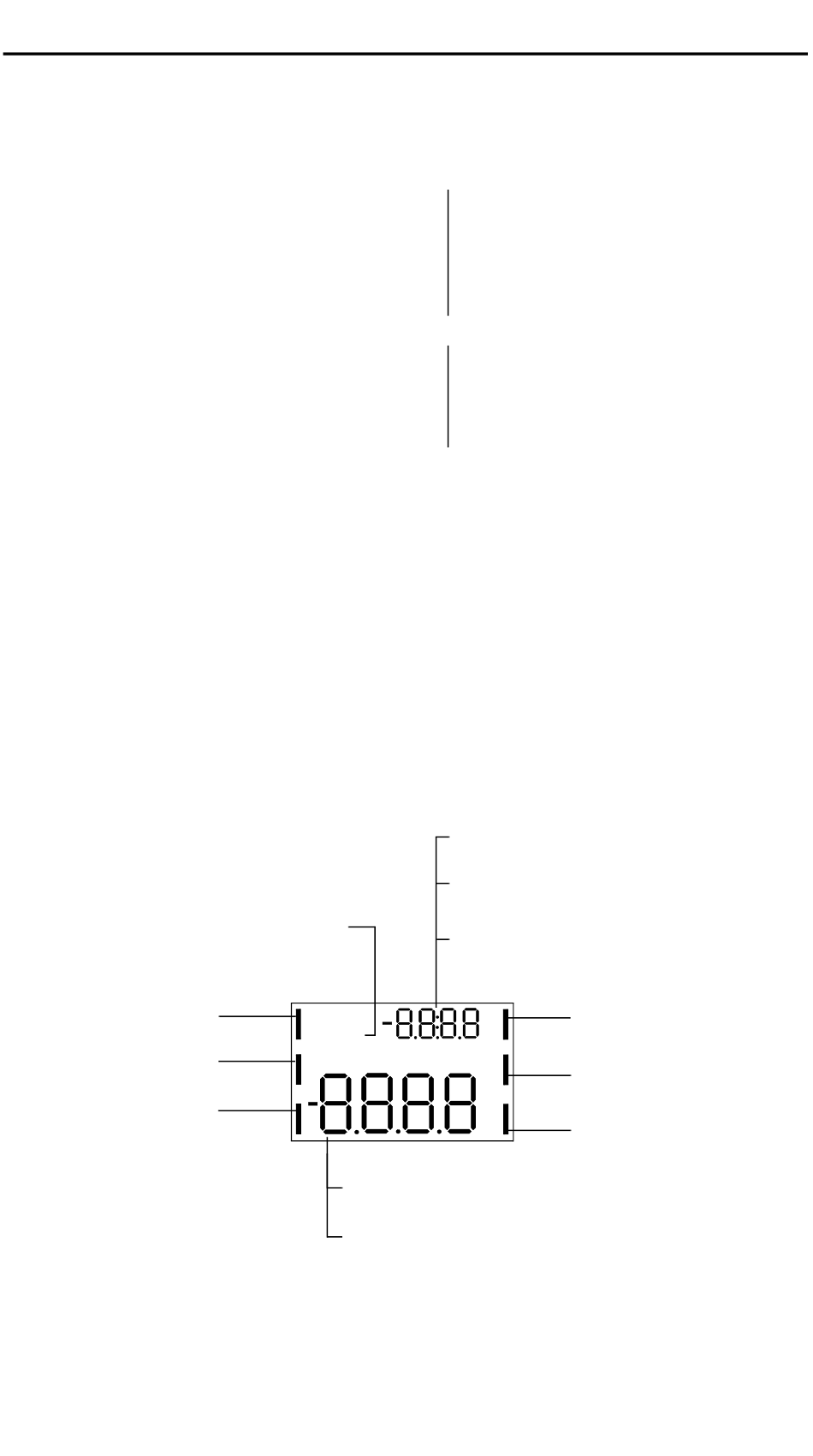

2.1 Display
Source wavelength (FOT-30A)
AC adapter/charger
operation
9 V battery operation
Low battery
1.
Pre-calibrated wavelengths depend on detector type (Si: 650, 780, 820, 850, and 910 nm;
Ge/GeX: 780, 850, 1300, 1310, and 1550 nm).
D
ESCRIPTION
SOURCE
AC
850
9V
low
bat
1 800 663-3936 (USA & Canada)
Tel.: (418) 683-0211
Fax: (418) 683-2170
support@exfo.com
www.exfo.com
Tel.: 33-1 34 63 00 20
Fax: 33-1 34 65 90 93
Power meter wavelength in nm
2 kHz signal detection
Reference value in dBm
(FOT-20A and FOT-30A)
METER
nm
Hz
1300
1310
dBm
1550
dBm
mW
µ
W
nW
Absolute power in dBm (or W in FOT-20 and FOT-30A)
Relative power in dB (FOT-20 and FOT-30A)
Continuous wave (CW)
output signal activated
CW
(FOT-30A)
2 kHz output signal
2kHz
activated (FOT-30A)
auto
off
Auto-off function activated
2
1
Advertisement
Related Manuals for EXFO FOT-10A
Summary of Contents for EXFO FOT-10A
- Page 1 78353 Jouy-en-Josas, France ENERAL ESCRIPTION The FOT measures optical power (FOT-10A, FOT-20A, and FOT-30A) and loss (FOT-20A and FOT-30A) at 5 precalibrated wavelengths in multimode and singlemode fibers. A 2 kHz signal detection feature is also included for fiber identification. The FOT-30A can be configured with a single- or dual-wavelength LED or laser source.
- Page 2 (dB) mode Initiates calibration Accesses absolute mode, and toggles between dBm and W 2.3 Connectors Detector port Source port (FOT-30A) AC adapter/charger input Note: Two source ports can be provided on a dual-wavelength FOT-30A (option). FOT-10A, FOT-20A, & FOT-30A...
-
Page 3: Fiber Identification
PERATION PERATION 3.1 Deactivating the Auto-Off Function Note: At power-up, the FOT automatically performs a self-test before the measurement mode is displayed. When the FOT is battery powered, it is automatically in auto-off mode (unit powers off after 10 minutes of inactivity). To deactivate the auto-off function, Power off the FOT. - Page 4 The reference value just stored applies only to measurements taken at the current wavelength. If you are using a dual-wavelength source, select the second wavelength and repeat steps 4 to 7. FOT-10A, FOT-20A, & FOT-30A...
- Page 5 Connect the reference test jumpers to the fiber under test as shown below. Test jumper Test jumper Fiber under test EXFO EXFO Light source Power on the light source and activate the first wavelength. Press d B m / W to select absolute mode.
