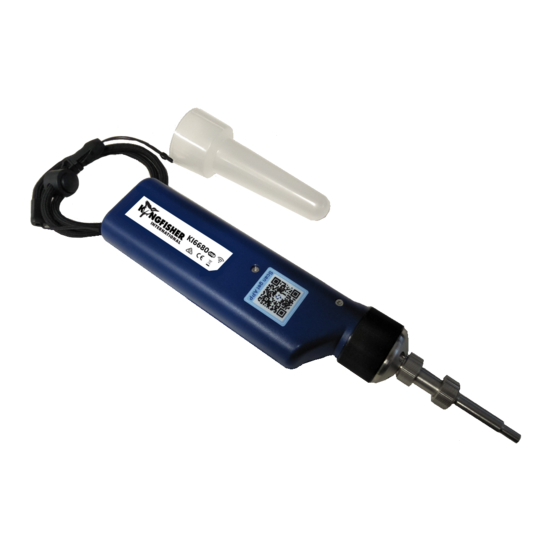

- Page 1 KI6680 Fiber Inspection Probe User Manual Scan QR code to download KI6680 Img/Scope Viewer software from Google Play Revision 7 Date: 05 May 2021 Page - 1 - of-15...
-
Page 2: Table Of Contents
4.1. Download Software ............................- 6 - 4.2. Connect Instrument to Smart Devices ......................- 6 - 4.3. Starting KI6680 Img Viewer Imaging Software................... - 6 - 4.4. Selecting an IEC61300-3-35 Visual Requirement for Analysis ..............- 7 - 4.5. Setting Up File Names to Save Analysis Image, Data and Report ............- 8 - 4.6. -
Page 3: Introduction
1. Introduction The KI6880 Mini Fiber Inspection Probe, with support of its imaging software KI6680 Scope Viewer, makes a handy tool for analysing optic connector end face as per IEC61300-3-35 requirements. The software which can be connected to the probe via WiFi or USB, works on PC(Window) and Android smart devices. -
Page 4: Specification
LED #1 3.2. Replacing instrument battery The instrument is powered by a specific built-in Lithium battery which could be replaced as shown below. Contact Kingfisher for replacement battery. ➊ Remove 2 screws, using a special screwdriver, to open battery door ➋... -
Page 5: Installing Inspection Adaptor
3.3. Installing Inspection Adaptor Mount inspection adaptor onto instrument’s adaptor head, make sure that pin on adaptor head is aligned into groove of adaptor, tighten locknut of adaptor head by turning it in the direction shown in diagram below. Adaptor head Turn locknut to tighten Adaptor... -
Page 6: Torch Led
Name: EasyGet_x x represents the serial number of instrument. Password: 12345678 4.3. Starting KI6680 Img/Scope Viewer Imaging Software To start the software, tab icon on your Smart Device. If prompted with the message, “The device is not connected”, check that WiFi mode on instrument is enabled (indicated by the green LED which should have lighted up continuously), and that WiFi connection on your smart device is enabled. -
Page 7: Selecting An Iec61300-3-35 Visual Requirement For Analysis
Tab this Home Display Main Menu Tab to view image horizontally (200x To list the saved image magnification) or files. Tab on a file on the vertically (400x list to open it. magnification). To list the saved analysis data. Tab on a file on the Display area for images list to open it. -
Page 8: Setting Up File Names To Save Analysis Image, Data And Report
4.5. Setting Up File Names to Save Analysis Image, Data and Report Enter the appropriate value/name onto the various fields of the software as per step thru below. ➊ ➒ ➊ Manually enter text, number, or a combination of text & number in the ID field e.g. the ID of the optical fiber. -
Page 9: Enabling Pass/Fail Analysis Feature
➍ Enter text, number, or a combination of text & number here, e.g., “Mulgrave”. Note: This entry will be used as the name of file for analysis data saving. ➎&➏ Tab on these to select the proper image, data and report saving option. Note: no image, data or report will be saved after an analysis if NotSave option is selected. -
Page 10: Start Pass/Fail Analysis
➊ Tab this on Main Menu ➋ Select “General Settings”. ➌ Enable “Measure”. 4.7. Start Pass/fail Analysis Make sure that instrument is connected to the software. Insert the optical connector onto instrument’s adaptor, turn Focus Ring on instrument clockwise or anticlockwise, until a sharp connector end face image is seen at the centre of the software’s Home Display. -
Page 11: Working With Software On Pc (Via Wifi Or Usb Connection)
Note: The PC software version does not support pass/fail analysis. 5.1. Download Software See section 2.3 for Software Compatibility on PC. Download from Kingfisher website (kingfisherfiber.com), Imaging Software – Window (Fiber Endface Inspectr WiFi) onto your PC. Upon unzipping the downloaded file, select Fiber Endface Inspector Wifi V1.xxxxxx.exe to Install the software as per the prompted instructions. -
Page 12: Imaging Software Operation
If prompted with the message, “Device connect failed”, check that WiFi mode of instrument is enabled (indicated by the green LED, which should have lighted up continuously), and the WiFi connection on PC is enabled, and the correct connection option on the software i.e., “WiFi” has been selected. You may need to re-establish the connection. -
Page 13: To Captured And Save Images On Pc
Type in preferred file name here to save “Increase” box: checked: A preferred text filename will be appended with number captured image. Note: If no file name is typed in here, images will which auto increment after each image saving operation. be saved in the default file names which auto unchecked: Content of the preferred filename will be overwritten increment after each image saving operation. -
Page 14: Service And Support
This manual is given in good faith for the benefit of the user. It cannot be used as the basis for claims against Kingfisher International or its representatives. This product is guaranteed against defective components and workmanship for 1 years from delivery, unless stated in the purchase contract. This warranty excludes connector adaptors or incorrect use. -
Page 15: Optional Interchangeable Inspection Adaptors
Option, Mini Insp Probe Adaptor, FC Female, APC OPT634A Option, Mini Insp Probe Adaptor, MPO, PC/APC Interchangeable OPT635 Please enquire for other PC or APC adaptor types KINGFISHER INTERNATIONAL PTY LTD 720 Springvale Road, Mulgrave, Victoria 3170 Australia. T (61) 3-8544-1700 F (61) 3-8544-1793 E sales@kingfisher.com.au http://www.kingfisherfiber.com...
