Kingfisher KI 6354 Series User Manual

KI 6354 Series

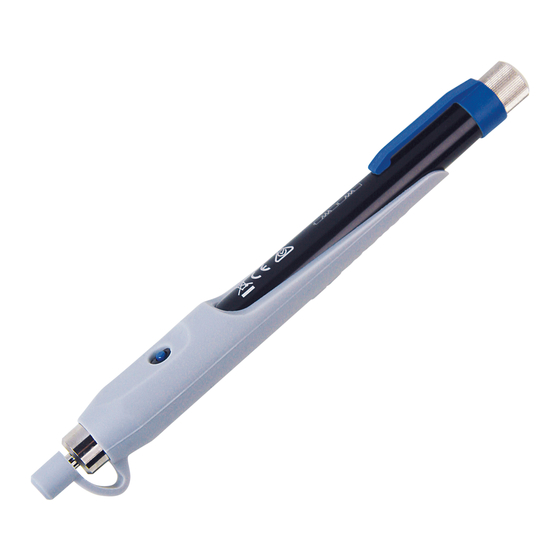

Visible Fault Locator
Basic information on operation and storage:

Safety:

The KI6354 emits visible laser light in the wavelength range of 650-660 nm.
The maximum optical output power is less than 1 mW so that the device
meets laser Class 1(IEC 60825-2:2011) power specifications. During
normal operation, the laser light is not dangerous, but we still recommend
that you do not look directly into the laser output or into the end of a fiber
connected to the fault locator.

Application:

The KI6354 is suitable for performing continuity checks and locating faults
on singlemode and multimode optical fibers and components. A range of
more than 5 km can be achieved in certain cases. A single universal adapter
provides matching to all standard 2.5 mm optical fiber connector systems.
The battery lifetime in blink mode is approx 40 hours for alkaline batteries.

Operation:

The instrument can be switched on or off by depressing the black button
near the optical adapter for 2 seconds. With the same button the operator
can select between a continuous light mode and a flash mode with approx
3 Hz. The KI6354 is equipped with a dust cap. Remove the cap when using
the device. Replace the cap after use to protect the optical adapter. The
optical connector must be inserted all the way into the adapter.

Changing batteries:

To open the instrument, unscrew the pushbutton. Remove the batteries
and replace with new ones (2x 1.5v-AAA) then reattach the pushbutton.
Revision 3 Page 1/2
