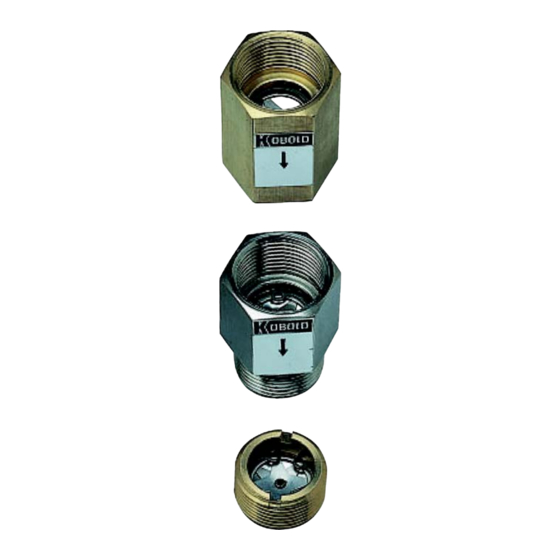

Kobold REG Operating Instructions Manual

Kobold REG Operating Instructions Manual

Flow restrictors

Advertisement

Quick Links

Operating Instructions
for
Flow Restrictors
Model: REG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REG and is the answer not in the manual?

Questions and answers

Summary of Contents for Kobold REG

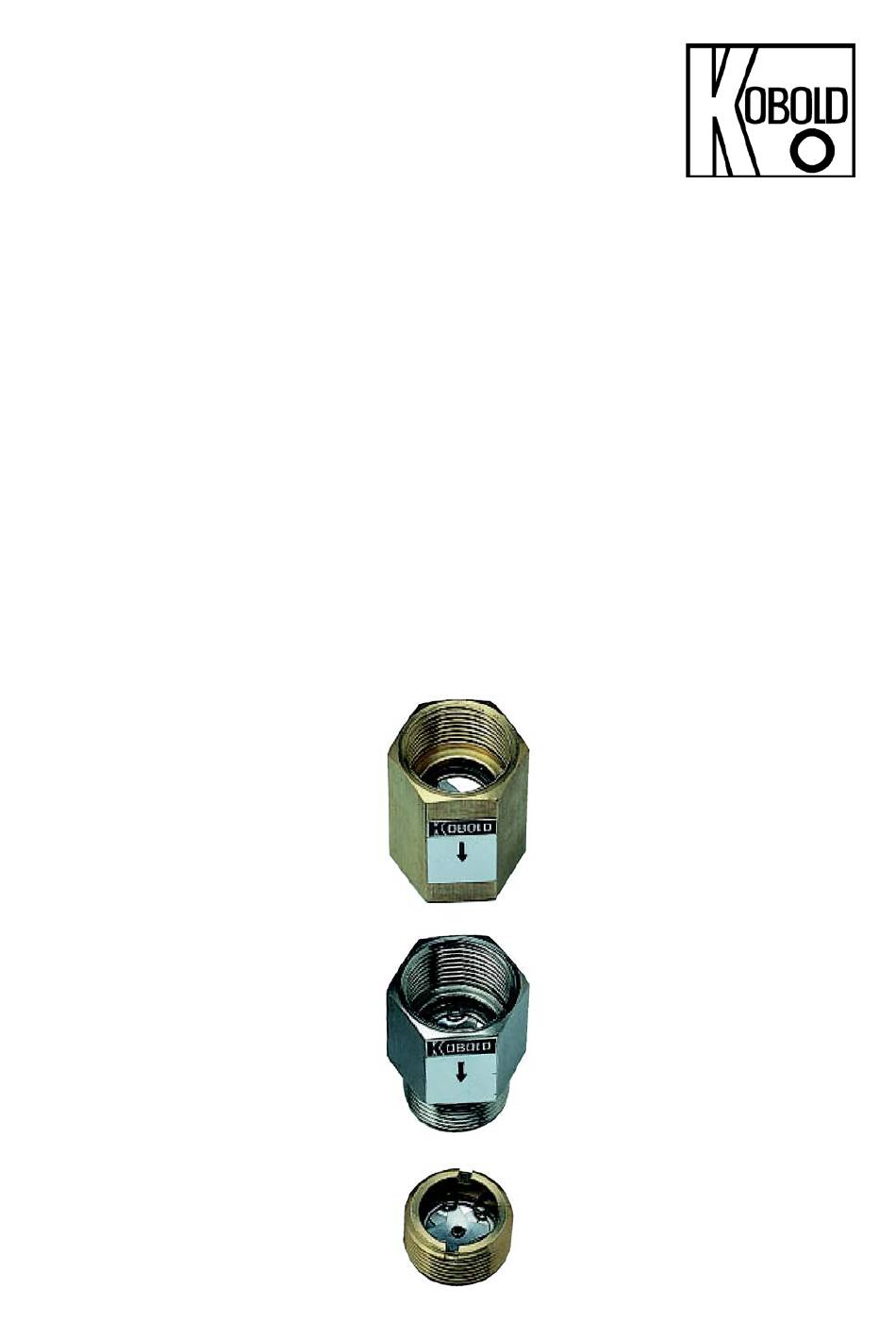

  • Page 1 Operating Instructions Flow Restrictors Model: REG...
  • Page 2: Table Of Contents

    9. Dimensions and Order Codes ............... 6 10. Disposal ...................... 14 11. EU Declaration of Conformance ..............15 12. UK Declaration of Conformity ..............16 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49 (0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com...
  • Page 3: Note

    REG 4. Regulation Use Any use of the Flow Restrictor, model: REG, which exceeds the manufacturers specification may invalidate its warranty. Therefore, any resulting damage is not the responsibility of the manufacturer. The user assumes all risk for such usage.
  • Page 4: Operating Principle

    However, if a significant diameter reduction is necessary directly before or after the restrictor, an inlet and outlet section of ∼ 3x DN must be set up. Note the direction of flow: Depending on the design, the REG are marked with a direction arrow or a label e.g. "IN".
  • Page 5: Technical Information

    G 1 ½, G 2, G 2 ¼, G 2 ½ Flange DN 20/25/32/40/50/65/80/100 Service temperature: -10...+300 °C Operating pressure: max. 200 bar Allowable operating pressure REG-82Fx: see order details, page 11, table Differential pressure: min. 2.0 bar Differential pressure: max. 10 bar Materials...
  • Page 6: Dimensions And Order Codes

    9. Dimensions and Order Codes page 6 REG K16/0722...
  • Page 7 Dimensions and Order Details G screw thread (example: REG-0101) Male thread Female/female thread Female/female thread Female/male thread Female/male thread Dimensions G 3/4 G 1/2 G 3/4 G 1/2 G 3/4 L [mm] GT [mm] GL [mm] G 1/2 G 3/4...
  • Page 8 Dimensions and Order Details NPT screw thread (example: REG-5101) Female/female thread Female/male thread Dimensions ¾ NPT ¾ NPT L [mm] GT [mm] GL [mm] ¾ NPT ¾ NPT ¾ NPT AF [mm] H [mm] Throughput Tolerance Stainless Stainless Brass Brass...
  • Page 9 Order Details multiple element (example: REG-92 R402 080) Design Size Throughput* in L/min ..R402..=G 1 1.2; 2-fold 1.0...080 ..R403..=G 1 1.2; 3-fold 1.5...120 ..R503..= G 2; 3-fold 1.5...120 REG-92... Multiple element made of ..R504..= G 2; 4-fold 2.0...160 stainless steel 1.4301 ..R585..=G 2 1.4;...
  • Page 10 Order Details multiple element – flange version (example: REG-82 F32 2 080) Number of Design Flange Flow rate* in L/min elements ..F20..= DN 20 ..1.. = 1-fold 0.5...040 REG-82..F25..= DN 25 Multiple element with flange ..2.. = 2-fold ..F32..= DN 32 1.0...080...
  • Page 11 REG-82 Fxx-Flange-dimensions for PN 16-40 Outer-Ø Bolt Circle-Ø Hole- Ø Sealing Flange surface- Ø thickness [t]* 16-40 * Sealing surface on both sides Dimensions in mm REG K16/0722 page 11...
  • Page 12 Order Details multiple element (example: REG-82 A32 2 080) Number of Design Flange NPS Flow rate* in LPM elements ..A20.. = ¾“ ..1.. = 1-fold ..A25..= 1“ ..1.. = 1-fold 0.5...040 ..1.. = 1 fold ..A32..= 1¼“ ..1.. = 1-fold ..A40..= 1½“...
  • Page 13 REG-82 Axx-Flange-dimensions for ASME B16.5 class Outer-Ø Bolt-Circle-Ø Hole- Ø Sealing surface- Ø Flange thickness [t]* ¾“ 69.9 42.9 11.2 1“ 79.4 50.8 12.7 15.9 1¼“ 88.9 63.5 14.3 1½“ 98.4 73.0 15.9 2“ 120.7 92.1 17.5 2½“ 139.7 104.8 20.7...
  • Page 14: Disposal

    (Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. „Cd" stands for cadmium 2. „Hg" stands for mercury 3. „Pb" stands for lead 4. „Li" stands for lithium Electrical and electronic equipment page 14 REG K16/0722...
  • Page 15: Eu Declaration Of Conformance

    11. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Flow Restrictors Model: REG-... to which this declaration relates is in conformity with the standards noted below: EN IEC 63000:2018 Technical documentation for the assessment of electrical...
  • Page 16: Declaration Of Conformity

    12. UK Declaration of Conformity We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Flow Restrictors Model: REG-... to which this declaration relates is in conformity with the standards noted below: BS EN IEC 63000:2018...
