Zennio DALIBOX Broadcast 4CH Technical Documentation

KNX - DALI Broadcast Interface for up to 4 channels
ZDI-DLB4
FEATURES
•
Control of up to 20 DALI ballasts per channel in up to 4 channels
only for logarithmic curve
•
Ballast replacement allowed with automatic detection
•
Error detection and monitoring (except multiaddress DALI ballasts)
•
Burn-in, Stand-by and Auto-off functionality for each channel
•
Not suitable for emergency lighting control
•
Optional manual dimming control
•
External 110-230 VAC 50/60 Hz power supply
•
Total data saving on KNX bus failure
•
Integrated KNX BCU (TP1-256)
•
Dimensions 67 x 90 x 79 mm (4.5 DIN units)
•
DIN rail mounting according to IEC 60715 TH35, with fixing clamp
•
DALI Standard compatible
•
Conformity with the CE, UKCA, RCM directives (marks on the right
side)
1. DALI channel output
5. Programming/Test LED
Programming/Test button: short press to set programming mode. If this button is held while plugging the device into the KNX bus, it enters the safe
mode. If this button is held for more than 3 seconds, the device enters the test mode.
Programming/Test LED: programming mode indicator (red). When the device enters the safe mode, it blinks (red) every half second. The manual mode
is indicated by the green color. During the start-up (reset or after KNX bus failure) and if the device is not in safe mode, it emits a red flash.
GENERAL SPECIFICATIONS
CONCEPT
Type of device
Voltage (typical)
Voltage range
KNX supply Maximum
consumption
Connection type
External power supply
Operation temperature
Storage temperature
Operation humidity
Storage humidity
Complementary characteristics
Protection class
Operation type
Device action type
Electrical stress period
Degree of protection
Installation
Minimum clearances
Response on KNX bus failure
Response on KNX bus restart
Operation indicator
Weight
PCB CTI index
Housing material
¹ Maximum consumption in the worst-case scenario (KNX Fan-In model).
© Zennio Avance y Tecnología S.L.
2. DALI channel status LED
6. External supply LED
Voltage
29 VDC (typical)
24 VDC¹
Edition 7
DALIBOX Broadcast 4CH
2
3
4
5
6
3. DALI channel control button
7. External power supply
DESCRIPTION
Electric operation control device
29 VDC SELV
21-31 VDC
mA
7
10
Typical TP1 bus connector for 0.8 mm Ø rigid cable
110-230 VAC 50/60 Hz
-5 .. +45 °C
-20 .. +55 °C
5 .. 95%
5 .. 95%
Class B
II
Continuous operation
Type 1
Long
IP20, clean environment
Independent device to be mounted inside electrical panels with DIN rail (IEC
60715)
Not required
Data saving according to parameterization
Data recovery according to parameterization
The programming LED indicates programming mode (red) and test mode
(green). Each output LED indicates its status (fixed = active output; flashing
= error in the output). Power supply LED indicates the presence of supply
voltage (green).
124 g
175 V
PC FR V0 halogen free
Further information
TECHNICAL DOCUMENTATION
1
7

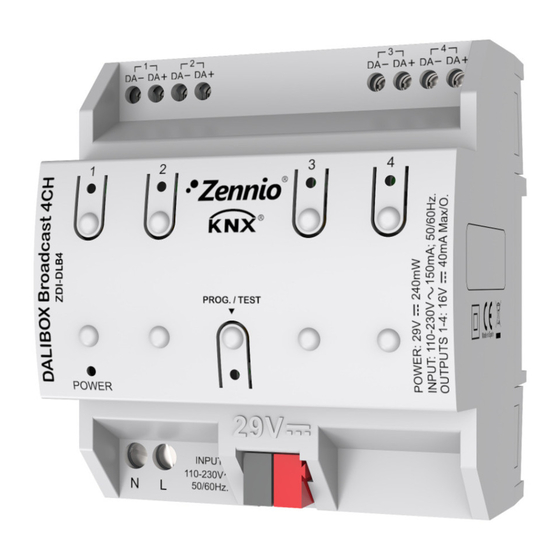

Figure 1: DALIBOX Broadcast 4CH
4. Programming/Test button
8. KNX connector
mW
203
240
www.zennio.com
8
9
9. Fixing clamp
