Zennio ZDID64V3 Quick Start Manual

Interface for one DALI bus with up to 64 devices and 64 lighting groups
ZDID64V3
FEATURES
•
Possibility of controlling up to 64 DALI ballasts and up to 64 lighting
groups (groups from number 17 to number 64 are only for one DALI
ballast)
•
Single Master DALI-2 Controller
•
Compatibility with emergency lighting and color ballasts (DT8).
•
Scene sending and saving
•
Error detection and monitoring
•
Burn-in, Stand-by and Auto-off functions
•
Manual control through buttons and status indication through display
•
1.54" display (128 x 64 pixels) for settings and notifications
•
External power supply of 110-240 VAC 50/60 Hz
•
Total data saving on KNX bus failure
•
Integrated KNX BCU (TP1-256)
•
Size 67 x 90 x 79 mm (4.5 DIN units)
•
DIN rail mounting according to IEC 60715 TH35, with fixing clamp
•
DALI Standard certified
•
Conformity with the CE, UKCA, RCM directives (marks on the right
side)
1. DALI bus channel
5. Programming LED
Programming button: short press to set programming mode. If this button is held while plugging the device into the KNX bus, it enters the safe mode.
Programming LED: programming mode indicator (red). When the device enters the safe mode, it blinks (red) every half second. During the start-up
(reset or after KNX bus failure) and if the device is not in safe mode, it emits a red flash.
GENERAL SPECIFICATIONS
CONCEPT
Type of device
Voltage (typical)
Voltage range
Connection type
KNX supply
Maximum
consumption
Voltage
External power
supply Maximum consumption
Operation temperature
Storage temperature
Operation humidity
Storage humidity
Complementary characteristics
Protection class / Overvoltage category
Operation type
Device action type
Electrical stress period
Degree of protection
Installation
Minimum clearances
Response on KNX bus failure
Response on KNX bus restart
Operation indicator
Weight
PCB CTI index
Housing material
¹ Maximum consumption in the worst-case scenario (KNX Fan-In model).
© Zennio Avance y Tecnología S.L.
2. Control buttons
6. Power supply indicator LED
DESCRIPTION
Electric operation control device
29 VDC SELV
21-31 VDC
Typical TP1 bus connector for 0.8 mm Ø rigid cable
Voltage
29 VDC (typical)
24 VDC¹
110-240 VAC 50/60 Hz PF=0.5
82 mA @ 110 VAC / 52 mA @ 230 VAC
-5 .. +45 °C
-20 .. +55 °C
5 .. 95%
5 .. 95%
Class B
II / III (4200 V)
Continuous operation
Type 1
Long
IP20, clean environment
Independent device to be mounted inside electrical panels with DIN rail (IEC
60715)
Not required
Data saving according to parameterization
Data recovery according to parameterization
The programming LED indicates programming mode (red). The power
supply LED indicates external power (green). Display allows both
configuring the DALI system and supervising the current status.
195 g
175 V
PC FR V0 halogen free
Edition 1
DALI BOX Interface 64 v3
3
4
5
6
7

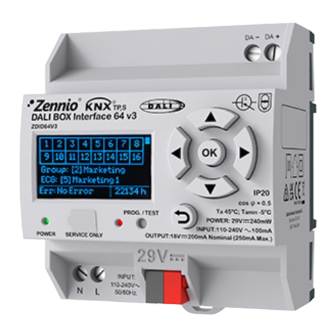

Figure 1: DALI BOX Interface 64 v3
3. Display
7. External power supply
mA
6,2
10
Further information www.zennio.com
TECHNICAL DOCUMENTATION
2 1
8
4. Programming button
8. KNX connector
mW
179.8
240
Page 1/2
