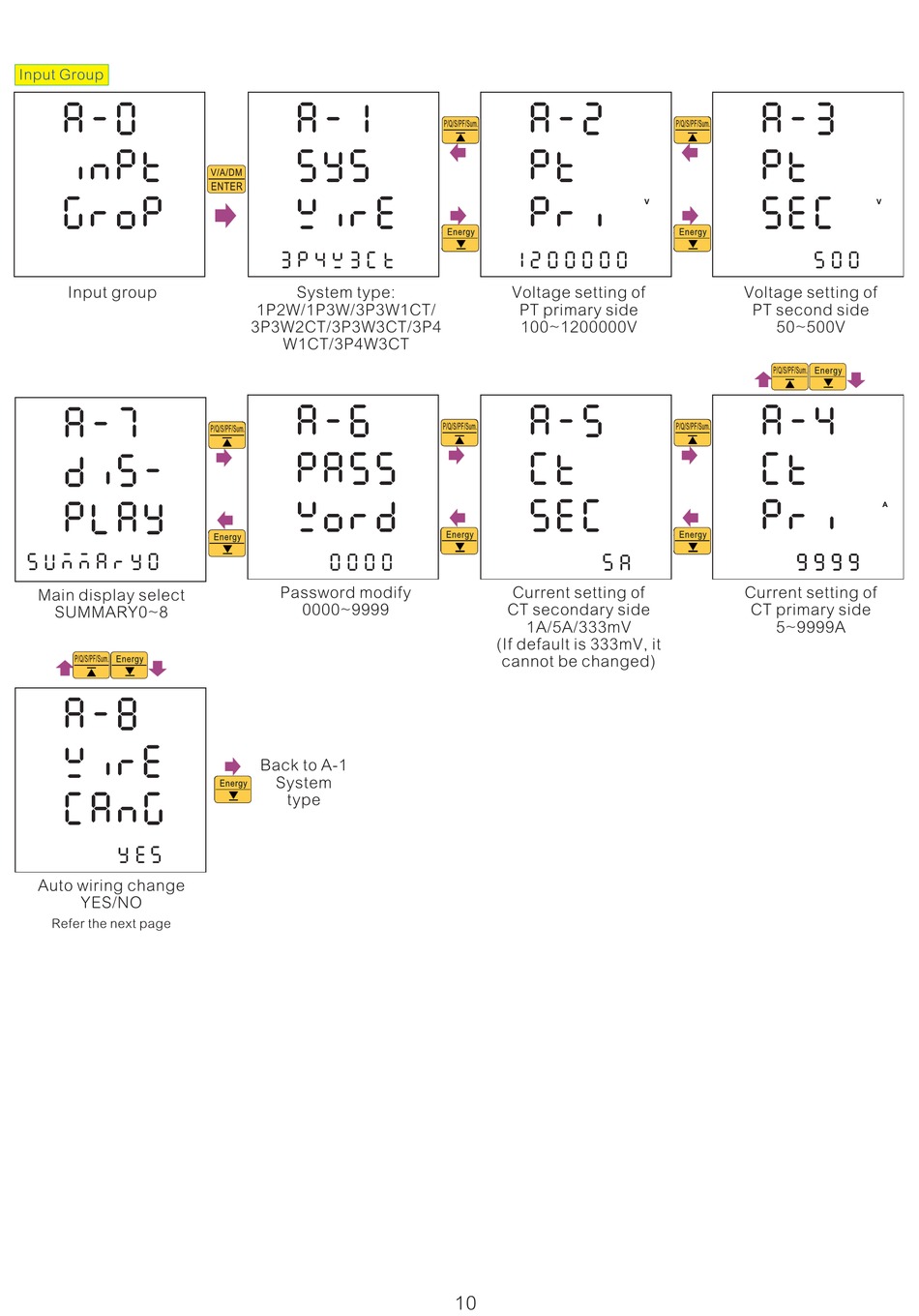

Input Group
a-0
inpt
grop
Input group
a-7
dis-
play
s u m m a r y 0
Main display select
SUMMARY0~8
a-8
wire
cang
y es
Auto wiring change
YES/NO
Refer the next page
a-1
sys
wire
3 p 4 w 3 c t
System type:
1P2W 1P3W 3P3W1CT/ / /
3P3W2CT/3P3W3CT/3P4
W1CT/3P4W3CT
a-6
pass
word
0 0 0 0
Password modify
0000~9999
Back to A-1
System
type
a-2
pt
pri
1 2 0 0 0 0 0
Voltage setting of
PT primary side
100~1200000V
a-5
ct
sec
5 a
Current setting of
CT secondary side
1A/5A/333mV
(If default is 333mV, it
cannot be changed)
10
a-3
pt
sec
V
5 0 0
Voltage setting of
PT second side
50~500V
a-4
ct
pri
9 9 9 9 9 9 9 9
Current setting of
CT primary side
5~9999A
V
A
