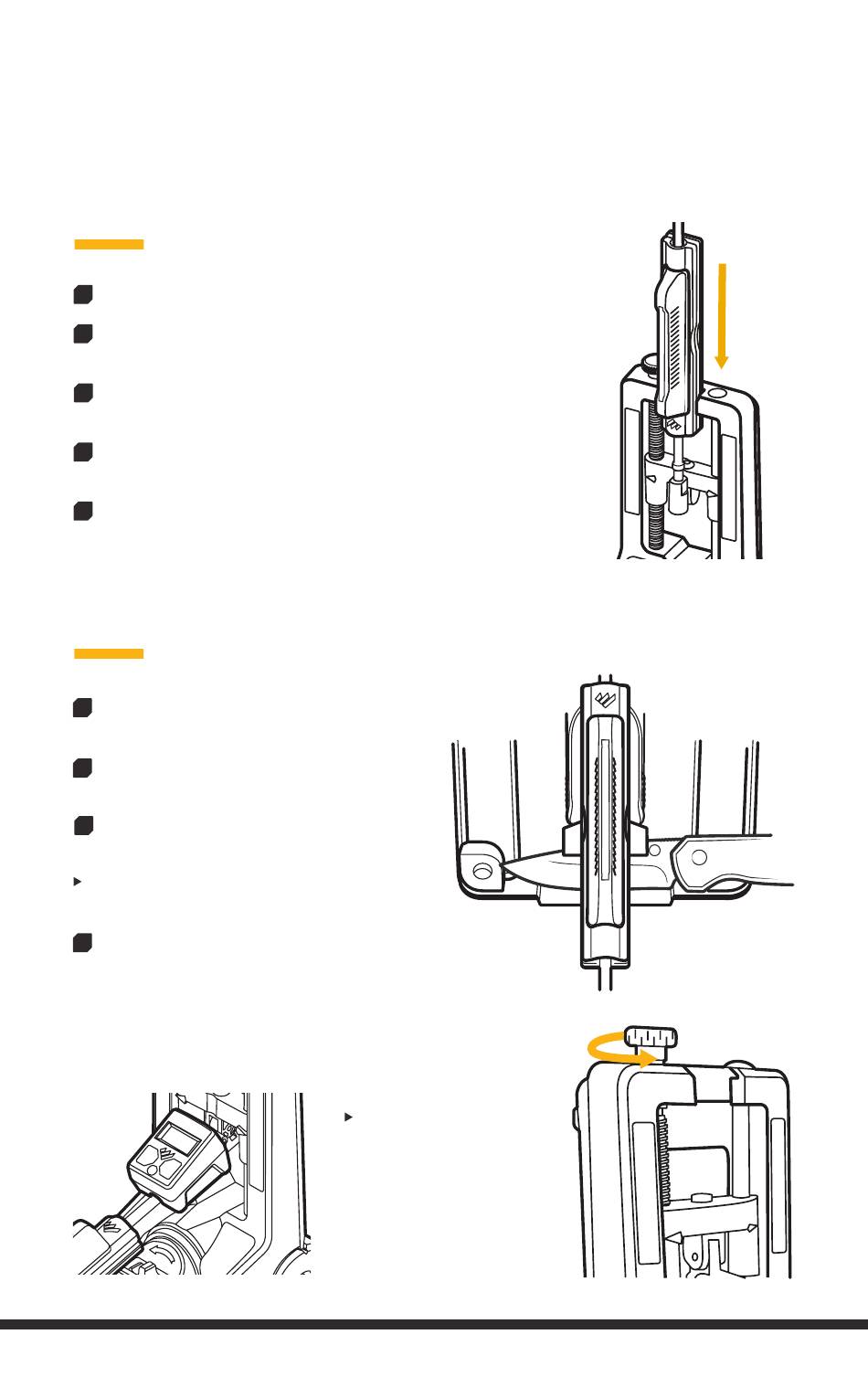

ABRASIVE HANDLE
INSTALLATION AND STORAGE
POSITION
Insert the Sharpening Rod into the Sharpening Rod Clevis until it clicks into place.
1
Install Abrasive Plate onto the handle. Ensure the plate is fully seated over the pins
2
on the handle.
Ensure the Sharpening Rod slides through both internal bearings and slides freely
3
with full range of motion. O-Rings can be adjusted as needed depending on knife size.
Move the Abrasive Handle to the vertical position with the abrasive facing the back of
4
the Sharpening Chassis.
Slide the Abrasive Handle down into the Abrasive Handle Stowage Position.
5

SELECTING YOUR ANGLE

Position the Abrasive Handle (abrasive down) onto the
1
middle section of the knife blade.
Zero the Digital Angle Indicator on benchtop, then install
2
on the Sharpening Rod Clevis.
Turn the Angle Adjustment Knob until your desired angle
3
is shown on the Digital Angle Indicator.
TIP: Clockwise to increase the angle & Counterclockwise
to decrease the angle.
Remove the Digital Angle indicator prior to sharpening.
5

8 | ABRASIVE HANDLE INSTALLATION AND STORAGE POSITION

PRO TIP: The Edge Angle
Reference Scales on the
Sharpening Chassis are for
reference and gross angle
adjustment only. Use the
Digital Angle Indicator to set
the exact sharpening angle.
2
