Summary of Contents for Work Sharp CPE5-NH

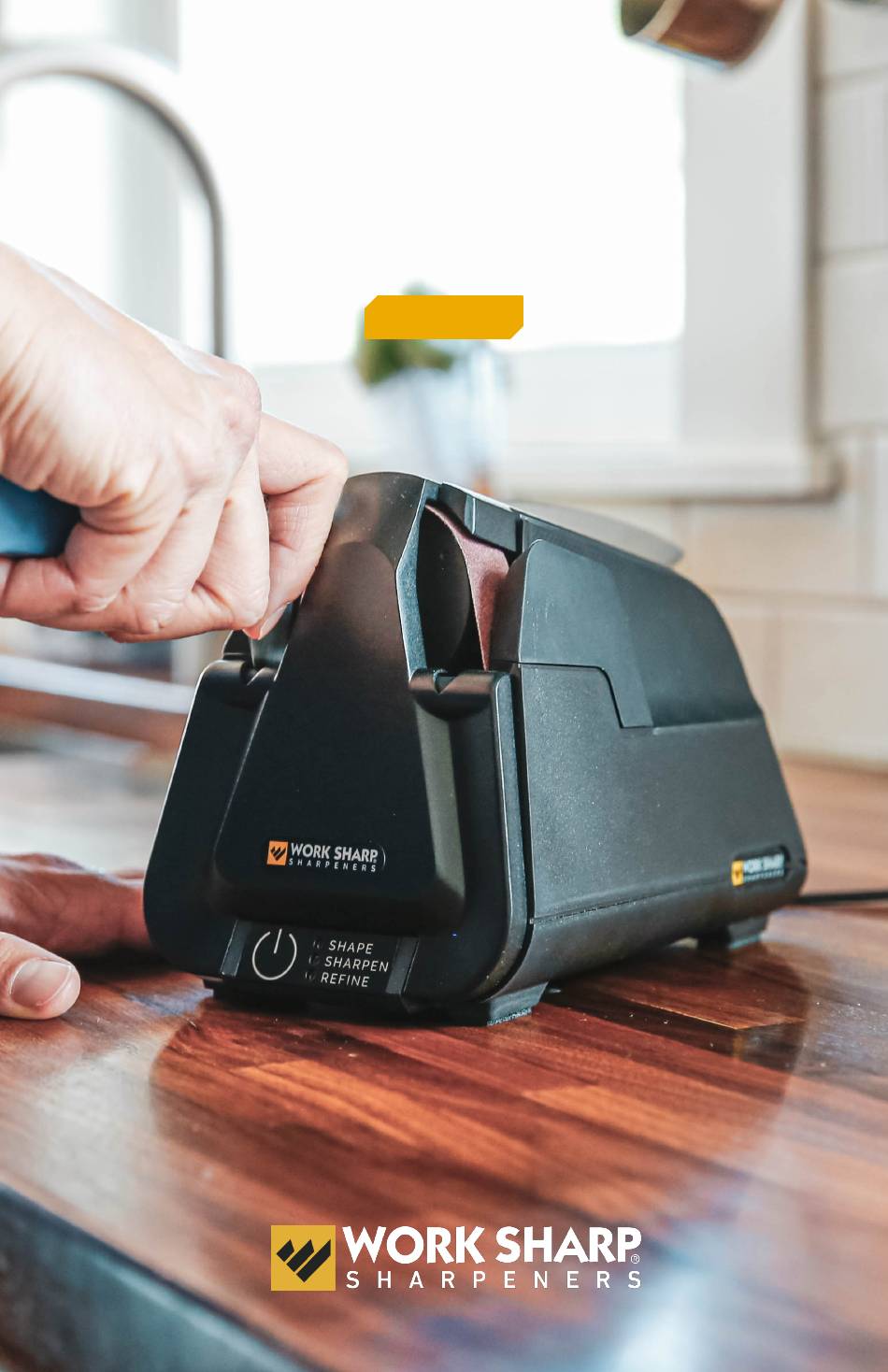

- Page 1 USER’S GUIDE FOR THE PROFESSIONAL ELECTRIC KITCHEN KNIFE SHARPENER CPE5-NH...
- Page 2 TEAM WORK SHARP Phone: 1.800.418.1439 Web: www.worksharptools.com WARRANTY Register Online at: www.worksharptools.com 3-year warranty on all Work Sharp components; excludes abrasives. Warranty for consumer use, not commercial or industrial use. *Excludes Abrasives For tips and tricks, instructional videos, and frequently asked questions, visit worksharptools.com.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety ......................4 Tour Your Sharpener ................... 6 How To Sharpen ..................7 Changing/Replacing Belts ................8 Removing Guides ..................8 Serrated Knives ..................9 Scissors/Shears ..................9 Belt Information ..................10 Belts and Accessories ................11 PLEASE LEAVE A REVIEW ON WORKSHARPTOOLS.COM, AMAZON OR WHEREVER YOU PURCHASED YOUR PRODUCT... -
Page 4: Safety
SAFETY IMPORTANT SAFEGUARDS ⚠ WARNING! Read all safety warnings and all instructions. When using electrical appliances, basic safety precautions should always be followed. Every user should read these instructions. ⚠ WARNING! You will be creating incredibly sharp knives and tools with this sharpener. Please handle them with care. - Page 5 Hz ............Hertz .......direct current ......earthing terminal W............watts ........no load speed rpm ........revolutions or reciprocations per minute SERVICE Please contact Work Sharp Customer Support: Work Sharp Web: www.worksharptools.com 210 E. Hersey St. Phone: 1.800.418.1439 Ashland, OR 97520 USA Fax: 1.541.552.1377 E-mail: info@worksharptools.com SAVE THESE INSTRUCTIONS —...
-
Page 6: Tour Your Sharpener
TOUR YOUR SHARPENER Sharpening Belt Tensioner Belt Storage Edge Rollers (inside machine) 17° Sharpening Guides Front Cover Wall Plug One Touch Programming ONE TOUCH PROGRAMMING Choose from 3 stages with the press of the front button: Shape* Click 3 Times, Quickly 90 sec Cycle S H A P E Sharpen... -
Page 7: How To Sharpen
HOW TO SHARPEN The 17° guides create an optimal edge on any straight edge knife. Stage: Sharpen (click 2 times, quickly) Cycle: 90 seconds For best results, complete the full timed cycle. Insert the heel of the knife into the left sharpening guide, keeping it up against the leather lining and softly resting on the front edge roller. -
Page 8: Changing/Replacing Belts
CHANGING/REPLACING BELTS Pull open the front cover of the unit. Cover is secured with magnet. Press down on the tensioner, located behind the top, large pulley (wheel). Holding tensioner down, slide belt off. Lift up tensioner to find extra belt storage. To install new belt, hold tensioner down and slide belt around all 3 pulleys (wheels). -
Page 9: Serrated Knives
SERRATED KNIVES Most serrated and bread knives have a flat side and a serrated side on the blade. Using the Refine stage, sharpen only the FLAT SIDE. First, remove the left sharpening guide to expose the belt. See Removing Guides section for details. Single click for Refine stage. -
Page 10: Belt Information
BELT INFORMATION SHARPENING BELTS INCLUDED G R I T C O L O R Q U A N T I T Y A P P L I C A T I O N P120 Medium grit belt for knife and scissor sharpening. X4 (P3000) WHITE Extra-Fine grit belt for honing knives. -
Page 11: Belts And Accessories
BELTS AND ACCESSORIES ADDITIONAL KITS Upgrade Kit .............. CPAC004 Includes: 15° East guides, 20° West guides, Repair and Restore Recipe, Master Belt Kit Replacement Master Belt Kit ........CPAC005 5 belt kit includes: (1) Blue, (2) Red, (1) Grey, (1) White Replacement Belt Kit .......... - Page 12 W O R K S H A R P PO Box 730 210 E Hersey St. Ashland, OR 97520 Phone: 1.800.418.1439 Fax: 1.541.552.1377 Email: info@worksharptools.com Web: www.worksharptools.com CP00656 Rev 0...
