- Page 1 Rollator Series H1040 applies to H1040 - H1049 User instructions...
- Page 2 If you have any questions regarding the assembly, the rollator or if you are unsure about anything, please contact our customer service at the e-mail address: support@helavo-rollators.com | User instructions...
-
Page 3: Scope Of Delivery

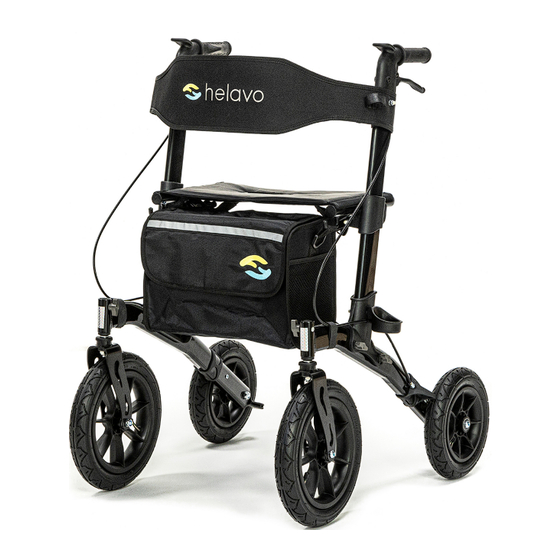

Scope of delivery The Helavo Series H1040 comes with a frame and the following parts: • Removable cane holder • Bag • Wing screws • Front wheels • Rear axle with rear wheels • Velcro strap • User instructions • Product insert... - Page 4 Description of the rollator A.) Handle grip G.) Parking brake B.) Backrest C.) Seat H.) Height adjustment D.) Bag I.) Removable cane holder E.) Wing screw on front wheel J.) Wing screws on frame K.) Rear wheel axle with rear wheel F.) Front wheel L.) Rear wheel brake | User instructions...
- Page 5 4. Keep your hands away from the folding mechanism to avoid entrapment. If you have any questions regarding the assembly, the rollator or if you are unsure about anything, please contact our customer service at the e-mail address: support@helavo-rollators.com User instructions |...
- Page 6 Assembly instructions 1. Remove the rollator from Remove the two wing screws ("J") on the frame the packaging and remove of the rollator at the "RB" the protective foils. Spread mark. out the parts for assembly as shown. The seat ("C") of the rollator lies flat.
- Page 7 Assembly instructions 5. Fasten the rear wheel axle Now repeat steps 2. - 5. for the second rear wheel axle with rear wheel ("K") with rear wheel ("K") with with the wing screws mark "LB" on the other side ("J") loosened before. of the frame.
- Page 8 Assembly instructions 9. Fasten the front wheel ("F") Repeat steps 6. - 8. for the with the previously second front wheel ("F") loosened wing screw ("E"). with the mark "LF" on the The gray wing screw other side of the frame. pointing inwards.
- Page 9 Assembly instructions 13. Our recommendation: Fix Attach the bag ("D"). Hook the brake cables on both the tabs of the bag into the sides of the frame using hooks provided. the velcro tape as shown. Be careful not to cover any reflectors when doing this.
-
Page 10: Adjusting The Height
Adjusting the height Press the gray button on the height adjustment ("H") on the frame of the rollator and adjust the handle to the appropriate height. Repeat for the other side. Make sure the gray buttons on both handles are locked. Make sure that both handles are set to the same height. - Page 11 Brakes Push the brake handles ("G") Pull the brake handles down to lock the rear ("G") up to brake the wheels. In this position, the rollator. parking brake of the rollator is active. To release the parking brake again, pull the brake handles ("G") upward.
-
Page 12: Adjusting The Brakes
Adjusting the brakes To adjust the rear brake ("L"), adjust the adjustment screw and locking nut. These are located on the rear wheels ("K") of rollator. Turn adjustment screw Adjustment screw counterclockwise to increase the tension. Then secure the adjustment by turning the locking nut clockwise. Hold the Locking nut adjustment screw in place while doing so. - Page 13 Removable cane holder 1. Attach the cane holder ("I") To do this, slide the cane to the side of the frame in holder ("I") onto the holder the provided position. from above. User instructions |...
- Page 14 Folding and storing the rollator 1. Pull the handle in the Continue to push the middle of the seat ("B") rollator on both sides of firmly upwards to fold the the frame. rollator. | User instructions...
- Page 15 Inflating the wheels Open the valve to inflate the wheels. To do this, turn the cap counterclockwise. Inflate the wheels. Then screw the cap back onto the valves. The valves on the wheels of this model are Schrader valves. To inflate the wheels use a manual air pump with the appropriate attachment.
-
Page 16: Maintenance
Maintenance 1. Check the rollator at regular intervals for loose wing screws ("E" / “J”) and defective height adjustments ("H"). 2. Periodically check for proper operation of the rear wheel brakes ("L"). 3. Check the air in the tires ("F" / "K") regularly and inflate them if necessary.
