- Page 1 Rollator Series H1010 applies to H1010 - H1019 User instructions...
- Page 2 If you have any questions regarding the assembly, the your medical professional to determine if the rollator is rollator or if you are unsure about anything, please suitable for your needs. contact our customer service at the e-mail address: support@helavo-rollators.com | User instructions...
-
Page 3: Scope Of Delivery

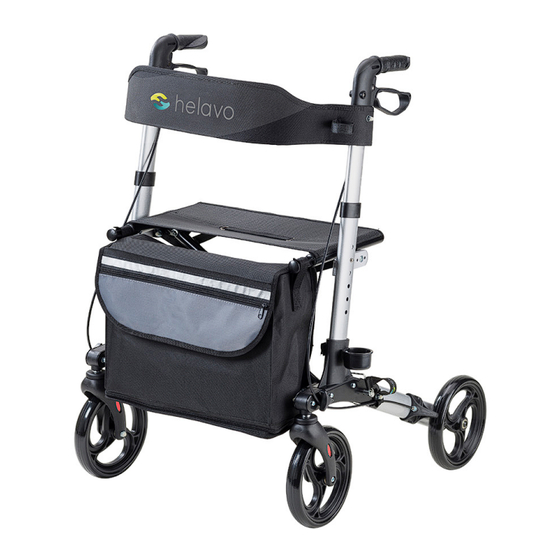

Scope of delivery The Helavo Series H1010 comes with a frame and the following parts: • Two cane holders • Multifunctional bag • Wing screws • Bolt • Attachment Strap • User instructions • Product inserts User instructions |... - Page 4 Description of the rollator F.) Handle grip A.) Backrest G.) Parking brake B.) Seat H.) Spring button / height adjustment C.) Multifunctional bag I.) Bolt J.) Cane holder D.) Wing screw K.) Rear wheel axle with rear wheel E.) Front wheel L.) Rear wheel brake | User instructions...
- Page 5 4. Keep your hands away from the folding mechanism to avoid entrapment. If you have any questions regarding the assembly, the rollator or if you are unsure about anything, please contact our customer service at the e-mail address: support@helavo-rollators.com User instructions |...
- Page 6 Assembly instructions Remove the rollator from Remove the orange attachment strap. The strap the packaging and remove the packaging material. can be reused after final assembly to secure the rollator in its folded position. Unfold the front wheels Lay the rollator down so ("E").
- Page 7 Assembly instructions 6. Unfold the rear wheel axle Turn the rollator so that of the rear wheel ("K"). the handles ("F") are facing up. Pull the bracket off the bolt (“I”) from the inside of the rear wheel and pull the bolt (“I”) out.
- Page 8 Assembly instructions Check that the two bolts Put the rollator in an upright ("I") are properly secured position and pull it apart by and that the wing both handles ("F"). Push it screws ("D") are securely down on both sides of the tightened.
-
Page 9: Adjusting The Height
Adjusting the height Press the spring button ("H") on the frame of the rollator and adjust the handle to the appropriate height. Repeat for the other side. Make sure the spring buttons on both handles are locked. Make sure that both handles are set to the same height. - Page 10 Brakes 1 . Pull the brake handles Push the brake handles ("G") ("G") up to brake the down to lock the rear rollator. wheels. In this position, the parking brake of the rollator is active. To release the parking brake again, pull the brake handles ("G") upward.
-
Page 11: Adjusting The Brakes
Adjusting the brakes To adjust the rear brake ("L"), adjust the adjustment screw and locking nut. These are located on the rear Locking nut wheels ("K") rollator. Turn adjustment screw counterclockwise to increase the tension. Then secure the adjustment by turning the locking nut clockwise. - Page 12 Removable cane holders 1. Attach the cane To do this, slide the holders ("J") to both cane holder ("J") onto sides of the frame in the holder from the provided positions. above. | User instructions...
- Page 13 Folding and storing the rollator Pull the handle in the middle Continue to push the of the seat ("B") firmly rollator on both sides of the upwards to fold the rollator. frame. Secure the rollator with the orange attachment strap at the brackets where the multifunctional bag (“C”) hangs.
- Page 14 Transportation of the rollator The bag included in the delivery is a multifunctional bag ("C"). Open the zipper on the lower part of the multifunctional bag so that you can open it completely. Then pull the multi- functional bag apart. Follow these steps in reverse order to shrink the multifunctional bag back down and attach it to your rollator.
- Page 15 Transportation of the rollator Set the height of the handles ("F") to the lowest possible level to prepare the rollator for transportation. (Also see chapter "Adjusting the height"). Then follow steps 1 - 3 in chapter "Folding and storing the rollator". To store the rollator in the 1.
-
Page 16: Maintenance
Maintenance 1. Check the rollator at regular intervals for loose wing screws ("D") and defective spring buttons ("H"). 2. Periodically check for proper operation of the rear wheel brakes ("L"). 3. Replace damaged or worn parts. Cleaning The rollator can be cleaned with a damp cloth / sponge and warm soapy water. If necessary, you can use an antibacterial surface cleaner. - Page 17 I User instructions...
