USB Module
5

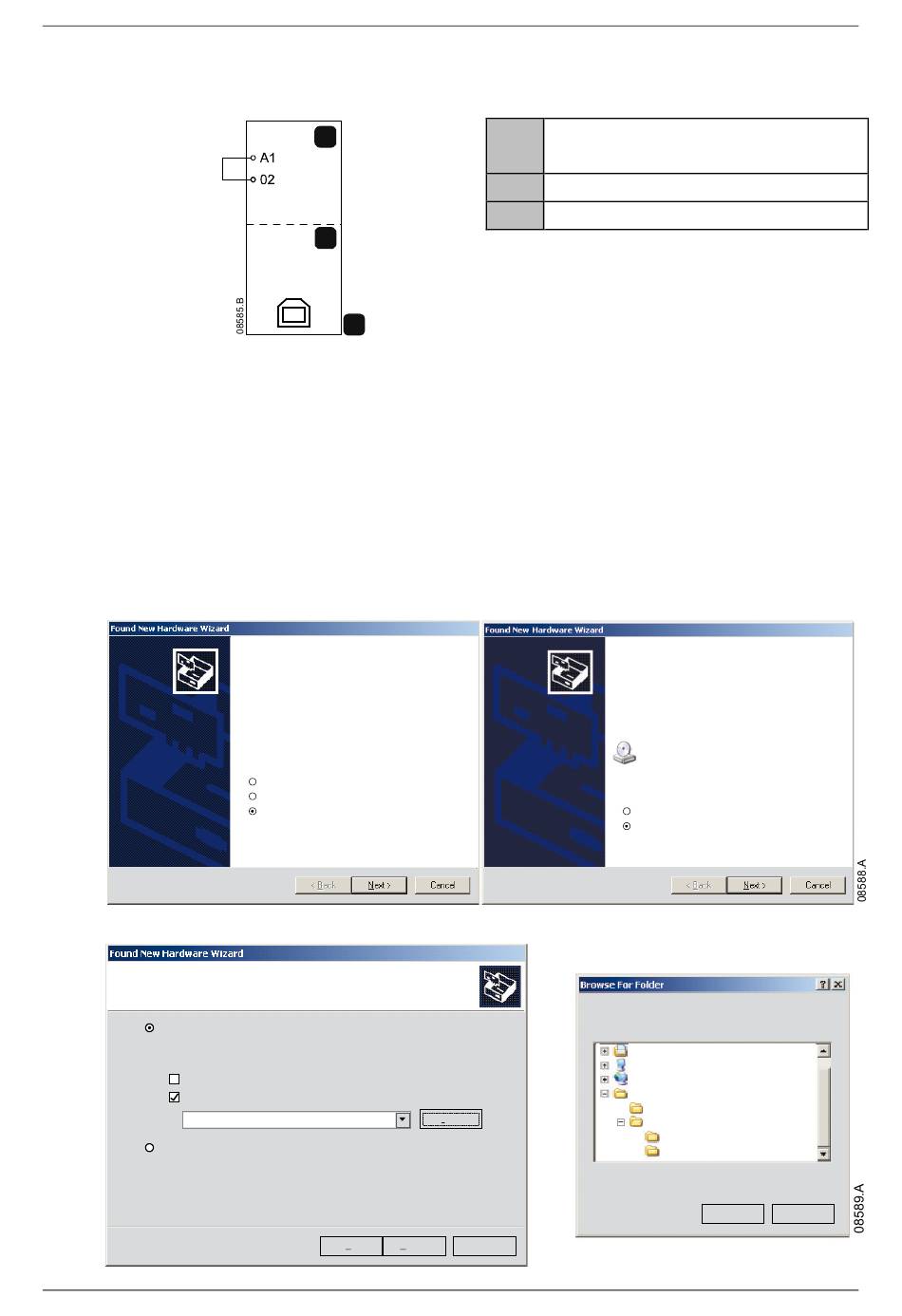

Connection

For successful operation, links must be fitted across terminals A1, 02 on the soft starter.
6

Configuration

The USB Module requires a driver to operate correctly. Contact your local supplier for the
latest version of the driver.
To bring the USB Module on-line:
1. Remove control power and mains supply from the soft starter.
2. Attach the module to the soft starter.
3. Connect the module to the PC via a USB cable. The PC should detect the module and
the Hardware Update Wizard will open.
4. Install the USB driver to operate the module as follows.
Please choose your search and installation options.
Search for the best driver in these locations.
Use the check boxes below to limit or expand the default search, which includes local
paths and removable media. The best driver found will be installed.
Search removable media (floppy, CD-ROM...)
Include this location in the search
C:\Documents and Settings\user\Desktop\USB Comm
Don't search. I will choose the driver to install.
Choose this option to select the device driver from a list. Windows does not guarantee that
the driver you choose will be the best match for your hardware.
User Manual
1
2
1 2
3
4 3
Welcome to the Found New
Hardware Wizard
Windows will search for current and updated software by
looking on your computer, on the hardware installation CD, or on
the Windows Update Web site (with your permission).
Read our privacy policy
Can Windows connect to Windows Update to search for
software?
Yes, this time only
Yes, now and every time I connect a device
No, not this time
Click Next to continue.
< Back Next >
1 Soft starter (Remote mode)
A1, 02: Stop input
2
USB Module
3
USB port
Select the folder that contains drivers for your hardware.
Browse
To view any subfolders, click a plus sign above.
Cancel
Connection
This wizard helps you install software for:
FT232R USB UART
If your hardware came with an installation CD
or floppy disk, insert it now.
What do you want the wizard to do?
Install the software automatically (Recommended)
Install from a list or specific location (Advanced)
Click Next to continue.
My Documents
My Computer
My Network Places
USB Comms Drivers
Win98_ME
WinXP_Vista
amd64
i386
OK Cancel
