AQUAPHOR C126 Instruction Manual

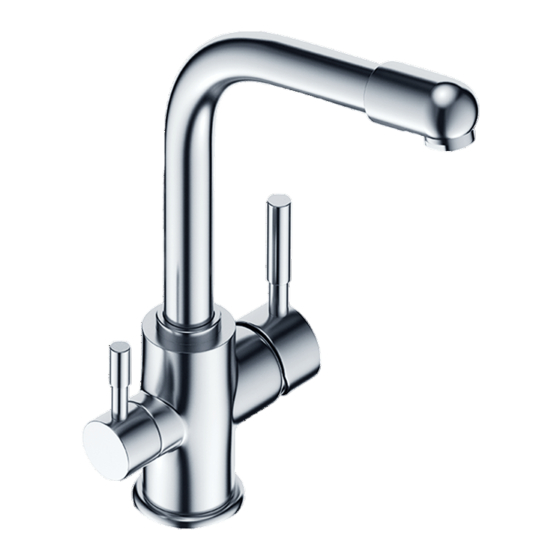

Three way kitchen faucet model C126
Three way kitchen faucet model number C126 to be used with tap water and
filtered tap water with other purifiers, which are connected to incoming tap water.
Instruction manual
1. Cap
2. Aerator
3-4. Small diameter layer
5. Large diameter layer
6. Spout
7. Wear ring
8. Seal
9. O-ring, 2 pieces
10. Seal
11. Allen screw
12. The body of the mixer
13. A cartridge for hot and cold water
14. Threaded bush
15. Decorative hood
16. Cover
17. Allen screw for mounting handles
18. Handle Large
19. Crane bush
20. Plastic sleeve
21. Small housing
22. Handle Small
23. Threaded rod
24. Screw nut
25. Gasket
26. Shaped collar
27. Flexible connection hoses for cold
and hot water
28. Flexible connection hose
for purified water
Demonstrated in figure 1.
