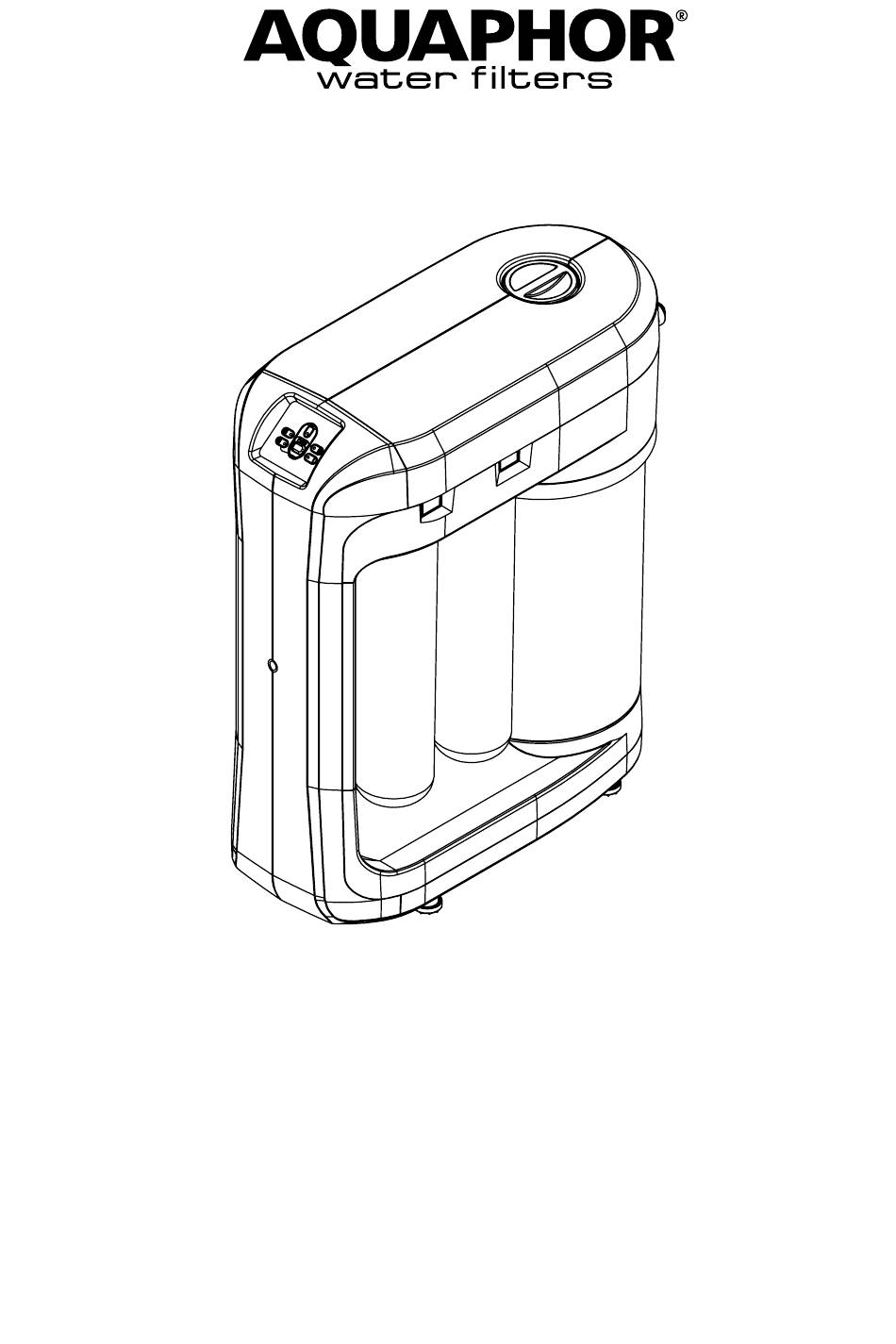

  • Page 1 RO -2 02 S REVERSE OSMOSIS SYSTEM Operation manual...

  • Page 2: Specification Data

    1. Introduction Pressure RO-202S REVERSE OSMOSIS SYSTEM (hereinafter referred to as RO-202S) is manufactured by Westaqua- Invest OÜ (Estonia). RO-202S is intended to purge of mechanical and Dirty water colloidal particles, organic impurities and to remove foreign flavour, odour and colour when post-treating cold...
  • Page 3 3. Scope of Delivery (Fig. 1): № Name Quantity RO-202S housing assembly (1) 1 pc. Cartridges: Pre-treatment unit: 2.1.1 K1 replaceable filter cartridge (2) 1 pc. 2.1.2 К2 replaceable filter cartridge (3) 1 pc. Reverse-osmosis membrane unit: 2.2.1 Replaceable membrane cartridge (4) 1 pc.
  • Page 4 ATTENTION! The RO-202S performance depends on the pressure in the water supply system. No proper operation of RO-202S is guaranteed at pressures below 90 kPa in the water supply system. * Tested on: Escherichia coli 1257, Enterobacter cloacae, Pseudomonas aeruginosa, coliphage f-2, Bac. thuringiensis.
  • Page 5 1/4” inlet tube (red) Fig. 3 Find a convenient location for your RO-202S Your RO-202S must be installed far from or insu- and the treated water tap. Attention should paid lated from heat sources (stoves, boilers, hot water to prevent the supply tubes from bending and pipes, dishwashers or washing machines, etc.).
  • Page 6 Installation of the connecting assembly* • Turn water off at the mainline. • Open the kitchen faucet to relieve pressure in The inlet cock the water supply system. is in its closed position • Unscrew the clamping nut of the flexible hose from the cold water supply line to the faucet.
  • Page 7 • Check that the tube (10) is tight. The tube should not be pulled out with a force of 8–10 kgf. Attention! It is recommended to use the stand- ard RO-202S tap for treated water. Using other taps may result in humming and other unusual sounds.
  • Page 8 The cartridge life indicator lights blink (the light signal is be followed by an audible one). • On the front panel of your RO-202S (Fig. 13), Fig. 10a Fig. 10b flash the PUSH button 3 times to start the flushing mode.
  • Page 9 Membrane Membrane cartridge cartridge water. • Let the water through your RO-202S for 1 hour.* • Close the treated water tap. Fig. 14 Step 5. Flushing the water conditioning unit • Fill the storage tank with water (the light and sound indication turns off), open the tap for •...

  • Page 10: Replacing Cartridges

    7. Replacing Cartridges Your RO-202S is equipped with a light and sound indication of cartridge life. The RO-202S light and sound indication is configured to work with cold drinking water from municipal water supply systems that meet sanitary standards. Each of the filtration units has an individual light indication (Fig.

  • Page 11: Storage Tank Maintenance

    1-2 times a year. • Make sure the RO-202S connections are tight. • Let the water through your RO-202S for 1 hour*. 9. Storage and • Close the treated water tap. • Press and hold the PUSH button for at least Transportation Rules 7 seconds to reset the cartridge life.
  • Page 12 Do not disassemble your RO-202S nor open its housing! Do not use the RO-202S and the power supply in case of malfunction or damage to the cord. Do not repair the device yourself. First disconnect the power supply from the mains, then disconnect it...

  • Page 13: Exclusions And Limitations

    Pre-treatment unit and service. Aquaphor Reverse Osmosis System, Model K1, K2 cartridge: up to 6 months RO-202S – Two Year Warranty from the date of purchase. This does not apply, however, to Reverse-osmosis membrane unit consumable filters. Replaceable 1.5–2 years...

  • Page 14: Fault Table

    NOT APPLY TO YOU. DAMAGES OR EXPENSES INCURRED BY THE PURCHASER OR FOR LABOR OR OTHER COSTS The RO-202S shelf life (with a set of replaceable DUE TO INSTALLATION OR REMOVAL OR COSTS filter cartridges) is 3 years before operation OF REPAIRS BY OTHERS, OR FOR ANY OTHER when stored at + 5 to + 40 ºС, without breach...
  • Page 16 Corp., L. Tolstoi 2A, Sillamäe, Estonia, 40231. www.aquaphor.com The manufacturer reserves the right to make improvements to the design of the RO-202S without being mentioned in this Manual. The date of manufacture and quality control is indicated on the product serial number label.
