AQUAPHOR Crystal Solo Manual

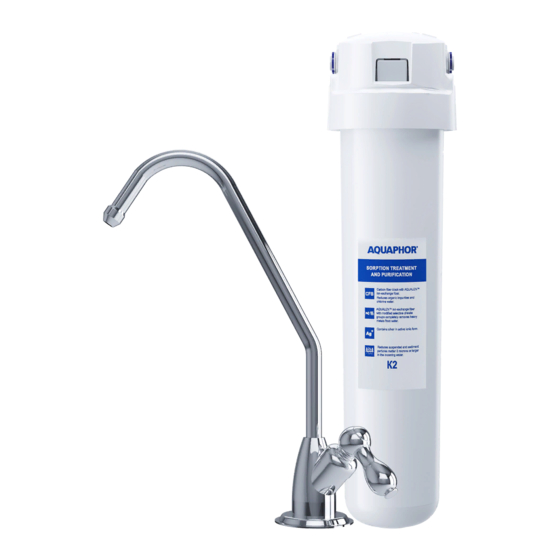

Aquaphor Crystal Solo is an innovative single stage water filter for drinking water purification.
The replacement filter cartridge is manufactured utilizing carbon block technology as a filter
matrix media consisting of coconut granulated activated carbon (GAC) and the ion-exchange
fiber AqualenTM. The microcrystalline cluster silver is used as a bactericide in the cartridge.
Modern compact design
Thanks to the unique patented design of the
collector, and using a new concept of
'block-cartridge', the Aquaphor Crystal Solo
is very compact.
Bacterial safety
For the first time in water purification the
replacement filter cartridge is made as a
self-contained 'block-cartridge' in durable
plastic housing. While replacing the cartridge,
you are not only changing the filter element
but also the whole body of the system as
well.This guarantees you an additional
protection from bacteria growth.
Brand new line of replacement
cartridges
The amount of sorbent in the cartridges is
10% greater than standard 10-inch
Technical characteristics
Model
Recommended use
Replacement cartridge
Overall dimensions,
no more than
Maximum working
water pressure
Water temperature
Resource replacement
cartridge*
Recommended filtration
rate (performance)
Weight, not more
Package contents (fig.1)
Manifold (2)
Connecting tube (14)
Connecting tube (1)
with pressed connection
(cone sleeve) (11)
Shut off valve (3)
O-ring (3mm) (4)
AQUAPHOR CRYSTAL SOLO
MANUAL
cartridges. This makes the purification
process more effective while also
increasing the life span of the filters.
Modern ceramic core faucet simplifies use
of the water purifier.
No tools needed to replace the cartridge.
Easy replacement with less effort.
Performance data:
Residual active chlorine
Benzene
Phenol
Pesticides
Heavy metals, (lead, cadmium) 95%
Aquaphor Crystal Solo
Filtering drinking water
K2
Diameter: 90 mm
Height: 345 mm
0.63 MPA (95 PSI)
+5...+38 °C
4000 liters,
but not more than 1 year
2.5 l/min
1.0 kg
Clean water faucet (1)
1pc.
with a set of washers
1pc.
and 3/8 to1/2 adapter
Replacement filter
cartridge (16)
1pc.
Manual
1pc.
Packaging
1pc.
Single faucet
Easy cartridge replacement
Aquaphor Crystal Solo B
Filtering and conditioning
drinking water using hollow
fiber membrane, removal
of micro-particles
smaller than 0.1 micron
K7B
Diameter: 90 mm
Height: 345 mm
0.63 MPA (95 PSI)
+5...+38 °C
3000 liters,
but not more than 1 year
2.5 l/min
1.0 kg
100%
95%
98%
97%
1pc.
1pc.
1pc.
1pc.
