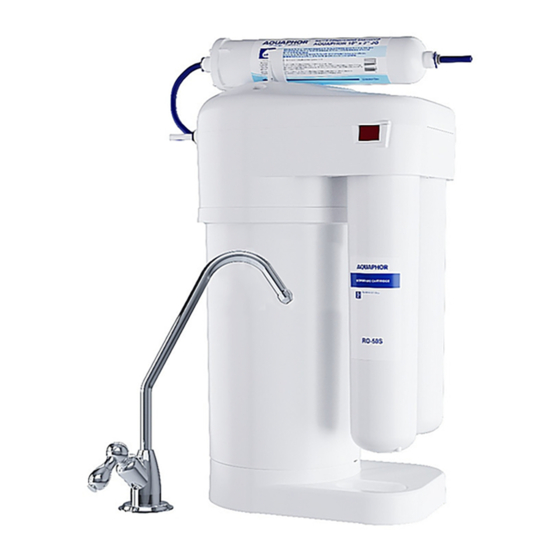

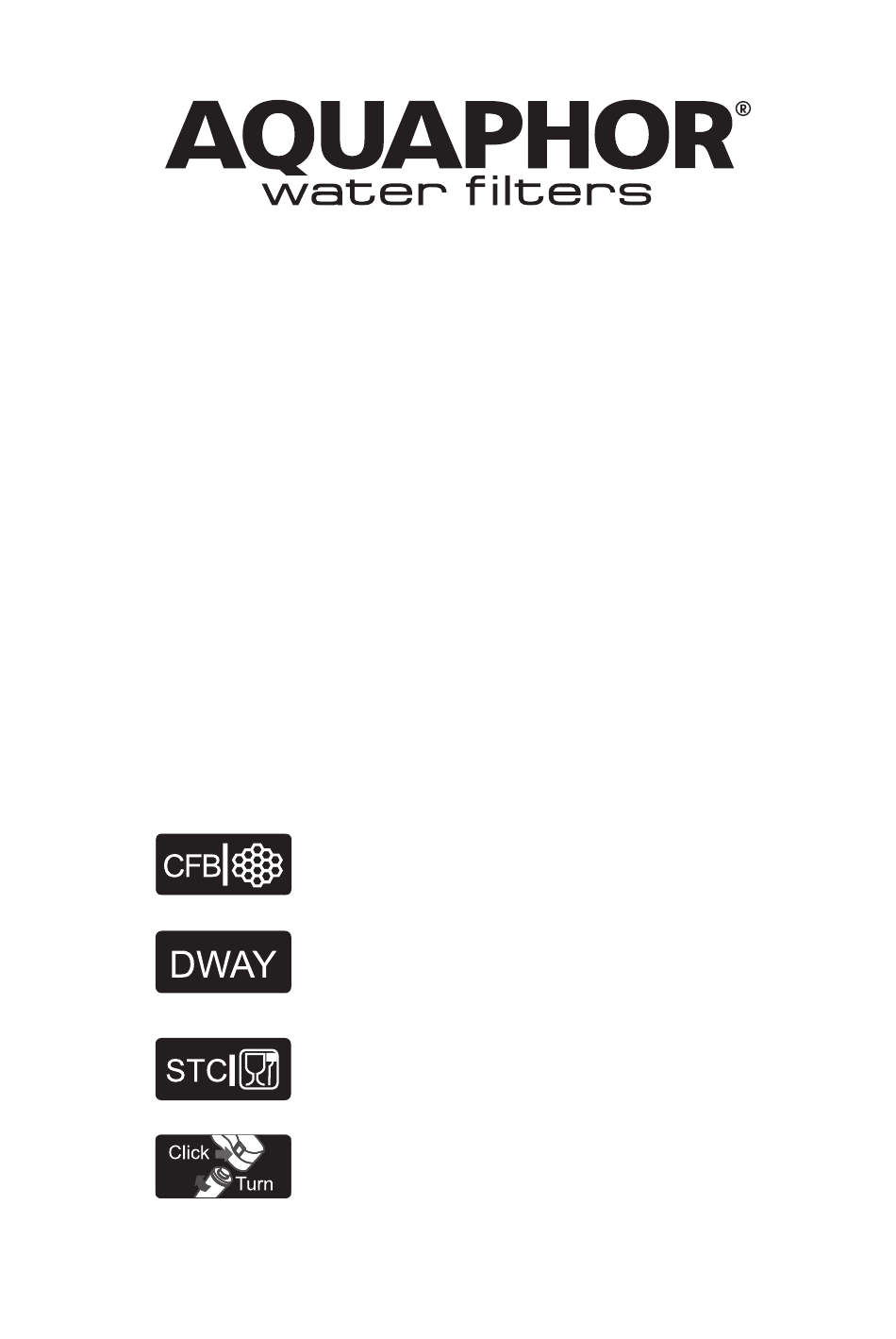

AQUAPHOR RO-70S
DRINKING WATER MACHINE
RO – A new category of household appliance that allows you to
obtain premium drinking water.
AQUAPHOR RO – A combination of the world's best achievements
in water treatment and AQUAPHOR technologies.
Absorbs free radicals
DWAY (DOUBLE WAY) is a unique technology of water
conditioning and optimization, pH and microelements
balance.
STC (Safe To Consume)
Materials are certified for contact with drinking water
and food.
Сlick & Turn
Easy cartridge replacement. Clear and safe
maintenance.
Owner's manual
Unique ion fiber
Effectively and irreversibly removes heavy metals.
Carbon block with АQUALEN™ completely removes
chlorine, organic substances and carcinogens.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AQUAPHOR RO-70S
Summary of Contents for AQUAPHOR RO-70S
- Page 1 Owner’s manual RO – A new category of household appliance that allows you to obtain premium drinking water. AQUAPHOR RO – A combination of the world’s best achievements in water treatment and AQUAPHOR technologies. Unique ion fiber Effectively and irreversibly removes heavy metals.
-
Page 2: Technical Specifications
The action of RO-70S is based on the transfer of water molecules through a semipermeable membrane by applying pressure exceeding the osmotic pressure. RO-70S materials are safe, non-toxic and do not release water that is hazardous to human health and the environment. - Page 3 ATTENTION! The efficiency of the RO-70S depends on the pressure of the water supply. Reliable operation of the RO-70S at a pressure in the water pipes of less than 0.2 MPa (29 psi) is not guaranteed. 1. Under reduced pressure in the water supply system, to obtain the optimum drainage ratio and clean water it is recommended to use a pressure boost kit.
- Page 4 5. INSTALLING RO-70S ATTENTION! Installation of RO-70S must be performed by specialists authorized to carry out this type of work. Fig. 4 Handset JG 1/4 with pressed metal hub Handset JG 3/8 Handset JG 1/4 Fig. 5 Cold Water Pipe water...
- Page 5 * The manufacturer reserves the right to use the connection points and Figure 6 faucet of a similar design. If necessary, contact the after-sales service. ** The crevice insert is installed only for the water with a high content of mechanical impurities in the water. AQUAPHOR RO-70S | Owner’s manual...
- Page 6 Figure 7 fig. 7b. Connect the JG 1/4” blue (d 6.35 mm) L = 0.17 m inlet fitting (fig. 13) to the RO-70S body in accordance with the diagram (fig. 2). 6. STARTING RO-70S To start the RO-70S, it is necessary to connect the supply pipes and carry out the procedure for rinsing the cartridges and the membrane.
- Page 7 In the first week of operation of the RO-70S, when the automatic valve is switched, noise may be observed associated with the release of air from the internal cavities of the RO-70S. After a while, this process will stop. This is not a malfunction.
-
Page 8: Replacing Cartridges
• Replace the membrane cartridge with the service plug (fig. 10). • Set the input tap on the connection node to the Open position and make sure that the RO-70S is sealed. • Carry out the procedure “Rinsing the pre-treatment and conditioning unit” (see p. 8). -
Page 9: Warranty
After that, you can use the water purifier. If you have not used RO-70S for more than 4 weeks, perform the full wash cycle according to the instructions in section 6 “Starting the RO-70S” in this manual ATTENTION! Do not drink water that was obtained during rinsing. -
Page 10: Exclusions And Limitations
• Damage or loss resulting from removal, improper repair, modification of the product, or improper maintenance including damage caused by chlorine or chlorine related products. • Damage or loss resulting from acts which are not the fault of Aquaphor or which the Product is not specified to tolerate. -
Page 11: Troubleshooting Table
Closed connection cock Open the connection node tap Low inlet pressure Install a booster pump for the whole home or specifically for the RO-70S Foreign object in one of the supply tubes Contact the after-sales service Replace the water conditioning module... -
Page 12: Installation Information
Serial # Date of Sell Seller’s stamp Seller’s signature Please visit our website and register your RO at aquaphor.com/register for manufacturer’s warranty. Installation information Installation is carried out: Name of the company which carried out installation: Name of the service engineer: Service engineer’s signature:...
