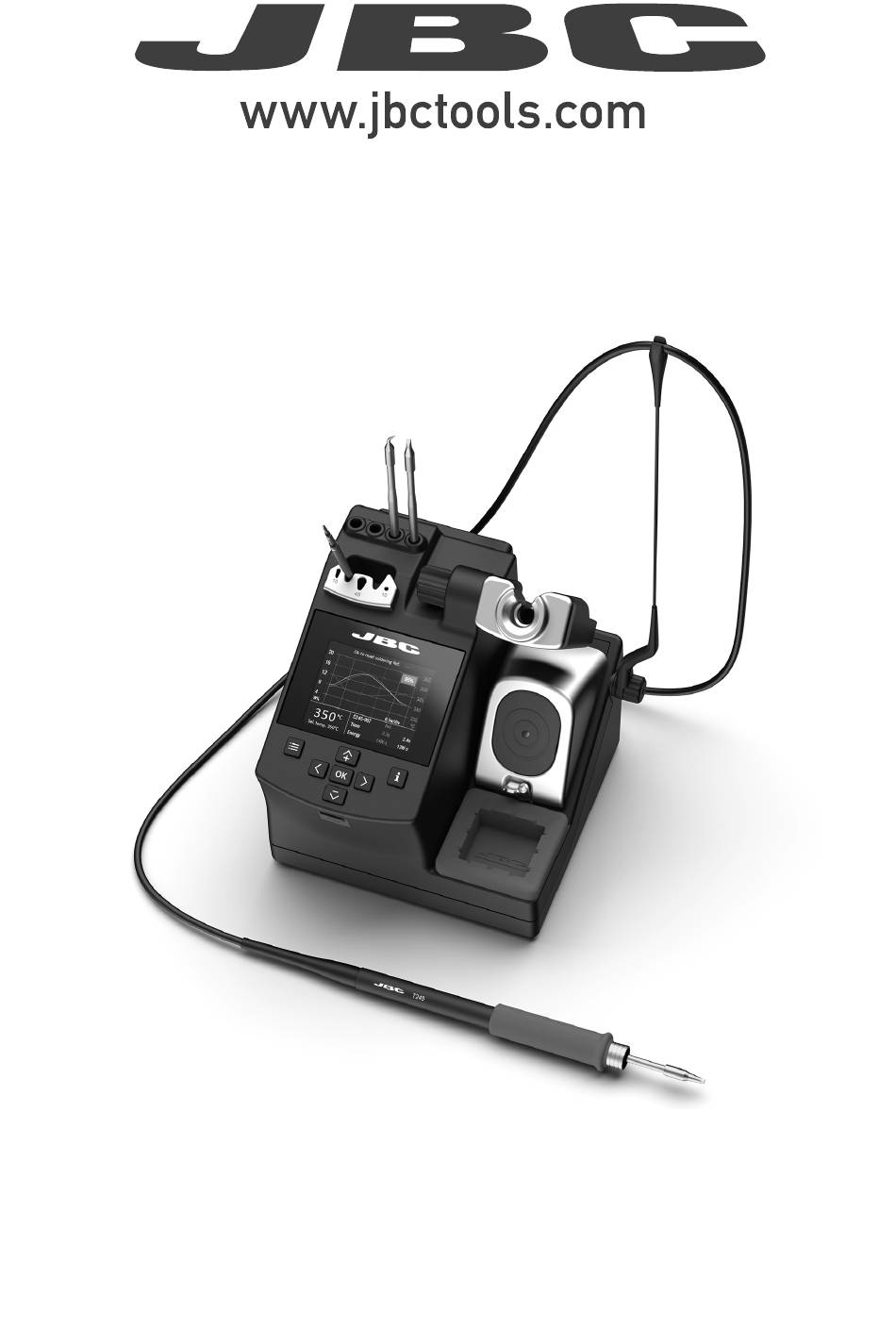

INSTRUCTION MANUAL
CDEB
Soldering-Assistant Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDEB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc CDEB

Summary of Contents for jbc CDEB

  • Page 1 INSTRUCTION MANUAL CDEB Soldering-Assistant Station...

  • Page 2: Packing List

    This manual corresponds to the following references: CDE-9BQA (100V) CDE-1BQA (120V) CDE-2BQA (230V) Packing List The following items are included: 1 unit General Purpose Handle ...... 1 unit Control Unit .......... Ref. T245-A Power Cord ............ 1 unit Brass Wool..........1 unit Ref.

  • Page 3: Features And Connections

    para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Adjustable Tool Holder Adjustable Cable Collector 100 mm Cartridge Holder Cartridge Exchanger 80 mm Display Tip Cleaner with Antisplash 60 mm Membrane (Brass Wool inside) USB-A Connector Wiper 50 mm T245...
  • Page 4 Sel. temp. Actual Temp: 290ºC 325ºC Delay to hiberna�on: 9:43 CDEB Work Display Power Power C210009 C210009 CDEB offers an intuitive user interface which provides quick access to station parameters. Original PIN: 0105 SOLDERING AID T245 System 19:29 19:29 Notifications Sleep º...
  • Page 5 para manuales - color gris 200 mm Soldering Assistant 130 mm 130 mm The Soldering Assistant allows to analyze and compare manual soldering processes in real time, obtaining a qualification of the process. 100 mm The station compares all new solderings with the reference soldering profile. According to the soldering performed the station gives the user feedback, displaying a color - red or green - along 19:29 19:29...
  • Page 6 Min 200 Back Back Tool Settings Tool Settings Counters Counters Reset Reset º Exit Exit Sleep 1. Soldering Assistant Activation Access to station menu by pressing 19:29 19:29 Back Back Mode Mode Ok to reset s Language Language INFO 19:29 19:29 Basic Basic...
  • Page 7 Min 200 Min 400 para manuales - color gris 200 mm 350 ºC Time Max temp ºC ºC ºC 0.5s/div 0.5s/div 0.5s/div ºC ºC s/div 0.5s/div Min temp C210009 Ref. C210009 C210009 Ref. Ref. C210009 Ref. º º º ºC º...
  • Page 8 ºC ºC 0.5s/div 0.5s/div C210009 C210009 Ref. Ref. º º Time 2.3s 1.3s Time 2.2s 2.4s 6. Working With Soldering Assistant Sel. temp. 350ºC Energy 14W·s 8W·s Sel. temp. 350ºC Energy 18W·s 17W·s Sleep Perform solderings and the station will compare them with the soldering reference. 19:29 19:29 19:29...

  • Page 9: Operation

    130 mm 130 mm JBC’s Most Efficient Soldering System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life is five times longer than with other brands.

  • Page 10: Compatible Cartridges

    Compatible Cartridges These stations work with C245 Cartridges and T245 Handles. The CDEB stations work with C245 cartridges and T245 handles. Find the model that best suits your soldering needs at www.jbctools.com Find the model that best suits your soldering needs in www.jbctools.com ø...

  • Page 11: Changing Grips

    para manuales - color gris 200 mm Changing Grips* 130 mm 130 mm Replace the soft foam grips easily using slip-on tabs. Note: Choose the correct grip depending on your handle model. D-Q: D-Q: Handles Green grips Blue grips Black grips 100 mm T210, T210P, T210N T8658...

  • Page 12: Tip Cleaner

    Leaves a small layer of solder on the tip preventing oxidation between cleaning and rewetting. If the tip is very dirty, JBC recommends first cleaning it with the wiper to remove excess solder. Wiper Ref. CL7984 A temperature-resistant receptacle for removing...
  • Page 13 para manuales - color gris 200 mm 130 mm 130 mm Wool/Brush Replacement 1. Unlock the splashguard. 2. Lift off the splashguard and change the worn brasswool/brush for a new one. 100 mm Wool Lock 80 mm 60 mm More cleaning options: 50 mm Inox Wool* Metal Brush*...

  • Page 14: Menu Settings

    (e. g. riveting). requires more power Min. temp. by default is 200ºC (e.g. multilayered or high (392ºF). This is considered to dissipation boards), JBC be a proper starting point for strongly recommends to leaded applications. use preheaters.
  • Page 15 When the user changes adjustment between the (± 90°F) to achieve zero the cartridge type, the selected temperature and the deviation. JBC strongly parameter should be reset current one. recommends the use of TID-A to 0°C/F or to the value or TIA-A Thermometers to needed for this cartridge.
  • Page 16 Tool Settings Parameter Description Recommendations Warnings Temp Level Set The user can set up to 3 diffe- Switch between 3 different rent temperatures. leves by just one “click”. Set them according to the allowed values for your soldering applications. Sleep Delay Because our tools reach the Set the time that the tool working temperature from the...

  • Page 17: Usb Connectors

    USB Connectors 130 mm 130 mm Download the latest software from our website to improve your soldering station. Station Update 100 mm Download the JBC Update File from www.jbctools. com/software.html 80 mm Insert the USB flash drive Update with the file downloaded to the station.

  • Page 18: Maintenance

    - Periodically check all cables. - Replace any defective or damaged pieces. Only use original JBC spare parts. - Repairs should only be performed by a JBC authorized technical service. EARTH When this warning appears on the main FUSE screen, earthing fuse must be replaced.
  • Page 19 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.
  • Page 20 Notes...
  • Page 21 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
  • Page 22 Notes...

  • Page 23: Specifications

    - color gris 200 mm Specifications 130 mm 130 mm CDEB Soldering-Assistant Station 100 mm Ref.: CDE-9BQA 100V 50/60Hz. Input fuse: T2A. Earthing fuse: F1.25 A. Output: 23.5V. Ref.: CDE-1BQA 120V 50/60Hz. Input fuse: T2A. Earthing fuse: F1.25 A. Output: 23.5V.
  • Page 24 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
