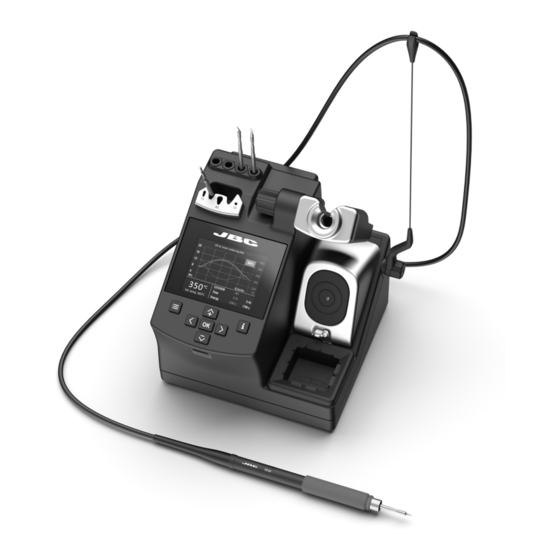

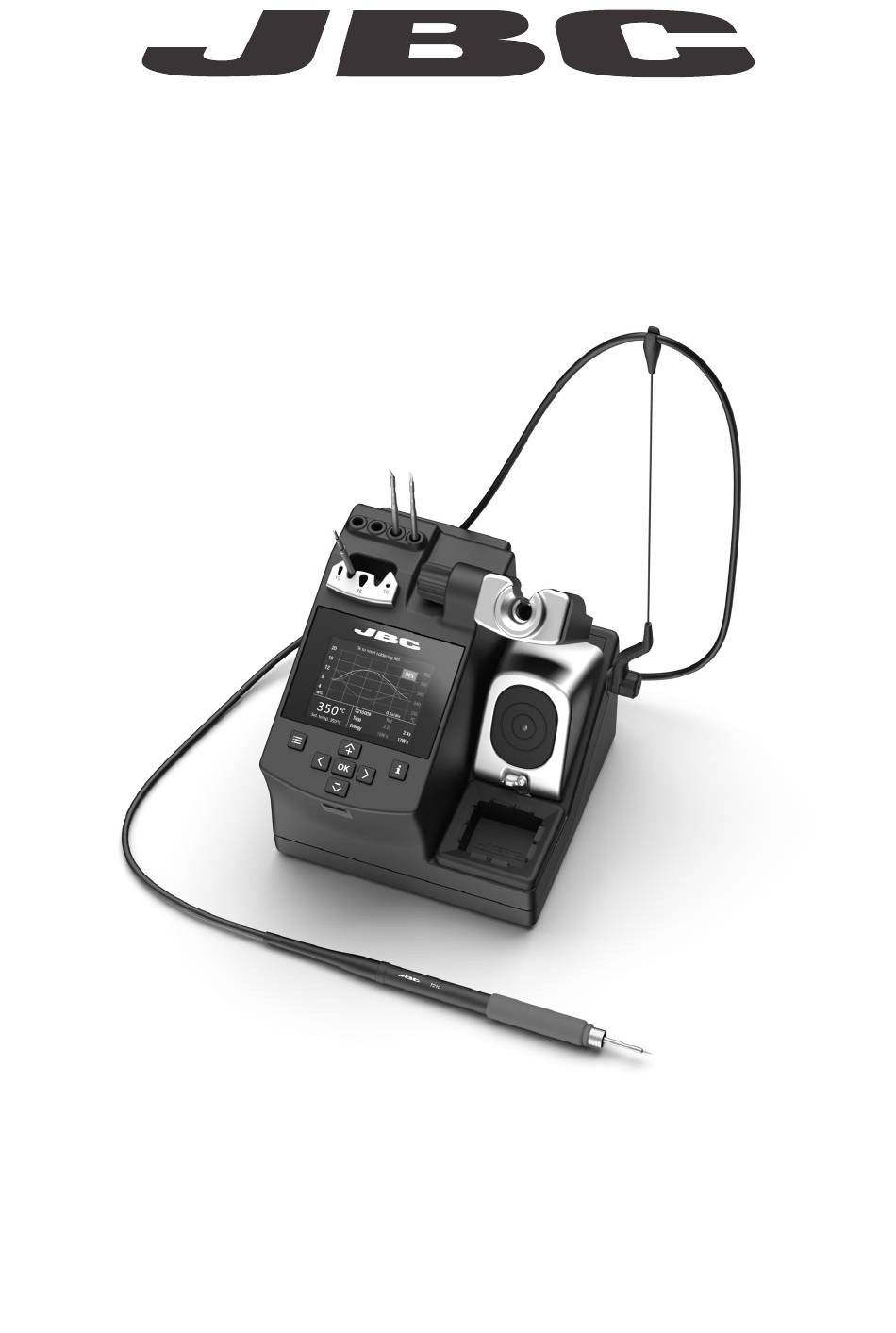

- Page 1 INSTRUCTION MANUAL CDES Precision Soldering-Assistant Station...
-
Page 2: Packing List
This manual corresponds to the following references: CDE-9SQA (100V) CDE-1SQA (120V) CDE-2SQA (230V) Packing List The following items are included: Control Unit .......... 1 unit Precision Purpose Handle ....1 unit Ref. T210-A Power Cord ............ 1 unit Brass Wool..........1 unit Ref. -
Page 3: Features And Connections
w w w.jbctools.com Features and Connections Adjustable Stand: Intelligent Cable Collector Heat Management Cartridge Storage Quick Tip Changer Process Screen Tip Cleaner Brass Wool USB-A Connector with Antisplash Membrane and Wiper Precision Purpose Handle Ref. T210-A Equipotential Connection Pedal Connector USB-B Connector Main Switch Earthing Fuse... -
Page 4: Troubleshooting
CDES Work Screen The CDE offers an intuitive user interface which provides quick access to station parameters. Original PIN: 0105 System 19:29 19:29 Notifications Sleep Cartridge º Current Tip Temperature Tool in the stand Selected C210009 Sel. temp. Actual Temp: 290ºC Temperature 325ºC... - Page 5 w w w.jbctools.com Soldering Assistant The Soldering Assistant allows to analyze and compare manual soldering processes in real time, obtaining a qualification of the process. The station compares all new solderings with the reference soldering profile. According to the soldering performed the station gives the user feedback, displaying a color - red or green - along with the percentage of similarity.
- Page 6 Maximum temp 350ºC Maximum temp 350ºC Mode Mode Minimum temp 200ºC Minimum temp 200ºC General Se�ngs General Se�ngs Red limit Red limit Port Se�ngs Port Se�ngs Sound Sound Counters Counters Temp units ºC Temp units ºC Reset 1. Soldering Assistant Activation Reset Date&Time 02/06/2021, 15:01...
- Page 7 w w w.jbctools.com 4. Acceptance Limits Setting The JBCs default percentage is: 0-60% 61-100% 19:2 19:29 19:29 SOLDERING JOINT INFO 19:29 Ok to reset soldering Ref. Ok to reset soldering Ref. Ok to reset soldering Ref. Language Ref. Diff. Last Mode Sel.
- Page 8 6. Working With Soldering Assistant Perform solderings and the station will compare them with the soldering reference. 19:29 19:29 SOLDER Ok to reset soldering Ref. Ok to reset soldering Ref. Sel. temp. Cartridge Time Max temp ºC ºC 0.5s/div 0.5s/div Min temp C210009 C210009...
-
Page 9: Operation
Operation The JBC Most Efficient Soldering System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life increases by 5. 1. Work 2. -
Page 10: Compatible Cartridges
Compatible Cartridges This stations work with C245 cartridges and T245 handles. The CDES stations work with C210 cartridges and T210 handles. Find the model that best suits your soldering needs in www.jbctools.com Find the model that best suits your soldering needs in www.jbctools.com ø... - Page 11 w w w.jbctools.com Changing the Grips Replace the grips easily using the slip-on tabs. Note: Choose the correct grip depending on your handle D-Q: D-Q: model. Handle ref.: T245-A / T245-C / T245-GA T210-A / T210-NA T245-PA T210-PA Grip ref.: 0016057 (green) 0018658 (green) 0021528 (blue)
-
Page 12: Adjustable Stand
If the tip is very dirty, JBC recommends first cleaning it with the wiper to remove excess solder. Wiper Ref. CL0160 A temperature resistant receptacle for removing... -
Page 13: Removing The Splashguard
w w w.jbctools.com Removing the Splashguard 1. Unlock the splashguard. 2. Lift off. Lock More cleaning options (not supplied): Inox Wool Metal Brush Ref. CL6205 Ref. CL6220 Stronger cleaning When used carefully, method than brass it provides a more wool. thorough cleaning. -
Page 14: Menu Settings
(HMP) requires more power Min. temp. by default is 200ºC or plastics (e. g. riveting). (e.g. multilayered or high (392ºF). This is considered to dissipation boards), JBC be a proper starting point for strongly recommends to leaded applications. use preheaters. -
Page 15: Port Settings
When the user changes adjustment between the (± 90°F) to achieve zero the cartridge type, the selected temperature and the deviation. JBC strongly parameter should be reset current one. recommends the use of TID-A to 0°C/F or to the value or TIA-A Thermometers to needed for this cartridge. - Page 16 Port Settings Parameter Description Recommendations Warnings Temp Level Set The user can set up to 3 diffe- Switch between 3 different rent temperatures. leves by just one “click”. Set them according to the allowed values for your soldering applications. Because our tools reach the Sleep Delay Set the time that the tool working temperature from the...
-
Page 17: Usb Connectors
JBC Web Manager www.jbctools.com/manager.html Manage and monitor as many stations as your PC can handle by using the JBC Web Manager. You can export data to another PC. any JBC station Cable USB AB... -
Page 18: Maintenance
2. Insert the new fuse into the fuse holder and return it to the station. EARTH TOOL When this warning appears on the FUSE main screen Earthing Fuse must be replaced - Repairs should only be performed by a JBC authorized technical service. - Page 19 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cable must be plugged into approved bases. Make sure that it is properly grounded before use.
- Page 20 Notes...
- Page 21 w w w.jbctools.com Notes...
- Page 22 Notes...
-
Page 23: Specifications
Specifications CDES Precision Soldering-Assistant Station Ref.: CDE-9SQA 100V 50/60Hz. Input fuse: T2A. Earthing fuse: F1.25 A. Output: 23.5V. Ref.: CDE-1SQA 120V 50/60Hz. Input fuse: T2A. Earthing fuse: F1.25 A. Output: 23.5V. Ref.: CDE-2SQA 230V 50/60Hz. Input fuse: T1A. Earthing fuse: F1.25 A. Output: 23.5V. - Page 24 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
