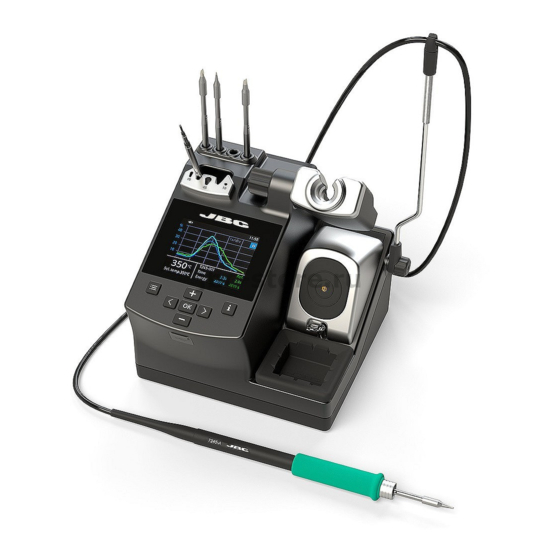

jbc CDE-1BQA Instruction Manual

Soldering-assistant station
Hide thumbs Also See for CDE-1BQA:
Table of Contents

Advertisement

Quick Links

Download this manual
www.jbctools.com
INSTRUCTION MANUAL
CDE-B
Soldering-Assistant Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDE-1BQA and is the answer not in the manual?

Questions and answers

Related Manuals for jbc CDE-1BQA

Summary of Contents for jbc CDE-1BQA

  • Page 1 www.jbctools.com INSTRUCTION MANUAL CDE-B Soldering-Assistant Station...

  • Page 2: Packing List

    This manual corresponds to the following references: CDE-1BQA (120V) CDE-2BQA (230V) CDE-9BQA (100V) Packing List The following items are included: CDE Control Unit .......... 1 unit General Purpose Handle ...... 1 unit Ref. T245-A Power Cord ............ 1 unit Brass Wool..........1 unit Ref.

  • Page 3: Features And Connections

    w w w.jbctools.com Features and Connections Adjustable Stand: Intelligent heat management Cable Collector Cartridge Storage Quick Tip Changer Process Screen Tip Cleaner Brass Wool USB-A Connector with Antisplash Membrane and Wiper General Purpose Handle Ref. T245-A Equipotential Connection Pedal Connector USB-B Connector Main Switch Earthing Fuse...

  • Page 4: Adjustable Stand

    D-Q: on the tip preventing oxidation between cleaning and rewetting. If the tip is very dirty, JBC recommends first cleaning it with the wiper to remove excess solder. Wiper Ref. CL0160 A temperature resistant receptacle for removing...

  • Page 5: Removing The Splashguard

    w w w.jbctools.com Removing the Splashguard 1. Unlock the splashguard. 2. Lift off. Lock More cleaning options (not supplied): Inox Wool Metal Brush Ref. CL6205 Ref. CL6220 Stronger cleaning When used carefully, method than brass it provides a more wool. thorough cleaning.
  • Page 6 Changing the Grips Easily replace the grips using the slip-on tabs. Note: For the different handles are different grips avai- D-Q: D-Q: lable. Handels: T245-A / T245-C / T245-GA T210-A / T210-NA T245-PA T210-PA Grip ref.: 0016057 (green) 0018658 (green) 0021528 (blue) 0023310 (blue) 1.

  • Page 7: Compatible Cartridges

    w w w.jbctools.com Quick Tip Changer Save time and change cartridges safely without switching the station off. 1. Removing 2. Inserting 3. Fixing Place the handpiece in the Place the handpiece on top Use the holes for fixing the extractor and pull to remove of the new cartridge and cartridge* as follows: the cartridge.

  • Page 8: Operation

    Operation The JBC Most Efficient Soldering System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life increases by 5. 1. Work 2. Sleep 3.

  • Page 9: Troubleshooting

    Sleep º Tools T210 Cartridge C210-009 Tool in the stand Sel. temp. Actual Temp: 290ºC Temp adjust 0ºC w w w.jbctools.com 325ºC Delay to hiberna�on: 9:43 Temp level set Off CDE Work Screen C210-009 Power C210-009 Power Sleep delay None Sleep temp 150ºC The CDE offers an intuitive user interface which provides quick access to station parameters.
  • Page 10 Soldering Assistant The Soldering Assistant allows to compare manual soldering processes in real time, obtaining a qualification of the process. The system compares all new soldering profiles with the reference soldering profile. According to the soldering performed, the system reports on the percentage of similarity compared to the reference soldering profile.
  • Page 11 º 350ºC Cartridge C210-009 Tool in the stand Sel. temp. Actual Temp: 290ºC C210-009 Temp adjust 0ºC 325ºC Delay to hiberna�on: 9:43 Temp level set Off 2.3s C210-009 Power C210-009 Power Sleep delay None 350ºC Sleep temp 150ºC 340ºC Hiberna�on delay 10min w w w.jbctools.com 14W·s...
  • Page 12 SOLDERING JOINT INFO ring Ref. Ok to reset soldering Ref. Ok to reset soldering Ref. Ref. Diff. Last Sel. temp. 350ºC 350ºC Cartridge C210-009 C210-009 Time 2.4s 2.3s Examples Max temp 350ºC 350ºC ºC ºC ºC 0.5s/div 0.5s/div 0.5s/div Min temp 335ºC 340ºC C210-009...

  • Page 13: Menu Settings

    (e. g. riveting). (e.g. multilayered or high Min. temp. by default is 200ºC dissipation boards), JBC (392ºF). This is considered to strongly recommends using be a proper starting point for other aids like preheaters.
  • Page 14 It provides a more precise (± 90°F) to achieve zero error. the cartridge type, the adjustment between the JBC strongly recommends parameter should be reset selected temperature and the the use of TID-A or TIA-A to 0°C/F or to the value actual one.
  • Page 15 w w w.jbctools.com Tools Parameter Description Recommendations Warnings Because our tools reach the Sleep delay Set the time that the tool working temperature from the will remain at the selected deafult Sleep mode in only a temperature when in the stand few seconds, this parameter is before entering sleep mode.

  • Page 16: Usb Connectors

    JBC Web Manager www.jbctools.com/manager.html Manage and monitor as many stations as your PC can handle by using the JBC Web Manager. You can export data to another PC. any JBC station Cable USB AB...

  • Page 17: Maintenance

    2. Insert the new fuse into the fuse holder and return it to the station. EARTH TOOL When this warning appears on the FUSE main screen Earthing Fuse must be replaced - Repairs should only be performed by a JBC authorized technical service.
  • Page 18 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cable must be plugged into approved bases. Make sure that it is properly grounded before use.

  • Page 19: Specifications

    Specifications CDE-1BQA 120V 50/60Hz. Input fuse: T2A. Earthing fuse: F1.25 A. Output: 23.5V. CDE-2BQA 230V 50/60Hz. Input fuse: T1A. Earthing fuse: F1.25 A. Output: 23.5V. CDE-9BQA 100V 50/60Hz. Input fuse: T2A. Earthing fuse: F1.25 A. Output: 23.5V.
  • Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.

This manual is also suitable for:

Cde-2bqaCde-9bqa
