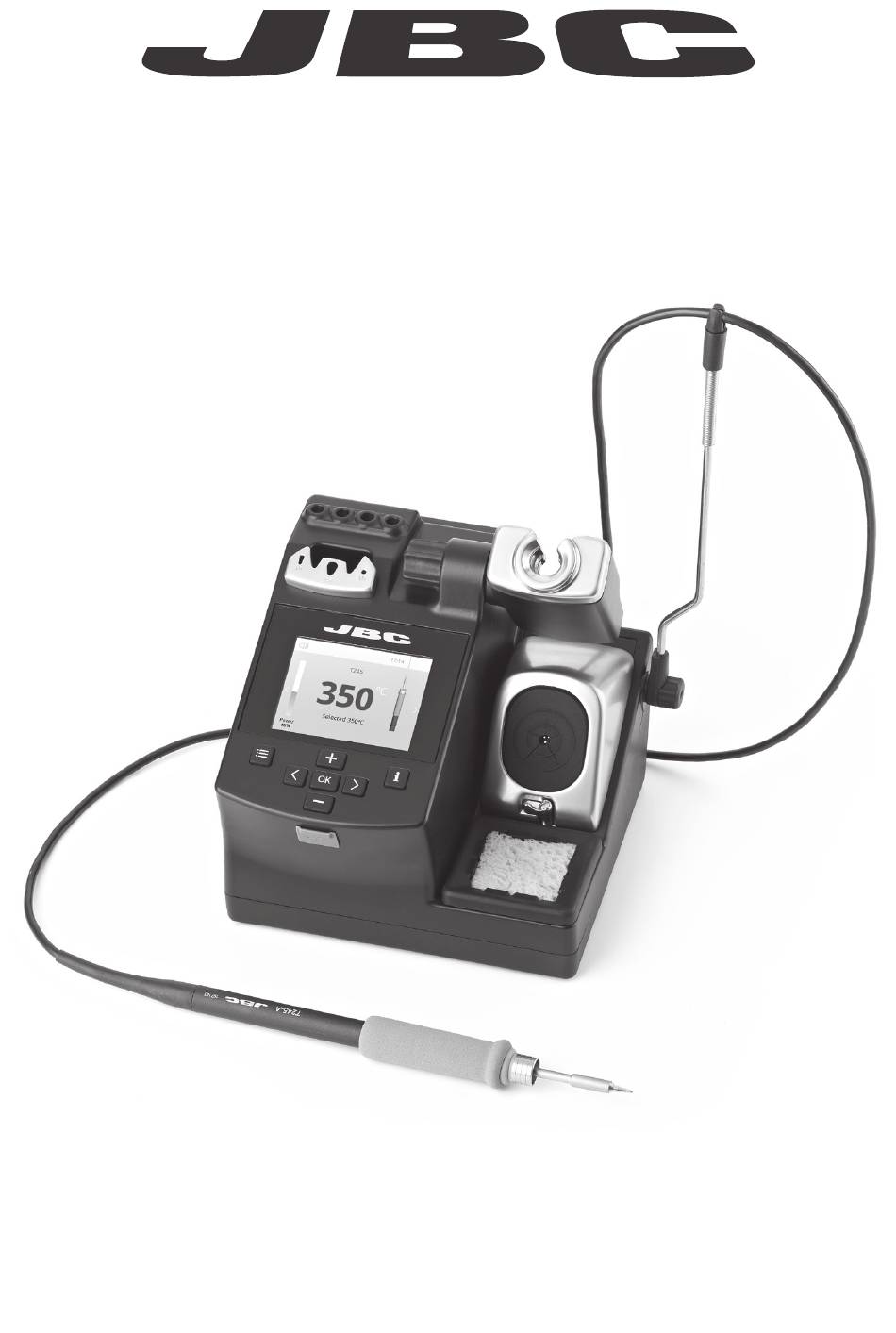

- Page 1 www.jbctools.com INSTRUCTION MANUAL Compact Soldering Station Ref. CDE-BA...
-
Page 2: Table Of Contents
Packing List The following items should be included: CDE Control Unit .......... 1 unit General Purpose Handle ...... 1 unit Ref. CDE-1BA (120V) Ref. T245-A CDE-2BA (230V) CDE-9BA (100V) Power Cord ............ 1 unit Cartridges ........... 2 units Ref. 0009417 (100V/120V) Ref. -
Page 3: Brass Wool
w w w.jbctools.com Features Cable collector Adjustable Stand: Intelligent Heat Management Cartridge storage Quick Tip Changer Process Screen Tip Cleaner brass wool with antisplash membrane General Purpose Handle Ref. T245-A Equipotential connection Pedal connector USB-B connector Main switch Earthing fuse Input Fuse Aux connector Power Socket... - Page 4 If the tip is very dirty, JBC recommends first cleaning it with the wiper to remove excess solder. Wiper Ref. CL0160 A temperature resistant receptacle for removing excess solder by gently tapping or wiping.
-
Page 5: Sponge
w w w.jbctools.com Removing the Splashguard 1. Unlock the splashguard. 2. Remove it. Lock More cleaning options (not supplied): Inox Wool Metal Brush Ref. CL6205 Ref. CL6220 Provides a superior When used carefully, cleaning of the tip. it provides a more thorough cleaning. - Page 6 Changing the Grips Easily replace the Grips for T245-A and T245-C using the slip-on tabs (Ref. 0016057) 1. Inserting tabs 2. Inserting handle 3. Removing tabs tabs new grip Put the slide-on tabs into the Push the grip with the tabs To remove the tabs, hold the new grip.
- Page 7 JBC Net Remotely manage and monitor as many stations as your PC can handle. 1. Download the JBC Manager software and the user manual from www.jbctools.com/manager.html 2. Connect the stations via USB-B connector and the PC will automatically detect them.
- Page 8 Operation The JBC Exclusive Heating System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life increases up to 5. 1. Work 2. Sleep 3.
- Page 9 w w w.jbctools.com Work Screen The CDE offers an intuitive user interface which provides quick access to station parameters. Original PIN: 0105 Status bar 17:14 Tool T245 in use ºC Temp. Levels Power indicator Power Displayed if temperature levels are activated Information Change...
- Page 10 Process analysis By pressing Graphics in the main MENU, temperature and power figures in real time are displayed for each port. This helps you decide which tip to use to obtain the best quality solder joints. Graphics Power (%) Temperature [ºC] Temp Power [%] Information...
- Page 11 (e. g. riveting). (e.g. multilayered or high Min. temp. by default is 200ºC dissipation boards), JBC (392ºF). This is considered to strongly recommends using be a proper starting point for other aids like preheaters.
- Page 12 Tool Settings Parameter description Recommendations Warnings Ideal for soldering more than Fix one temperature Fix a value within the one component at a specific temperature range of the temperature. The station will station (90-450ºC/190-840ºF). reject any attempt to change the temperature. Temperature levels set This allows a quick change Similar to “Fix one temp”...
- Page 13 Set values within ±50°C It provides a more precise (± 90°F) to achieve zero error. When the user changes adjustment between the JBC strongly recommends the cartridge type, the selected temperature and the the use of TID-A or TIA-A parameter should be reset actual one.
- Page 14 Be aware that if the station keeps working in this conditions, the tip to ground resistance would not meet the specifications. - Replace any defective or damaged pieces. Only use original JBC spare parts. - Repairs should only be performed by a JBC authorized technical service.
- Page 15 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cable must be plugged into approved bases. Make sure that it is properly grounded before use.
- Page 16 有害物质含量表 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 烙铁头 手柄 电源线 主机 电源插座 保险丝 主开关 电位连接 变压器 线路板 O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。...
- Page 17 w w w.jbctools.com Exploded View...
- Page 18 Notes...
- Page 19 w w w.jbctools.com...
-
Page 20: Manual
- USB connector station-PC Complies with CE standards. ESD protected housing. Warranty JBC’s two-year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
