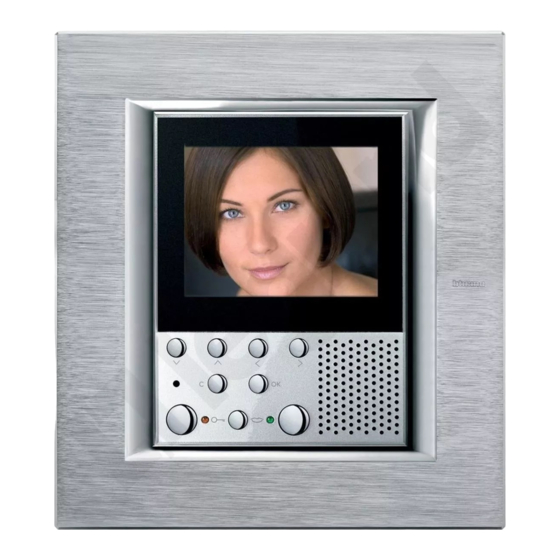

AXOLUTE VIDEO DISPLAY
Description
2-wire speaker phone video handset for fl ush mounted installation. With 2.5" colour LCD
display with PC customisable OSD navigation icon menu for the management of the
following MY HOME applications: video door entry system, temperature control, sound
system, automation (scenarios) and anti-intrusion. LED signalling for: call exclusion,
door status, and connection to the entrance panel.
Suitable for fl ush mounted installation using item 506 boxes. To be completed with front
cover plate (all those suitable for item 506E of the AXOLUTE series).
Programming and confi guration using the TiAxoluteDisplay software supplied with the
product.
Related items
item 506E 3+3 modules fl ush mounted box
item PB526 3+3 modules plasterboard box
item HA/HB4826... 3+3 modules front cover plate (see AXOLUTE fi nishes)
item 349319 VIDEO DISPLAY table-top base
Technical data
Power supply from SCS BUS: 18 – 27 Vdc
Stand by absorption: 10 mA
Max. operating absorption: 320 mA
Operating temperature: 5 - 40°C

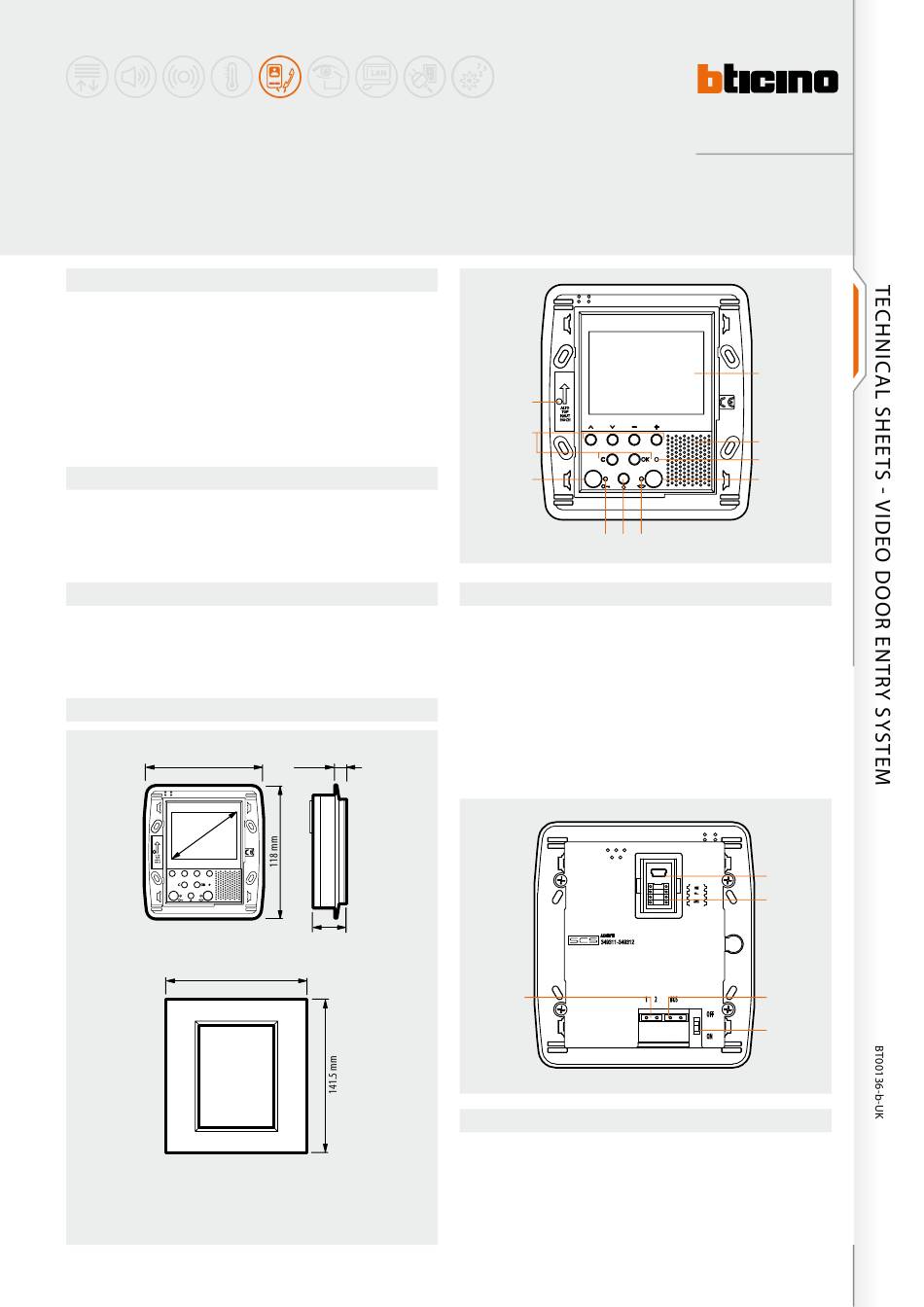

Dimensional data
105.5 mm
2,5"
127 mm
Maximum space requirement with front cover plate
Legend
1 - 2.5" colour LCD display
2 - Loudspeaker
3 - LED for call exclusion notifi cation
4 - Connection key; enable/disable the connection
5 - Connection status LED
6 - Entrance panel and cycling activation key
7 - Door lock status LED
8 - Tasto Door lock opening
9 - Navigation keys and confi rmation inside the menu
9.5 mm
10 - Microphone
30.2 mm
Legend
1 - Mini-USB connector for PC connection
2 - Confi gurator socket
3 - 2 WIRE SCS/BUS connection clamps
4 - Line termination ON/OFF micro switch
5 - Clamp for connection of the additional power supply
349311-349312-349313
10
9
8
Front view 7 6 5
AXOLUTE
5
1 2
Rear view
1
2
3
4
1
2
3
BUS
OFF
4
ON
1
