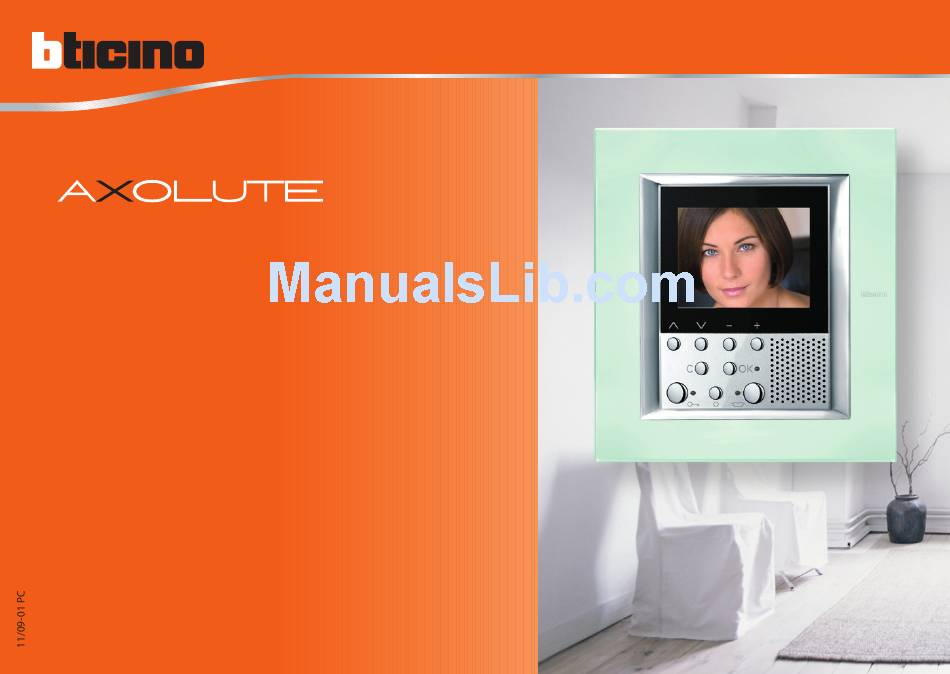

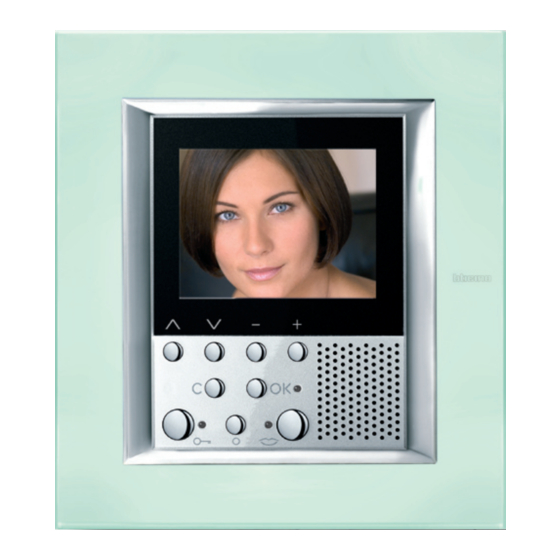

- Page 1 Contents Video Display User manual 349311 349312...
-
Page 3: Table Of Contents
Contents 1 Introduction and basic functions 4 House automation functions General information Scenarios ■ ■ Your Video Display: use it now! Alarms ■ ■ Video door entry function key Sound system ✔ ■ Navigation key Temperature control ✔ ■ Menu functions Multimedia menu ■... - Page 4 Notes...
-
Page 5: Introduction And Basic Functions
1 Introduction and basic functions General information ■ Your Video Display: use it now! ■ Video door entry function keys ✔ Navigation keys ✔ Menu function ■ Volume adjustment ✔ Monitor adjustment ✔ Camera swing ✔ Bells adjustment ✔ Paging ✔... -
Page 6: General Information
Signals the last alarm events which have occurred and the division of the system. Sound system: • Manages the BTicino digital sound system. Temperature control: • Displays and adjusts the temperature in the various zones of the home and the state of the control unit. -
Page 7: Video Door Entry Function Keys
Introduction and basic functions Video door entry function keys Navigation keys ✔ ✔ Activation Entrance Panel/Cycling It activates the switching on of the associated Entrance Allows access to the menu; confirms the Panel and, if present, allows the cycling display of the selection made. -
Page 8: Menu Functions
Introduction and basic functions Menu functions COMMUNICATION ■ Main menu example with programming of just the COMMUNICATION Use the OK key to access the main menu: commands. 1) Activation 2) Intercommunication 3) Camera 4) Cycle cameras 5) Settings SETTINGS ACTIVATION I HOUSE AUTOMATION Use the keys to select the functions from those available:... - Page 9 Introduction and basic functions CUSTOMISED MENU The customised menu allows more intuitive use of the Video Display The installer has given the exact configuration of your Video Display functions. In fact the menu only displays the functions in your My the tables below;...
-
Page 10: Volume Adjustment
Introduction and basic functions Volume adjustment ✔ NOTE: During a video door entry call you can access the Adjustments menu directly by pressing the key. Inside the menu select Select one of the items Adjustments (e.g. Bells) Press to access Adjust the volume to the level required. -
Page 11: Monitor Adjustment
Introduction and basic functions Monitor adjustment ✔ NOTE: During a video door entry call you can access the Adjustments menu directly by pressing the key. Select Adjustments Inside the menu select one of the items (e.g. Contrast) Press to access the menu COLOUR ADJUSTMENTS... -
Page 12: Camera Swing
Introduction and basic functions Camera swing ✔ NOTE: This menu can only be accessed during the connection with the entrance panel, if this is set up for the camera swing. Select Adjustments Adjust the correct camera angle Press to access the menu ADJUSTMENTS Select... -
Page 13: Bells Adjustment
Introduction and basic functions Bells adjustment ✔ You can associate one of sixteen tunes to each call event. Choose the tune Adjust the volume Select Confirm and then save the selection and return to the TUNE Select previous page Bells Press to access the menu... -
Page 14: Paging
Introduction and basic functions Paging ✔ If your system is set up, using the icon in the main menu a “paging” call can be sent to the system: Basic: only sound system • Enhanced: on the speaker* audio handsets as well •... -
Page 15: Trouble Shooting
2 Trouble shooting Push to Talk mode ✔... - Page 16 Trouble shooting PROBLEM SOLUTION On pressing the Entrance panel Activation/Cycling key ( ) no picture - the audio/video channel may be busy, wait for it to become free appears. (from 1 to 3 minutes) and try again. On pressing the OK key the menu does not switch on and the - the audio/video channel is busy, wait for it to become free (from 1 to 3 handset gives a busy sound minutes) and try again.
-
Page 17: Push To Talk Mode
Trouble shooting Push to Talk mode ✔ Receiving a call from the entrance panel. Press the Connection key to answer the call. The connection LED lights up. During the conversation you can activate the PUSH TO TALK function. Press the Connection key for at least 2 seconds to talk to the entrance panel. - Page 18 Trouble shooting Release the key to hear from the entrance panel. The LED becomes red. To end the connection press the connection key briefly. The LED goes out.
-
Page 19: Cctv Functions
3 CCTV functions Activation ■ Intercommunication ■ Camera ■ Cycle cameras ■ Staircase lights ■ Call exclusion ■... -
Page 20: Activation
CCTV functions Activation Intercommunication ■ ■ This function activates an actuator or an entrance panel. As an example This function allows conversation with other video handsets/ handsets you can activate the opening of a secondary gate. installed in your home or in other apartments. Press to access Press... -
Page 21: Camera
CCTV functions Camera Cycle cameras ■ ■ This function lets you monitor your home, activating one of the cameras This lets you display the pictures taken by all the cameras installed one in the apartment and in the common areas (e.g. garage or garden). after the other. -
Page 22: Staircase Lights
CCTV functions Staircase lights Call exclusion ■ ■ Lets you switch on the lights at the entrance or on the stairs. This lets you enable/disable the call bell. If the bell is disabled the call exclusion LED lights up. Press OK to access the Main menu Select the Staircase light function... -
Page 23: House Automation Functions
4 House automation functions Scenarios ■ Alarms ■ Sound system ■ Temperature control ■ Multimedia menu ■... -
Page 24: Scenarios
House automation functions Scenarios ■ Your Video Display communicates with the BTicino automation system, The installer has given a brief description of the scenarios set in the activating the scenarios. tables below, if he has not filled it in ask for it. -
Page 25: Alarms
House automation functions Alarms ■ Your Video Display communicates with the BTicino burglar-alarm Alarms icons key: system, in particular giving information on the system state, the active zones and the last 3 alarms given. ARMED ANTIPANIC DISARMED TECHNICAL Inside the Main menu... -
Page 26: Sound System
House automation functions Sound system ■ The information in the screen is read as indicated below: If your Video Display is connected to the BTicino sound system you can check it. Inside the Main menu select Sound system Press to access... -
Page 27: Temperature Control
House automation functions Temperature control ■ Your Video Display lets you control and adjust the temperature inside the home, interacting with the BTicino temperature control system. SOUND SYSTEM Inside the Main menu select Temperature control system Press to confirm 1) Press the keys to select amplifier TEMPERAT. - Page 28 House automation functions You can set the temperature on different levels in the various system zones. TEMP. CONTROL UNIT ZONES: 01 20.5 °C 20.5 °C 22.5 (+2) 18.5 °C 1) Press the keys to select Temperature control unit/Zones 1) Press the keys to select Temperature control unit/Zones 2) To set the manual mode and adjust the temperature use the 2) To set the manual mode and adjust the temperature use the...
- Page 29 House automation functions If your system has the Multimedia Interface (item 3465), you can access your menu via the dedicated icon. Inside the Main menu select Multimedia Press to access the menu MULTIMEDIA INTERFACE ✎ To navigate the menu of the multimedia interface use the same keys as its remote control: MY HOME...
- Page 30 Notes...
-
Page 31: Services
5 Services The “Settings” menu ■ Services ■ Professional studio ✔ Hands free ✔ Door state ✔ Alarm messages ✔ Messages ■... -
Page 32: The "Settings" Menu
Services The “Settings” menu ■ The main menu always has the SETTINGS icon. Selecting it gives access to a wide range of customisations which let you get the most from your Video Display. SETTINGS vOLUME ADJUSTMENT MONITOR SWING Inside the Main menu select Settings PROF. - Page 33 Services Professional studio ✔ The Professional Studio function lets you set the automatic opening of The Hands Free function automatically activates the microphone and the door lock when there is a call from the Entrance Panel. It cannot be loudspeaker when there is a call, avoiding having to press the Connection activated at the same time as the Door State function.
- Page 34 Services Door state Alarm messages ✔ ✔ This function tells you about the door lock state. If it is open the “door If it is activated the Video Display tells you if the antiintrusion system has lock LED” flashes, if it is closed it remains OFF. detected an alarm.
- Page 35 Services Messages ■ Select Messages Press to confirm MESSAGES - 1 + Select the message M e s s a g e f r o m you want to display s w i t c h b o a r d Press to return to the previous page...
- Page 36 BTicino SpA Via Messina, 38 20154 Milano - Italy www.bticino.it...
