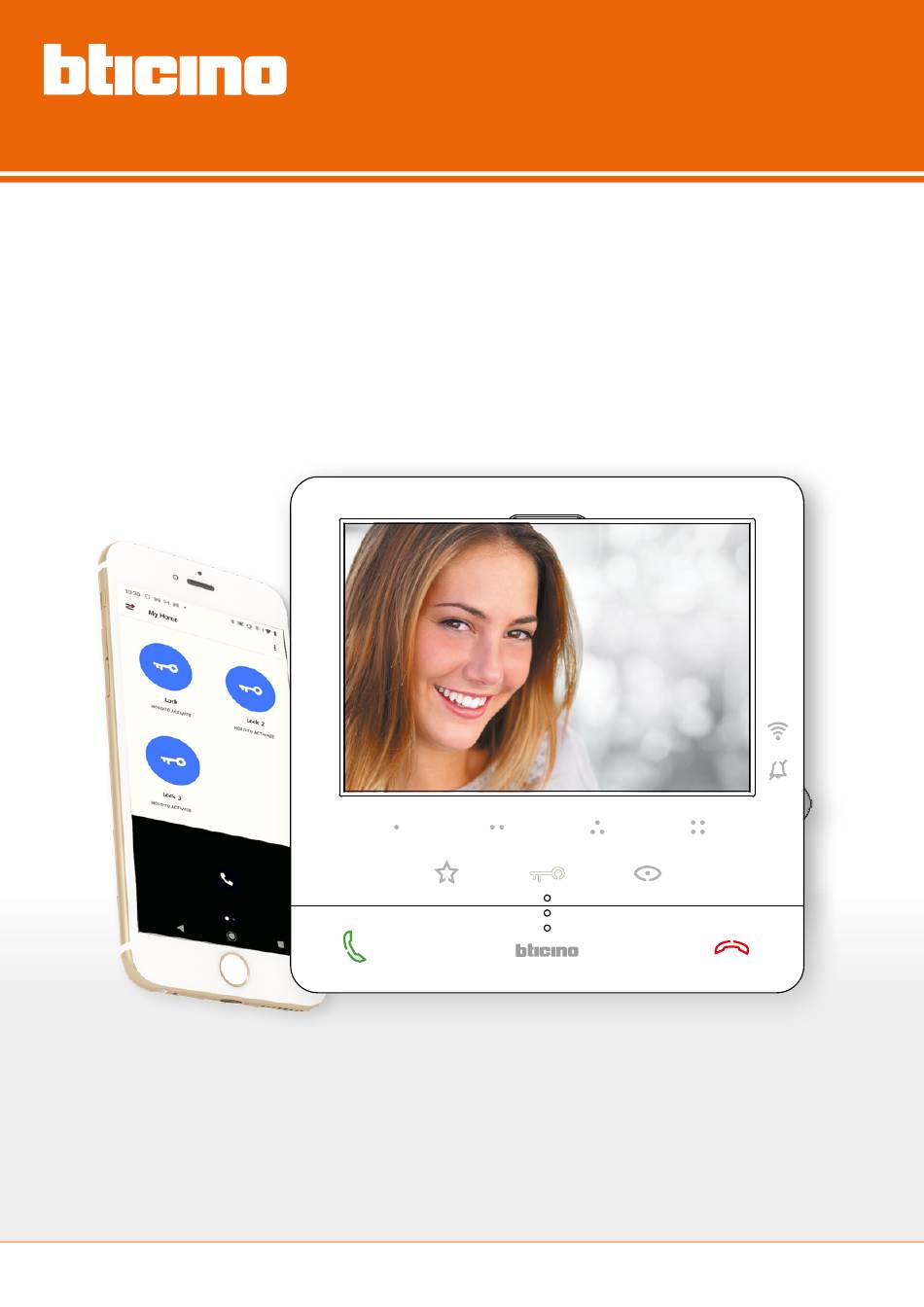

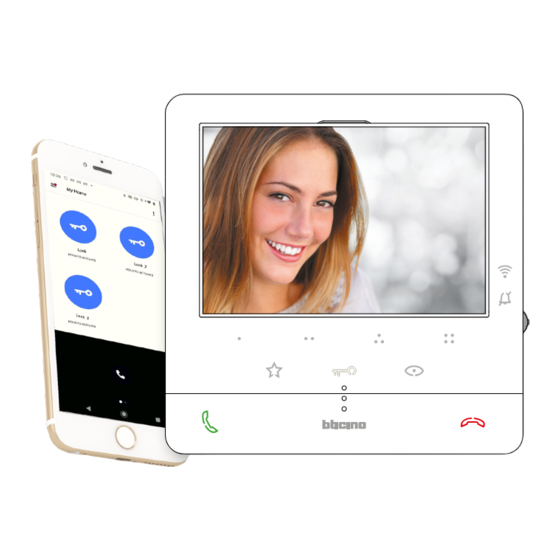

- Page 1 Classe100 X16E with Netatmo 344682 - 344782 - 344932 - 344786 User and installation manual RA00169AD-05/23-PC www.bticino.com...
- Page 2 Classe100 X16E User and installation manual...
-
Page 3: Table Of Contents
Classe100 X16E User and installation manual Contents Quick guide Answer a call Auto-switching on and camera scrolling Call another room or apartment (intercom) General information Warnings and recommendations Warnings and consumer rights Front view Function keys and status LEDs Rear view Installation Dimensional data and recommended installation heights Wall-mounted installation... -
Page 4: Quick Guide
Classe100 X16E User and installation manual Quick guide Answer a call 1. Touch to answer the call. 2. If necessary, during the call press the joystick to display the audio/video parameter adjustment icons. 3. Move the joystick up/down to select the type of parameter for which you want to modify the value (see the following table) among: –... - Page 5 Classe100 X16E User and installation manual 4. Touch to open the main Entrance Panel door lock 5. Touch to end the call.
-
Page 6: Auto-Switching On And Camera Scrolling
Classe100 X16E User and installation manual Auto-switching on and camera scrolling 1. Touch to display the Entrance Panels or the cameras in your system. 2. If necessary, touch to activate the audio communication 3. Touch to display another Entrance Panel or camera (using the scrolling service). When switching from one camera to the next the key lights up. - Page 7 Classe100 X16E User and installation manual 4. Touch to end camera display mode, or wait for the automatic switch off time to elapse.
-
Page 8: Call Another Room Or Apartment (Intercom)
Classe100 X16E User and installation manual Call another room or apartment (intercom) 1. For example, touch programmable key to activate the communication with the Internal Unit (e.g. configured as 2) Note: the programmable key to use for calling a certain Internal Unit is set by the installer (see Programming of the programmable keys). - Page 9 Classe100 X16E User and installation manual When the Internal Unit answers, the key starts flashing. Touch it to end the call or establish communication with the Internal Unit. Note: if during the conversation a call is received from the Entrance Panel, the conversation is interrupted in order to answer the Entrance Panel call.
-
Page 10: General Information
We would like to inform you that the service provided by BTicino by means of remote use via the app involves the use of data. The cost linked to data usage depends on the type of contract which the... -
Page 11: Warnings And Consumer Rights
Classe100 X16E User and installation manual Warnings and consumer rights Read carefully before use and keep for future reference Touching the units with wet hands is forbidden. Using liquid cleaners or aerosols is forbidden. Blocking the ventilation openings is forbidden. Modifying the devices is forbidden. -
Page 12: Front View
Classe100 X16E User and installation manual Front view 1. 5” (16:9) display 3. Tactile guides for the blinds 2. Speaker 4. Microphone Function keys and status LEDs Note: when pressed, the keys light up and emit a “beep” (that can be deactivated using the procedure). Note: the device initialisation procedure can last up to 2 minutes. - Page 13 Classe100 X16E User and installation manual Entrance panel/scrolling activation touch key This key has two functions: It can be used to switch on the camera of the associated Entrance Panel, and to scroll through the connected cameras and/or entrance panels. Communication disabling key Use this key to answer a call: when a call is answered, it switches on red;...
-
Page 14: Rear View
Classe100 X16E User and installation manual Rear view BTICINO V.le Borri, 231 21100 (VA) ITALY Made in Italy 2 1 5M 1 BTICINO V.le Borri, 231 21100 (VA) ITALY Made in Italy 1. Mini USB socket for device Firmware update 2. -
Page 15: Installation
Classe100 X16E User and installation manual Installation Caution: Installation, configuration, starting-up and maintenance must be performed exclusively by qualified personnel. Dimensional data and recommended installation heights Recommended height, unless different regulations are specified. 164 mm 20,5 mm Wall-mounted installation 502E - 503E Ø... - Page 16 Classe100 X16E User and installation manual...
-
Page 17: Installation On The Tabletop Bases 344692 (Optional)
Classe100 X16E User and installation manual Installation on the tabletop bases 344692 (optional) - Page 18 Classe100 X16E User and installation manual...
-
Page 19: Configuration
Classe100 X16E User and installation manual Configuration The device must be only physically configured. N - Internal Unit number The configurators connected to the N sockets of the device assign an identification number within the system to each video internal unit . The internal units must be configured in progressive order. Internal units with parallel connection (max 3 are allowed inside apartments without item 346850) must be configured using the same N configurator. -
Page 20: Programming Of The Programmable Keys
Classe100 X16E User and installation manual Programming of the programmable keys Your Classe100 X16E is equipped with keys that perform specific functions depending on the configurator connected to the M socket. MODE SERVICE NOTES M = 00 Internal intercom It sends the call to all the handsets with the same address Activation of the EP (configured with P+1) directly without call or activation of the actuator 346210... - Page 21 Classe100 X16E User and installation manual MODE SERVICE NOTES M = 02 Intercom inside the apartment, in systems with apartment interface 346850, or intercom among apartments in systems without apartment interface Intercom inside the apartment, in systems with apartment interface 346850, or intercom among apartments in systems without apartment interface EP door lock release (configured with P+1),...
- Page 22 Classe100 X16E User and installation manual MODE SERVICE NOTES M = 03 Intercom inside the apartment, in systems with apartment interface 346850, or intercom among apartments in systems without apartment interface Intercom inside the apartment, in systems with apartment interface 346850, or intercom among apartments in systems without apartment interface Intercom inside the apartment, in systems with...
- Page 23 Classe100 X16E User and installation manual MODE SERVICE NOTES M = 04 Activation of the EP (configured with P+1) directly without call or activation of the actuator 346210 (configured with P+1 and MOD=9) Intercom inside the apartment, in systems with apartment interface 346850, or intercom among apartments in systems without apartment interface...
- Page 24 Classe100 X16E User and installation manual MODE SERVICE NOTES M = 06 “Preset intercom” function with intercommunicating call to the Handset configured with N=1. From the system handsets it is possible to send an intercom call to the handset configured with N= 1. The indoor unit configured with N=1 can receive intercom calls, but is unable to send them Internal intercom It sends the call to all the...
- Page 25 Classe100 X16E User and installation manual MODE SERVICE NOTES M = 10 General intercom, it sends the call to all the apartment devices, in systems with apartment interface 346850, or intercom towards all the apartment devices in systems without apartment interface 346850;...
- Page 26 Classe100 X16E User and installation manual MODE SERVICE NOTES M = 13 Intercom among apartments in systems with apartment interface 346850 Intercom among apartments in systems with apartment interface 346850 Intercom among apartments in systems with apartment interface 346850 Intercom among apartments in systems with apartment interface 346850 M = 33 Key functions described above + Professional studio...
-
Page 27: Use From The Device
Classe100 X16E User and installation manual Use from the device Note: the background and icons shown may differ from those on the device. Functions Call another room or apartment NETATMO cameras (intercom) Door lock release PE or cameras direct auto-switching on Paging Answer a call When a call is received, the display shows different information depending on the type of caller:... - Page 28 Classe100 X16E User and installation manual 2. Touch to answer the call. The LED switches off. To end the call touch the (A) key, and to open the Entrance Panel door lock touch the (B) key.
-
Page 29: Call Another Room Or Apartment (Intercom)
Classe100 X16E User and installation manual Call another room or apartment (intercom) This section can be used to communicate with other video/audio Internal Units installed in your home, or in other apartments. The programmable key to use for calling a certain Internal Unit is set by the installer (see Programming of the programmable keys). - Page 30 Classe100 X16E User and installation manual When the Internal Unit answers, the key starts to flash; communicate with the Internal Unit, or touch to close the call. Note: if during the conversation a call is received from the Entrance Panel, the conversation is interrupted in order to answer the Entrance Panel call.
-
Page 31: Pe Or Cameras Direct Auto-Switching On
Classe100 X16E User and installation manual PE or cameras direct auto-switching on Using the automatic switch on key it is possible to display the main Entrance Panel camera and, if installed, scroll through other cameras/Entrance Panels. Using the programmable keys it is also possible to directly display a camera or Entrance Panel. The programmable key to use for calling a certain Entrance Panel is set by the installer (see Programming of the programmable keys). - Page 32 Classe100 X16E User and installation manual 3. Touch to display another Entrance Panel or camera (using the scrolling service). When switching from one camera to the next, the (A) key lights up. To end camera display mode wait for the switching off time to elapse or press the (B) key Note: switching from one camera to another is also possible without enabling the audio.
-
Page 33: Netatmo Cameras
Classe100 X16E User and installation manual NETATMO cameras If your home includes NETATMO cameras, after associating them to the Home + Security App you will be able to use them for video control directly from your Classe100 X16E with Netatmo. If your NETATMO account is associated to several homes, each with one or more cameras, the full home list will be displayed. - Page 34 Classe100 X16E User and installation manual LIVING ROOM 3. Move the joystick up/down to select the camera that you want to display. LIVING ROOM 4. Touch to activate the desired camera, (the image is displayed for three minutes).
- Page 35 Classe100 X16E User and installation manual 5. Touch to end.
-
Page 36: Door Lock Release
Classe100 X16E User and installation manual Door lock release It is possible to open the main Entrance Panel door lock, using the door lock key. Using the programmable keys, it is also possible to open the system door locks. The programmable key to use for opening a certain door lock is set during the configuration by the installer (see Programming of the programmable keys). -
Page 37: Paging
Classe100 X16E User and installation manual Paging This function can be used to send voice messages using the microphone of the Classe100 X16E through the speakers of the sound system. This function is enabled during the configuration by the installer (see Programming of the programmable keys) -
Page 38: Services
Classe100 X16E User and installation manual Services With preset systems it is possible to also enjoy a range of services, such as: Inductive loop (only item 344682) Door status Professional Studio (Office) Safe door lock Inductive loop (only item 344682) The INDUCTIVE LOOP service enables the device to be used by people wearing hearing aids with (T) selector. -
Page 39: Door Status
Classe100 X16E User and installation manual Door status This service indicates through the door lock LED if the entrance door is open or closed. This service is enabled during the configuration by the installer (see Programming of the programmable keys). Note: the service is active only if required by the system - accessory devices are required. -
Page 40: Professional Studio (Office)
Classe100 X16E User and installation manual Professional Studio (Office) When a call is received from the Entrance Panel, this service automatically opens the associated door lock without the need for pressing the door lock control key. This service can be enabled during the configuration by the installer (see Programming of the programmable keys) and activated using the specific menu (see... -
Page 41: Safe Door Lock
Classe100 X16E User and installation manual Safe door lock When active, this service prevents the opening of the Entrance Panel door lock unless communication with the same is active. Therefore, the opening of the door lock is only permitted when Entrance Panel and Internal Unit are in voice communication. -
Page 42: Device Adjustments And Settings
Classe100 X16E User and installation manual Device adjustments and settings Using the joystick it is possible to perform adjustments (Adjustments and/or Parameter Adjustment menu during Audio/Video connection) and settings (Settings menu) Use of the joystick You must use the joystick on the side of the device to navigate on the menu and select the settings. -
Page 43: Wi-Fi Adjustments And Settings
Classe100 X16E User and installation manual Wi-Fi adjustments and settings Wi-Fi adjustments and settings menu From stand-by press the joystick to activate the display Move the joystick up/down to select the page among: You can download the Home + Security App from the Home + Security Stores. - Page 44 Classe100 X16E User and installation manual Wi-Fi settings page,where it is possible to enable/disable/ reset the Wi-Fi, perform the first association to the app and reset the device. Device info. Exit the menu.
- Page 45 Classe100 X16E User and installation manual Ringtone volume adjustment From stand-by press the joystick to activate the display and select the corresponding page. Home_Wi-Fi Press the joystick to adjust the volume. The ringtone is played at the set volume level. Move the joystick up/ down to select the volume level (1 –...
- Page 46 Classe100 X16E User and installation manual Activate/deactivate the professional studio-office function When a call is received from the entrance panel, this function automatically activates the associated door lock without the need for pressing the door lock control key. To enable this function, Classe100 X16E must be configured as shown in the Programming of the programmable keys.
- Page 47 Classe100 X16E User and installation manual WI-FI settings From stand-by press the joystick to activate the display and select the corresponding page. Press the joystick to select the page of interest. Enable/disable the Wi-Fi Network Home_Wi-Fi Note: to connect the device to the Wi-Fi network and to the app, you must first associate the Classe100 X16E to the Home + Security app.
- Page 48 Classe100 X16E User and installation manual Device reset CLASEE 100X RESET Exit the menu. Enable/disable the Wi-Fi Network In this page you can display the Wi-Fi network to which the device is connected and if necessary disable the connection. A Wi-Fi network name to which the device is connected;...
- Page 49 Classe100 X16E User and installation manual Reset the Wi-Fi network In this section it is possible to change the Wi-Fi network to which the device is connected, or the network password. 1. Press the joystick to reset the Wi-Fi network. WI-FI RESET 2.
- Page 50 Classe100 X16E User and installation manual Device reset This page can be used to reset the device. 1. Press the joystick to reset the device. CLASSE 100X RESET 2. Move the joystick down to select the confirmation icon. 3. Press the joystick to confirm.
- Page 51 Classe100 X16E User and installation manual Device info From stand-by press the joystick to activate the display and select the corresponding page. 1. Press the joystick to display the information. A Wi-Fi network name to which the Classe100 X16E Wi-Fi: --- is connected.
- Page 52 Classe100 X16E User and installation manual Audio/video parameter adjustments (function not available for the NETATMO cameras) During a connection to an Internal Unit, Entrance Panel or when using the Call home function with Home + Security app, it is possible to modify the speaker volume and, in case of video connection, the colour, contrast and brightness of the image.
- Page 53 Classe100 X16E User and installation manual Press the joystick to modify the level. Move the joystick up/ down to select the desired level. Press the joystick to confirm or wait for the timeout. Move the joystick up/ down to select another parameter or the last page to exit.
-
Page 54: Settings
Classe100 X16E User and installation manual Settings Settings menu From stand-by, press and hold down the joystick for about 5 seconds to activate the display and access the > 5 sec Settings menu Move the joystick up/down to select the page among: Enable/disable the key sound Associate a ringtone to an... - Page 55 Classe100 X16E User and installation manual Enable/disable the key sound This function enables/disables the BEEP when the keys are pressed. The function is disabled by default, to enable it follow the procedure below: From stand-by, press and hold down the joystick for 5 seconds to access the advanced menu and select the corresponding page.
- Page 56 Classe100 X16E User and installation manual ICON TYPE OF CALL Selection of the call ringtone from the MAIN ENTRANCE PANEL Selection of the call ringtone from the SECONDARY ENTRANCE PANEL FLOOR CALL ringtone selection INTERCOM CALL ringtone selection EXTERNAL INTERCOM CALL ringtone selection (interface 346850 only) Press the joystick to continue Move the joystick up/...
-
Page 57: Remote Use
Classe100 X16E User and installation manual Remote use Association of Classe100 X16E with Home+Security app You can interact with your Classe100 X16E with Netatmo using the free Home + Security app. After registering and authenticating, you must make the association with the device; at this point you can: –... - Page 58 Password in your home, you will be alerted wherever you are MyHOMEServer1 Smart home gateway for the integration of the BTicino professional burglar alarm system Videocitofono IP IP video door entry Your home, simply Answer the call and open the door...
- Page 59 Classe100 X16E User and installation manual 9. From stand-by press the joystick to activate the display. This screen is displayed to indicate that your Classe100 X16E has never been associated. The screen will disappear once the procedure has been completed successfully. Home + Security 10.
- Page 60 Classe100 X16E User and installation manual 11. Press the joystick to access the page. WI-FI OFF 12. Touch to activate the temporary Wi-Fi network created by your Classe100 X16E.
- Page 61 Classe100 X16E User and installation manual SOFTAP This screen appears, followed by a QR code.
- Page 62 Classe100 X16E User and installation manual SETUP Configuration Scan QR code Scan the setup code on Classe 100X screen with your smartphone. Scansiona il codice di setup dell'app Home + Security o Home + Control per continuare la configurazione OK, CODICE SCANSIONATO 13.
- Page 63 Classe100 X16E User and installation manual Classe100 X16E and the smartphone now start to exchange data. This procedure may take a few minutes. The completion of the association is confirmed by the confirmation screen. Configuration Congratulations! Your Classe 100X is now configured. Continue 19.
- Page 64 BTicino SpA Viale Borri, 231 21100 Varese www.bticino.com BTicino Spa reserves at any time the right to modify the contents of this booklet and to communicate, in any form and modality, the changes brought to the same.
