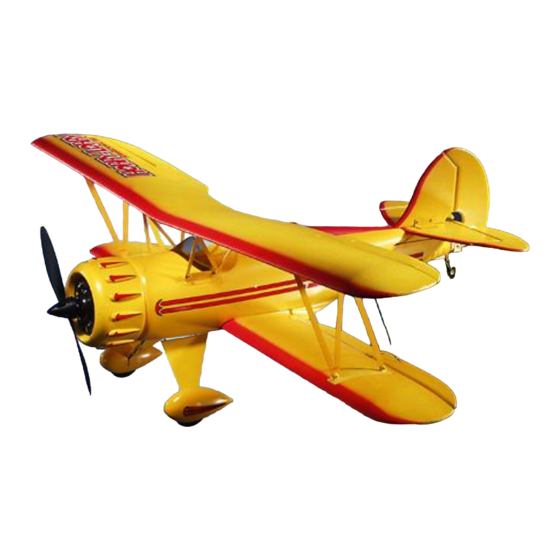

Hobby Lobby's "Waco Biplane RTF"
Wingspan:
Length:
Wing Area:
Flying Weight:
Radio controlled model aircraft are capable of inflicting serious injury and/or property damage if not assembled, operated, and
maintained in a competent and safe manner. If you are not already experienced with radio controlled models, we strongly suggest
Hobby-Lobby guarantees this kit to be free from defects in both material and workmanship at the date of purchase. This warranty
does not cover any component parts damaged by use or modification. In no event shall Hobby-Lobby's liability exceed the original
WARNING – THIS IS NOT A TOY!
that you find an experienced modeler to assist you.
cost of the purchased kit.
Completely read through this manual before starting construction.
39 in.
31 in.
503 in².
24 oz.
Warranty
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hobby-Lobby Waco Biplane RTF
Summary of Contents for Hobby-Lobby Waco Biplane RTF
- Page 1 Warranty Hobby-Lobby guarantees this kit to be free from defects in both material and workmanship at the date of purchase. This warranty does not cover any component parts damaged by use or modification. In no event shall Hobby-Lobby’s liability exceed the original cost of the purchased kit.
- Page 2 Before starting, use the Contents list to take an inventory and make sure it is complete. If any parts are missing or are not of acceptable quality, contact Hobby-Lobby Support at 1-866-WE-FLY-RC (1-866-933-5972) Contents List ¨ Pre-painted Fuselage (molded foam) ¨...
- Page 3 1. Locate fuselage and bag of assembly screws. Lay out screws is size order groups. 2. Locate horizontal tail and 2 screws. Position the tailplane in and screw in place. 3. Locate the vertical tail. Slide the wire from the tailwheel into the plastic mount on the bottom of the rudder.
- Page 4 6. Snug up screws but do not over tighten. 7. Screw cabane struts in place on fuselage using 2 small screws. Please refer to photo for correct orientation of cabane. Repeat for other cabane. 8. Locate lower main wing. Plug in aileron servo to receiver, there is an open extension for this.
- Page 5 11. Match the tops of the cabanes to the mounts on the bottom of the upper main wing. Screw in position with 2 small screws. Repeat for the other cabane 12. In a similar fashion attach the tops of the 2 "N"...
- Page 6 16. Battery slides toward the nose of the airplane in a pre-formed slot. Please refer to photo. 17. Leaving one nut on the motor shaft, insert the spinner backplate onto shaft till it engages with the nut. 18. Slip propeller onto shaft and secure with additional nuts.
- Page 7 21. Check that the control surfaces are at neutral. 22. With the trim adjustments on the transmitter in their middle position, the control surfaces on the model should be neutral. 23. Adjust the length of the pushrods as necessary. 24. The control throws should be approximately.
