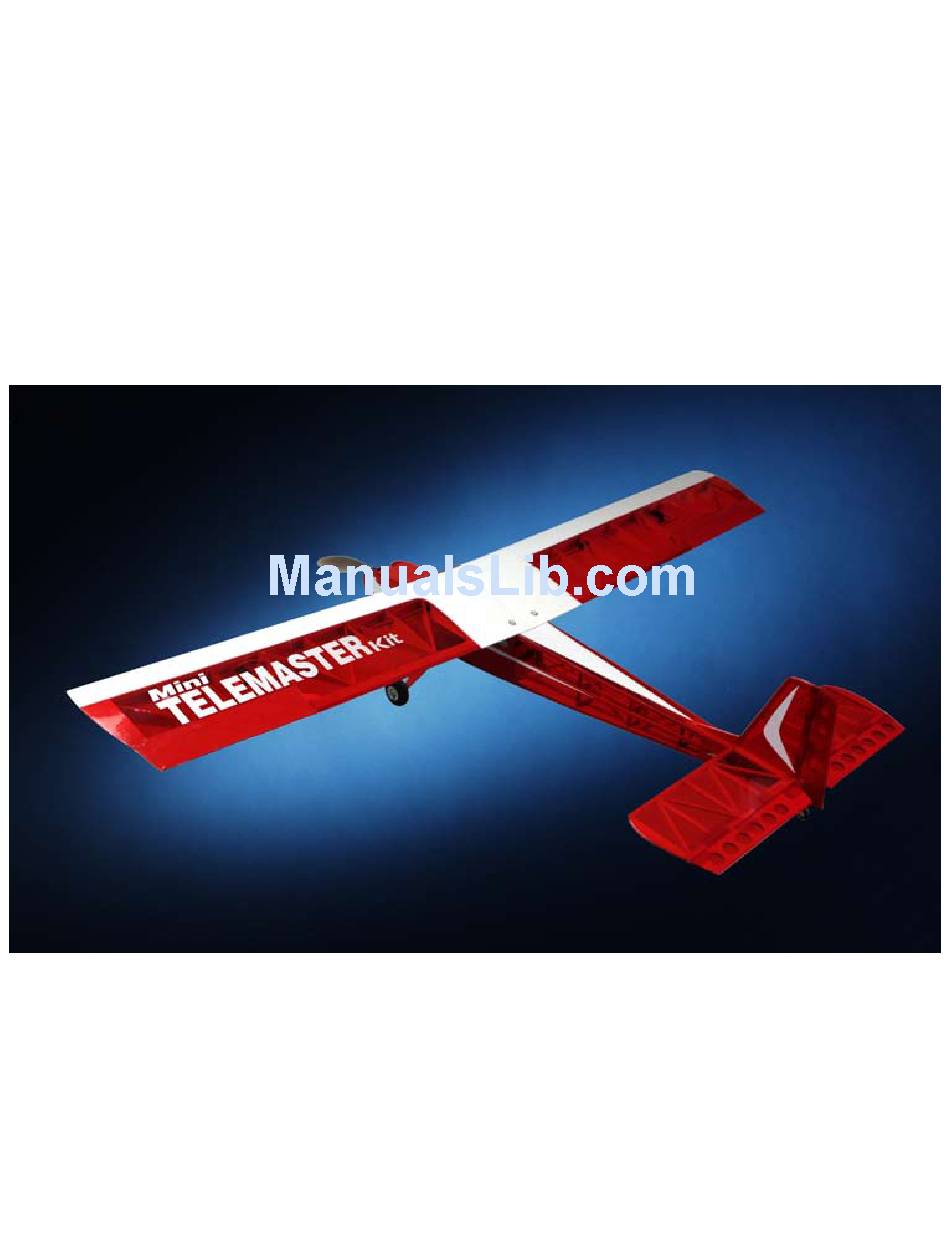

- Page 1 Mini Telemaster Aileron Wing Kit ASSEMBLY MANUAL Hobby Lobby International 5614 Franklin Pike Circle Brentwood TN 37027 USA Phone 866-512-1444 TEL12003 MADE IN THE USA...
- Page 2 Terminology used in this manual. With the precision of laser cut parts and notch and tab construction, the assembly and gluing sequence becomes very important. If components are glued in place to soon, they will not allow enough move- ment to install other components. When instructed to install a part, do only that. You will be instructed to glue it when it is no longer required to be moveable.
-
Page 3: Wing Assembly
Wing Assembly c 1 1. Assemble the trailing edge by gluing TE-A to TE-B as shown in the photo. Note that TE-B will stand proud of TE-A, this will be addressed later. c 2 Pin the bottom spar, a 1/8” X 1/4” balsa stick down to the plans in alignment with the draw- ing. - Page 4 c 8 Carefully align W1 with the root end of the plans and glue to bottom sheeting A, B and the bottom spar. Make user WJP is flat on the building board. Do not glue the bottom for- ward 1” of W1 to A, this will be glued to con- form to the bottom of the rib after removal from the plans.
- Page 5 c 16 16. Install and glue a 1/8” sq. balsa in the notches provided in the leading edge of each rib. This will serve to stiffen the top sheeting. c 17 Glue a piece of 1/8” square scrap to each side of the servo mount to help secure it to W7 and W8.
-
Page 6: Joining The Wing Halves
Joining the wing halves c 1 Divide the 1/8” dowel into two equal pieces. Install each half into the holes provided in the wing hook (WH). They should protrude at least a quarter inch on each side of WH. Glue the wing hook to one of the wing panels with Epoxy. Use a liberal amount of glue to install the wing joiner through WH and into the joiner box in the wing panel. - Page 7 c 5 Plane or sand the aileron leading edge to con- tour with the ribs. Note that this will include some material from the horn block. LEFT RIGHT ABOVE: Before and after contouring the leading edge and horn block to the ribs. c 6 Install and glue the 3/8”...
- Page 8 Part # Sheet # Material Size Usage BALSA 1/32” X 3” X 36” Sheeting part A BALSA 1/8” X 1.5” X 4.25” Aileron rib #1 BALSA 1/16” X 4” X 36” Aileron rib #3 BALSA 1/16” X 4” X 36” Aileron rib #4 BALSA 1/8”...
- Page 9 Kit inventory check off sheet TEL120003 Mini Aileron wing kit Materials Qty. Size Material 3/8" x 10" T.E. Stock Balsa 1/8" x 1/4" x 36" Balsa 1/8" x 1/8" x 36" Balsa 1/8" x 1" Dowel Hard Wood Assembly Manual .047"...
