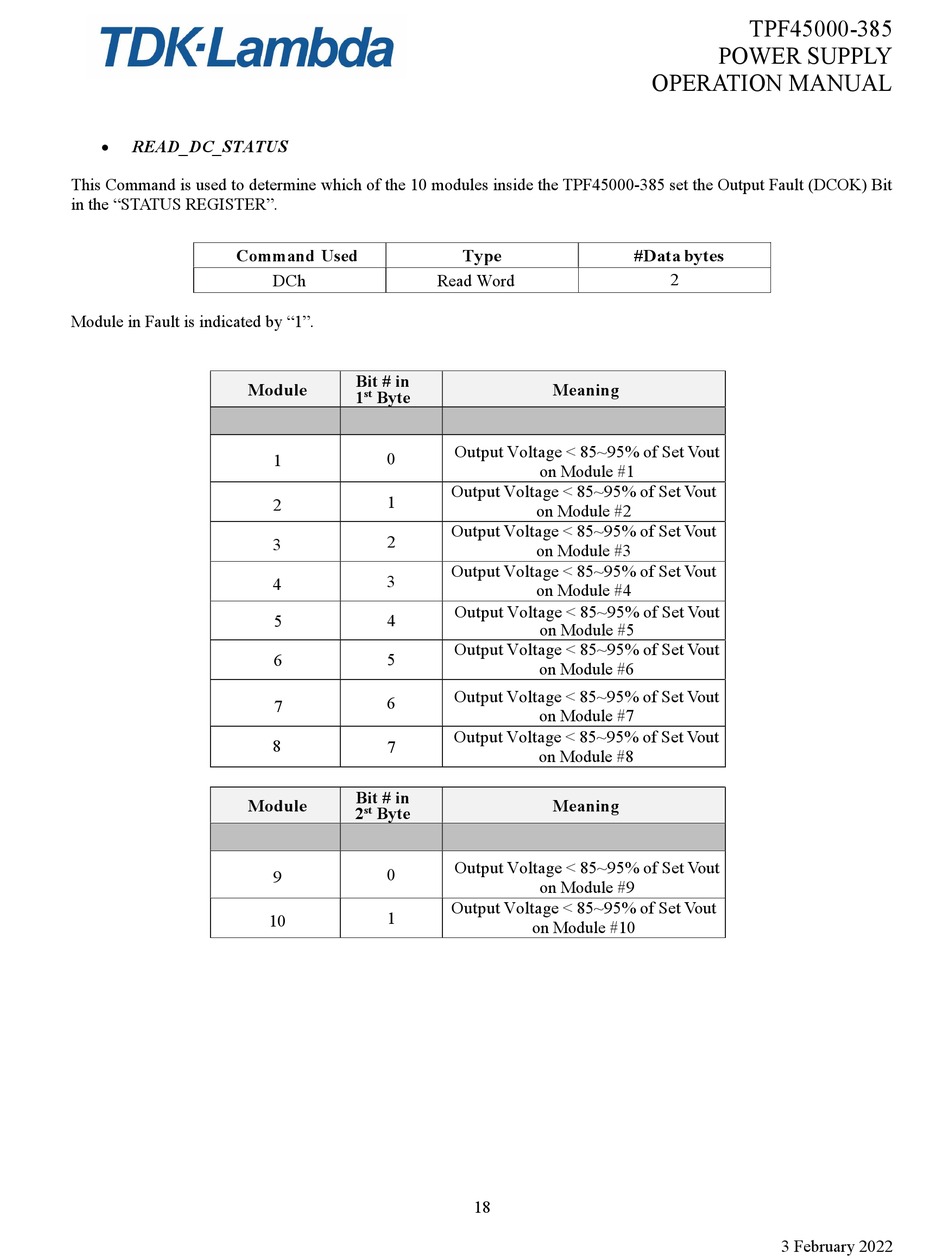

READ_DC_STATUS
This Command is used to determine which of the 10 modules inside the TPF45000-385 set the Output Fault (DCOK) Bit
in the "STATUS REGISTER".
Command Used
Module in Fault is indicated by "1".
Module
Module
DCh Read Word
Bit # in
1 st Byte
0
1
1
2
2
3
3
4
4
5
6 5
6
7
8 7
Bit # in
st
2 Byte
0
9
1
10
Type
Meaning
Output Voltage < 85~95% of Set Vout
on Module #1
Output Voltage < 85~95% of Set Vout
on Module #2
Output Voltage < 85~95% of Set Vout
on Module #3
Output Voltage < 85~95% of Set Vout
on Module #4
Output Voltage < 85~95% of Set Vout
on Module #5
Output Voltage < 85~95% of Set Vout
on Module #6
Output Voltage < 85~95% of Set Vout
on Module #7
Output Voltage < 85~95% of Set Vout
on Module #8
Meaning
Output Voltage < 85~95% of Set Vout
on Module #9
Output Voltage < 85~95% of Set Vout
on Module #10
