GENERAL SAFETY INSTRUCTIONS .............................................................................................................................. 2
High Voltage Warning ....................................................................................................................................................... 2
Critical Components ......................................................................................................................................................... 2
Servicing ........................................................................................................................................................................... 2
Safety Class of Protection ................................................................................................................................................. 2
Installation ........................................................................................................................................................................ 2
Ratings, Specifications and Features .................................................................................................................................... 4
Emissions .......................................................................................................................................................................... 4
Immunity .......................................................................................................................................................................... 4
Maximum Ratings ............................................................................................................................................................ 5
Input Specifications .......................................................................................................................................................... 5
Output Performance Specifications .................................................................................................................................. 6
Protective Functions ......................................................................................................................................................... 6
Operating Modes .............................................................................................................................................................. 6
DC Output Controls and Indicators .................................................................................................................................. 7
Remote Control Features .................................................................................................................................................. 7
PMBus Features ................................................................................................................................................................ 7
Input, Output and Signal Connections .............................................................................................................................. 8
Signal Connector .............................................................................................................................................................. 9
Local Sense Setup ........................................................................................................................................................... 11
Remote Sense Setup ....................................................................................................................................................... 11
Parallel Operation Setup ................................................................................................................................................. 12
Series Operation Setup ................................................................................................................................................... 14
Ripple and Noise Notes ...................................................................................................................................................... 16
Mechanical Drawing ........................................................................................................................................................... 17
PMBus Interface ................................................................................................................................................................. 18
OPERATION MANUAL
1

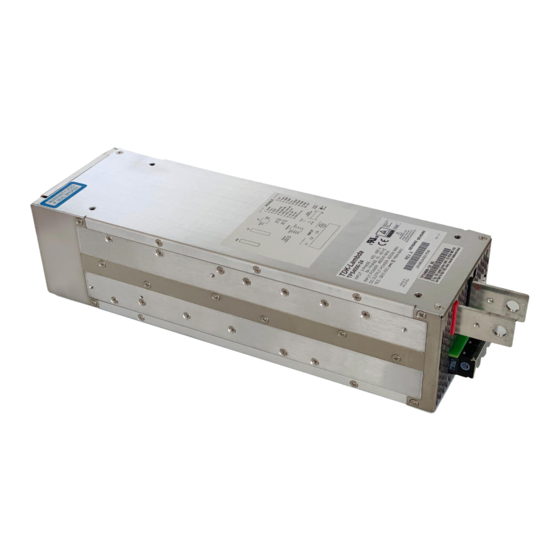

TPS4000 SERIES
POWER SUPPLY
14 October 2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TDK-Lambda TPS4000 Series
Summary of Contents for TDK-Lambda TPS4000 Series
-
Page 1: Table Of Contents
TPS4000 SERIES POWER SUPPLY OPERATION MANUAL GENERAL SAFETY INSTRUCTIONS ..........................2 High Voltage Warning ............................... 2 Critical Components ................................. 2 Servicing ................................... 2 Safety Class of Protection ..............................2 Installation ..................................2 Ratings, Specifications and Features ............................ 4 Emissions ..................................4 Immunity .................................. -
Page 2: General Safety Instructions
Critical Components This product is not authorized for use as a critical component in nuclear control systems, life support systems or equipment for use in hazardous environments without the express written approval of the Engineering Director of TDK-Lambda Americas. Servicing This product is not customer serviceable. - Page 3 TPS4000 SERIES POWER SUPPLY OPERATION MANUAL CAUTION As a component part, compliance with the standard will be based upon installation in the final application. This product must be installed in a restricted access location, accessible to authorized competent personnel only. These AC to DC converters have reinforced insulation between the input and the output.
-
Page 4: Ratings, Specifications And Features
TPS4000 SERIES POWER SUPPLY OPERATION MANUAL Ratings, Specifications and Features Emissions AC Line Conducted Emissions EN 55032:2015 (0.15-30 MHz) Class A Radiated RF Emissions EN 55032:2015 0-1000 MHz Class A * Immunity Electrostatic Discharge IEC61000-4-2: 2008 +/-8 kV Air +/-4 kV Contact... -
Page 5: Maximum Ratings
TPS4000 SERIES POWER SUPPLY OPERATION MANUAL Maximum Ratings Units TPS400024 TPS400048 Output Voltage Range 19.2-28.5 38.4-58 Maximum Output Current (Power) @ 50°C A(W) 170(4080) 85 (4080) Maximum Output Current (Power) @ 50°C A(W) 166(4000) 83.3(4000) Maximum Output Current (Power) @ 60°C A(W) 133.33(3200) -
Page 6: Output Performance Specifications
TPS4000 SERIES POWER SUPPLY OPERATION MANUAL Output Performance Specifications Units TPS400024 TPS400048 Max Voltage Line Regulation Less than 0.25% Max Voltage Load Regulation Less than 0.5% Total Regulation Less than 1.75% Warm up Drift Less than 0.2% Temperature Stability 0.05% of rated Vout for 8hrs after 30min warm- up. -
Page 7: Dc Output Controls And Indicators
TPS4000 SERIES POWER SUPPLY OPERATION MANUAL DC Output Controls and Indicators Output Voltage Adjust Screwdriver adjustment over entire range. Output voltage range is specified in Table 2. (Multi-turn potentiometer accessible from terminal end of chassis.) Overcurrent Protection Adjust Screwdriver adjustable (70% - 105% of max rated current) DC OK LED: Green when output >90% of set voltage, Red when fault. -
Page 8: Input, Output And Signal Connections
TPS4000 SERIES POWER SUPPLY OPERATION MANUAL Table 9 Input, Output and Signal Connections Input Heavy Duty terminal block with M4 screws. Grounding terminal included on terminal block. DC Output Heavy-duty bus bars with 9mm clearance hole for load connections. Signal Connector 20 pin signal connector. -
Page 9: Signal Connector
TPS4000 SERIES POWER SUPPLY OPERATION MANUAL Signal Connector Name Terminal Description Location Current share single wire. SHARE Current monitor signal. 0V = Iout min, 5V = Iout max. Terminal 18 used for Return. Remote Voltage Programming Terminal. Terminal 18 used for Return. - Page 10 TPS4000 SERIES POWER SUPPLY OPERATION MANUAL PMBus Connections Name Terminal Description Location SMB ALERT Interrupt Line for I2C SMB GND Return for I2C Clock Line for I2C Data Line for I2C Table 12 Figure 1: Pin assignments 14 October 2019...
-
Page 11: Local Sense Setup
TPS4000 SERIES POWER SUPPLY OPERATION MANUAL Local Sense Setup Figure 2: Typical Local Sense Connection Remote Sense Setup Figure 3: Typical Remote Sense Connection * Suitable Decoupling Capacitor (0.1uF or higher) may be required at load. 14 October 2019... -
Page 12: Parallel Operation Setup
TPS4000 SERIES POWER SUPPLY OPERATION MANUAL Parallel Operation Setup Figure 4: Parallel Operation (Local Sensing) *Suitable Decoupling Capacitor (0.1uF or higher) may be required at load. For optimal performance, power supplies should have their output voltages set to within 1% of each other... - Page 13 TPS4000 SERIES POWER SUPPLY OPERATION MANUAL Figure 5: Parallel Operation (Remote Sensing) *Suitable Decoupling Capacitor (0.1uF or higher) may be required at load. For optimal performance, power supplies should have their output voltages set to within 1% of each other...
-
Page 14: Series Operation Setup
TPS4000 SERIES POWER SUPPLY OPERATION MANUAL Series Operation Setup Figure 6: Series Operation (Local Sensing) *Suitable Decoupling Capacitor (0.1uF or higher) may be required at load. Note: It is recommended that diodes rated a minimum of 50V be used for any TPS4000-24 units operated in series and diodes rated at a minimum of 100V be used for any TPS4000-48 units operated in series. - Page 15 TPS4000 SERIES POWER SUPPLY OPERATION MANUAL Figure 7: Series Operation (Remote Sensing) *Suitable Decoupling Capacitor (0.1uF or higher) may be required at load. Note: It is recommended that diodes rated a minimum of 50V be used for any TPS4000-24 units operated in series and diodes rated at a minimum of 100V be used for any TPS4000-48 units operated in series.
-
Page 16: Ripple And Noise Notes
TPS4000 SERIES POWER SUPPLY OPERATION MANUAL Ripple and Noise Notes Ripple and Noise is measured according to the description below in accordance with JEITA RC-9131C (Sections 7.16, 7.17 and 7.18). The measurement connection is shown in Fig. 3-1. C1 (0.1µF Ceramic Capacitor), C2 (47uF Aluminum Electrolytic Capacitor) must be connected in parallel at 30cm from the output terminals, along the load cable. -
Page 17: Mechanical Drawing
TPS4000 SERIES POWER SUPPLY OPERATION MANUAL Mechanical Drawing Overall dimensions for the TPS4000 series are shown below: 14 October 2019... -
Page 18: Pmbus Interface
TPS4000 SERIES POWER SUPPLY OPERATION MANUAL PMBus Interface The TPS4000 has Power Management Bus (PMBus) hardware. The PMBUS interface in the TPS4000 includes: • Monitoring the Output Voltage (+/- 2% of Full Scale). • Monitoring the Output Current (+/- 10% of Full Scale). - Page 19 TPS4000 SERIES POWER SUPPLY OPERATION MANUAL ADDRESSING (A3, A2, A1, A0 inputs) To communicate with the TPS4000, the master must first address the slave devices via a slave address byte. The slave address byte consists of seven address bits and a direction bit that indicates the intent to execute a read or write operation.
- Page 20 TPS4000 SERIES POWER SUPPLY OPERATION MANUAL PMBus COMMAND SET OPERATION (ON/OFF) If the Power Supply is turned OFF with the “OPERATION OFF” command, the Supply can be turned ON with the “OPERATION ON” command. Command code Type Data sent R/W Byte...
- Page 21 TPS4000 SERIES POWER SUPPLY OPERATION MANUAL PROGRAMMING MODE This command is used to set the way you adjust the output of the Unit. Setting the Programming Mode to “Remote” allows you to program the output voltage and current limit using the I2C commands. In the “Local” you have the option to use the Front Panel Vout ADJ trim pot or the “Vadj”...
- Page 22 TPS4000 SERIES POWER SUPPLY OPERATION MANUAL READ_STATUS This Command is used to read the status of the Power Supply. The Status information is stored in a special register called the “STATUS REGISTER”. The PMBus reads 16 different types of Faults and Warnings.
- Page 23 TPS4000 SERIES POWER SUPPLY OPERATION MANUAL WARNING Invalid Command Received Output ON PROGRAMMING AND MONITORING FUNCTIONS For Monitoring and Programming functions use the following equation Y = (mX + b)* 10 X = (Y*10 - b)/m Where: Y is the digital value sent or received from the supply.
- Page 24 TPS4000 SERIES POWER SUPPLY OPERATION MANUAL MONITORING THE OUTPUT VOLTAGE (READ_VOUT) The accuracy of the voltage reading is +/-2% The output voltage is read before the ORING Circuit (~50mV Voltage drop @ load, no drop @no load). The read back Output Voltage can be calculated using the “Direct data Format”.
- Page 25 TPS4000 SERIES POWER SUPPLY OPERATION MANUAL PROGRAMMING THE OUTPUT VOLTAGE (VOUT_COMMAND) The accuracy of the Output Voltage Programming is +/-2% The output Voltage can be programmed using the “Direct data Format”. Please refer to table 1 for the Coefficients to be used for calculating the Voltage Programming.
