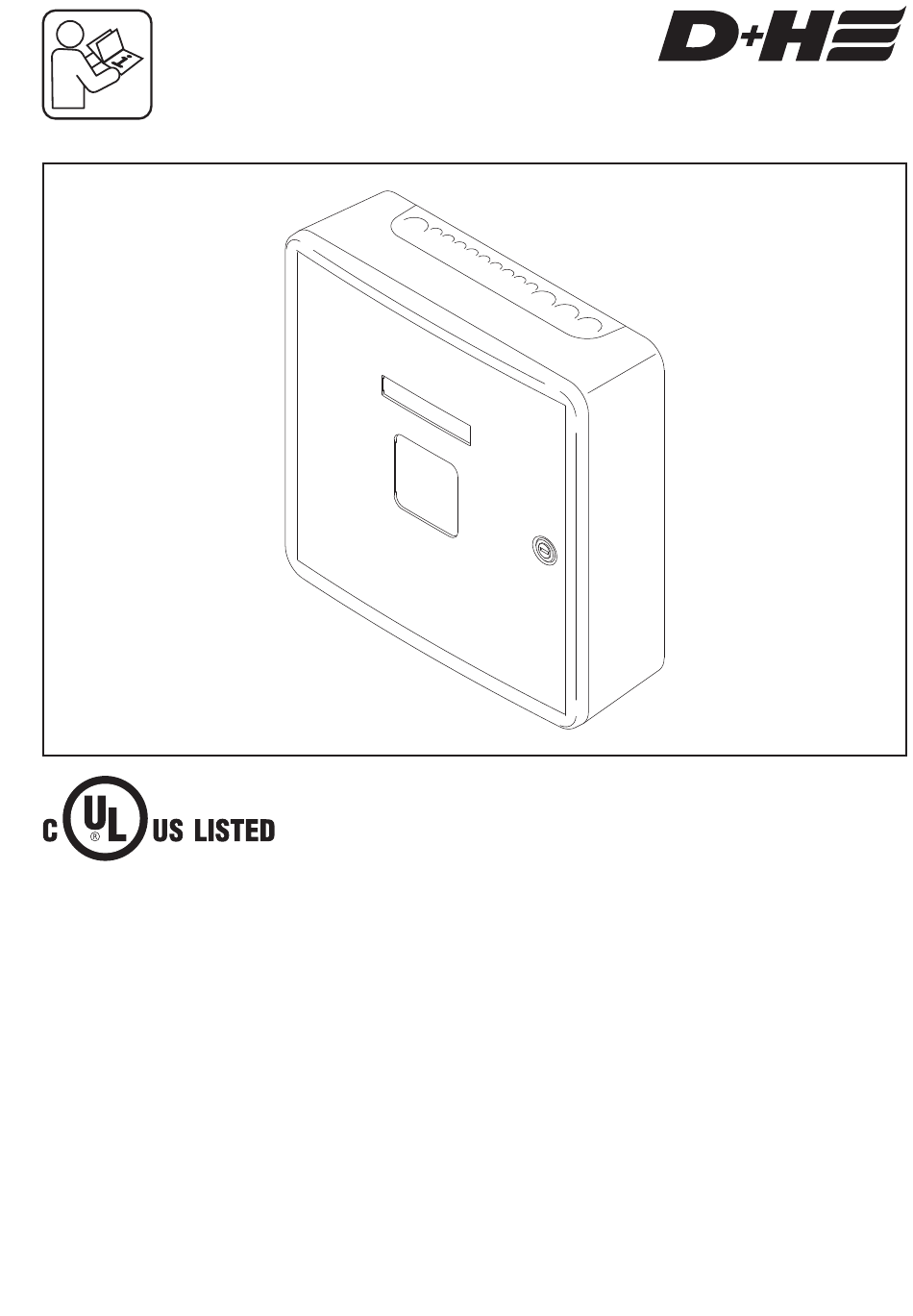

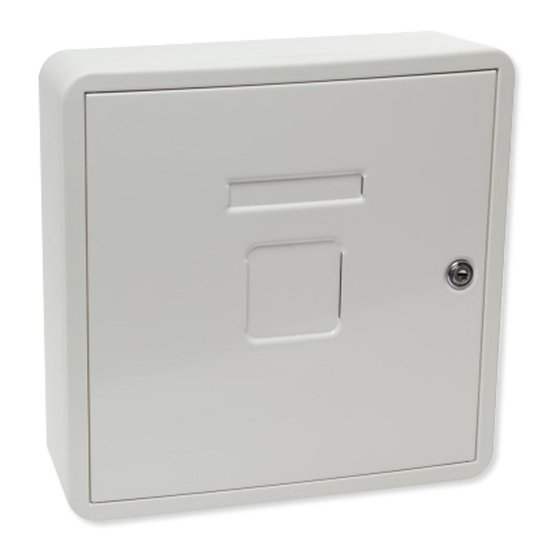

- Page 1 GVL 8408-M-UL en Original instructions ..... . . Page ..2 99.828.04 1.0/06/19...
- Page 2 - Connection has to be carried out only by an authorized electrical specialist. - Mounting of the control panel should be carried out by a D+H distributor, whose qualification and experience is ensured by regular in-house training.
-
Page 3: Intended Use
This instruction includes descriptions and connection plans of components which are not part of scope of supply of control panel. You can order these parts and many more separately from your D+H distributor. Further connecting plans are available there as well. 3/12 99.828.04 1.0/06/19... -
Page 4: View Motherboard
Group 3 Group 4 Group 5 WARNING For continued protection against fire, replace only with the same type and rating of fuse. Ventilation control panel GVL 8408-M-UL www.dh-partner.com Power T2.5A 115 VAC mains connector fuse mains LED Power ON 22 - 12 AWG max. - Page 5 (e.g. green / yellow) this must not be used! Line lenghts and cross sections total current total current type type 2x AWG 16 2x 1,5 mm² 1312 2x AWG 14 2x 2,5 mm² 2100 1050 2x AWG 12 2x 4 mm² 5/12 99.828.04 1.0/06/19 English GVL 8408-M-UL...
- Page 6 Connection – 115 V AC supply GVL 8408-M-UL 115 V AC, 60 Hz cable tie for strain relief 6/12 GVL 8408-M-UL English 99.828.04 1.0/06/19...
- Page 7 (e.g. rain detector) (e.g. LT 84-U-SD) The input current of the connected window drives shall not exceed 4 Amp. Line lengths and cross sections see page 5 Drive group 1 ... 5 GVL 8408-M-UL 7/12 99.828.04 1.0/06/19 English GVL 8408-M-UL...
- Page 8 Line lengths and insert cross sections bridge! see page 5 Drive group 1 ... 5 GVL 8408-M-UL Connect lead directly when no automatic switch available. In this case the manual operation is out of function. 8/12 GVL 8408-M-UL English 99.828.04 1.0/06/19...
- Page 9 The weather automatic can be switched-off at vent button LT 84-U-W (optional), if gap ventilation is required in case of bad weather. LT 84-U-W Gap ventilation is not possible in case of bad weather, if no vent button LT 84-U-W available. 9/12 99.828.04 1.0/06/19 English GVL 8408-M-UL...
-
Page 10: Technical Data
D+H maintenance notes. Only original D+H spare Moving direction of drives: parts may be used. Repair is to be carried out Change poles of wires of the drive supply exclusively by D+H. - Page 11 Usable window drives by D+H Mechatronic AG The control unit may only be operated with the following drives of which representative samples of the product series as specified on the respective certificate were tested according to the current UL requirements:...
- Page 12 D+H Mechatronic AG Georg-Sasse-Str. 28-32 22949 Ammersbek , Germany Tel. : +49 40-605 65 : +49 40-605 65 254 E-Mail: info@dh-partner.com www.dh-partner.com © 2018 D+H Mechatronic AG, Ammersbek Technische Änderungen vorbehalten. / Rights to technical modifications reserved. 99.828.04 1.0/06/19...
