- Page 1 Operation manual...

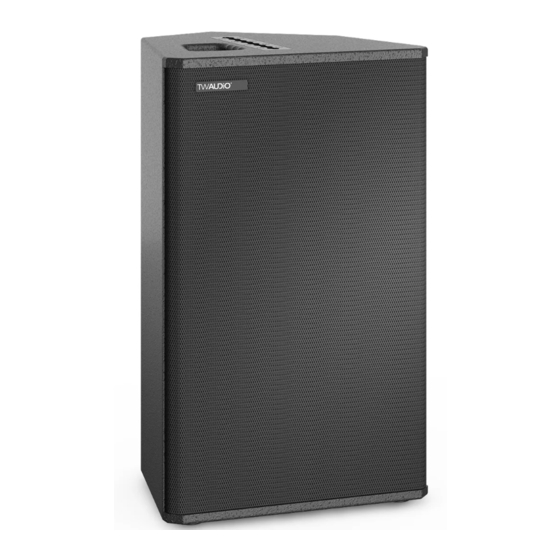

- Page 2 The M10 combines the advantages of the compact M8 with the imposing qualities of the high performance M12. The M10 is fitted with the same 1.4“ mid-high driver as the M12 and the M15, enabling a deep crossover frequency, thus giving a sound with the best possible intelli- gibility and directness.
- Page 3 This symbol in combination with the signal word “Tip” identifies additional information or notes that will simplify working with TW AUDiO products on the basis of practical experience. Notes on the products Before using the device, carefully read the operating manual and keep it with the M10 loudspe- Read manual aker.
-
Page 4: Table Of Contents
Operation manual M10 Content 1. Safety | Intended use ...................... 5 2. Overview ........................7 Components ......................7 Variants ........................8 3. Technical specifications ....................9 Data sheet ....................... 9 Connection diagram ....................9 4. Commissioning ......................10 Setup ........................10 Rotating the HF horn ..................... -
Page 5: Safety | Intended Use
1. Safety | Intended use Please adhere to the following safety instructions to avoid risks when operating loudspeakers. The M10 loudspeaker was developed for use in professional sound systems. The loudspea- ker may only be used by trained and qualified personnel. - Page 6 Operation manual M10 Ensure that the loudspeaker is not exposed to permanent thermal overloads. Thermal over- loads may cause a fire and result in serious personal injury and property damage. WARNING Note that TWAMBO does not provide a warranty for damage that can be attributed to this type of overload and therefore cannot be held liable for any secondary damage.
-
Page 7: Overview
Operation manual M10 2. Overview Components Figure 2.1 - Overview 15 mm multiplex enclosure - Warnex surface finish Ergonomic carrying handles (top and bottom) Top rigging track Connection panels one SpeakON® connector each at the top and bottom and two connectors on the back Rotable horn with 1.4“... -
Page 8: Variants
Operation manual M10 Variants The M10 loudspeaker is available in right and left variants. These versions differ in the side on which the slanted wedge is located on the enclosure. 1,4“ compression driver left version right version Figure 2.2 - Left and right versions... -
Page 9: Technical Specifications
Operation manual M10 3. Technical specifications Data sheet Drivers 1x 10“ LF / 1x 1.4“ HF Frequency response 68 - 19000 Hz Power handling (program/Peak) 600 / 1200 W Impedance 8 Ω LF Coverage angles (h x v) 75° x 50°... -
Page 10: Commissioning
4. Commissioning Setup The M10 loudspeaker is designed for standing, vertical and horizontal operation. TW AUDiO provides a wide range of accessories to securely attach the loudspeaker. Make sure that all system structures are located on a firm, level surface and that the surface... -
Page 11: Rotating The Hf Horn
The horn of the M10 loudspeaker is positioned such that the horizontal coverage is 75° and the vertical coverage is 50°. In some situations, it may be advantageous to switch the cover- age of the high-frequency range. To do this, you can rotate the horn of the M10 loudspeaker. Proceed as follows. -
Page 12: Operation
Before connecting the loudspeaker to the amplifier, ensure that the right preset has been loaded. NOTE Using a wrong, out dated or a preset not provided by TW AUDiO can lead to destruction of the speaker. Make sure that the amplifier’s specifications meet the requirements. Using an amplifier that doesn’t meet the specifications can destroy the loudspeaker. -
Page 13: Transport And Storage
Operation manual M10 5. Transport and Storage To enable a single person to transport two M10 loudspeakers, TW AUDiO recommends using the CaseM10. NOTE When transporting and storing the unit, it is important to ensure that the surface and front grill of the loudspeaker are not damaged. -
Page 14: Ce Conformity Declaration
Operation manual M10 6. CE Conformity Declaration Copy and translation of the original CE Conformity Declaration: We hereby declare that the below-referenced components by virtue of their design and construction, and in the configuration placed on the market by us, satisfy the safety and health requirements of the applicable EC directives. -
Page 15: Disposal
Operation manual M10 7. Disposal It is prohibited to dispose of used electrical equipment with household refuse. All TWAMBO GmbH products are so-called B2B-products. This means that they are sold by a commercial business to a commercial business. TWAMBO products that bear the trash can symbol shown here may only be disposed of by TWAMBO. - Page 16 Operation manual M10 TWAMBO GmbH Karl-Hofer-Str. 42 14163 Berlin Germany Phone: + 49 (0) 71 41-48 89 89 0 Fax: + 49 (0) 71 41-48 89 89 99 E-Mail: info@twaudio.de WWW: www.twaudio.de...
