Summary of Contents for TW Audio MCT24
- Page 1 Assembly MCT24 Instructions...
- Page 2 If you lend your product to another party, inform that party of the safety-related operating pro- cedures and hand over this assembly guide. If you require additional copies of this manual, you can obtain them free of charge from TW AUDiO or download them from www.twaudio.de Instructions in this user manual...
- Page 3 Assembly Instructions MCT24 Notes on the products Before using the device, carefully read the assembly instructions and keep it with the Read manual MCT24 main-cradle-frame. before use! General information Assembly instructions: OM-MCT24 Version 2.0 en, 09/2022 © by TWAMBO 2022; all rights reserved.
-
Page 4: Table Of Contents
Wind load ........................ 9 General safety instructions for setting up the following rigging variants: ....10 Mounting ASK44 sling chain at one MCT24 main-cradle-frame ......11 Mounting sequence with one MCT24 main-cradle-frame ........12 Standard and maximal variant with one MCT24 main-cradle-frame ....... 13 Mounting of two MCT24 main-cradle-frame ............ -
Page 5: Safety | Intended Use
Damage caused by improper use is not covered by TWAMBO. Before every operation, check the scope of delivery of the MCT24 main-cradle-frame for its completeness and ensure that all parts are in perfect condition. The scope of delivery includes specified components. Only use the recommended and cer- WARNING tified components. - Page 6 Multiple persons may be required depending on the situation. NOTE The payload of the MCT24 main-cradle-frame is designed of not more than 12x T24(N) loudspe- aker. The following additional components are required for this: CBT24 cradle bar for flying, BAT24 adapter, BBT24 bracket and BLT24 Boxlink connecting cables on both sides of the T24(N) loudspeaker.
-
Page 7: Overview

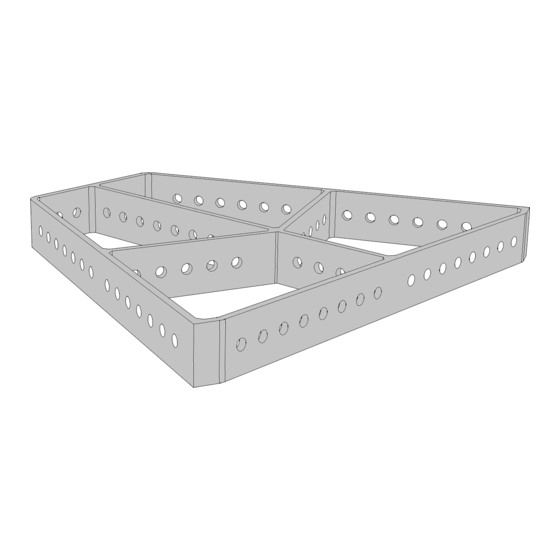

Assembly Instructions MCT24 2. Overview Components Figure 2.1 - Overview Hexagon screw M12 x 40................2 pieces Hexagon nut with clamping part M12 .............. 2 pieces Main-cradle-frame ..................... 1 piece... -
Page 8: Technical Data
2x BAT24 adapter, 12x BBT24 bracket and 20x BLT24 Boxlink-connecting cab- les on both sides of the T24(N) loudspeakers Stardard variant with 2x MCT24 Maximum load capacity: in combination with: 3x CBT24 cradle bar for flying 6x T24(N) 3x BAT24 adapter,... -
Page 9: Commissioning
Assembly Instructions MCT24 4. Commissioning Setup The MCT24 main-cradle-frame is designed for hanging operation. TW AUDiO provides a wide range of accessories to securely attach the main-cradle-frame . Please note that setting up the MCT24 main-cradle-frame always requires two persons! -
Page 10: General Safety Instructions For Setting Up The Following Rigging Variants
Use shackles that are designed according to the payload for each system setup. WARNING Attach the ASK sling chain to four other pin points on the MCT24 main-cradle-frame for each system setup. Use a sling chain or chain hoist to hang the ASK sling chain with the system setup. -
Page 11: Mounting Ask44 Sling Chain At One Mct24 Main-Cradle-Frame
EASE Focus simulation software! NOTE Make sure that the MCT24 main-cradle-frame is held in the horizontal position with the ASK44 sling chain in every application with your system setup! Determine always the pin points you require before setting up the system! -
Page 12: Mounting Sequence With One Mct24 Main-Cradle-Frame
4. Now connect the BBT24 bracket with the BAT24 adapter via the upper quick-locking pin of the BBT24 bracket! BBT24 Figure 4.5 - Mounting T24(N) to MCT24 with CBT24 and BAT24 Grafic shown without ASK44 sling chain. Check that all quick-locking pins are always completely inserted! -
Page 13: Standard And Maximal Variant With One Mct24 Main-Cradle-Frame
Assembly Instructions MCT24 Standard and maximal variant with one MCT24 main-cradle-frame The standard variant has established itself in which four T24(N) loudspeakers are used with two CBT24 cradle bar for flying, four BBT24 brackets, two BAT24 adapter and four BLT24 Boxlink connector cables. (See figure 4.6) -
Page 14: Mounting Of Two Mct24 Main-Cradle-Frame
Determine always the pin points you require before setting up the system! Only then screw the two MCT24 main-cradle-frames together! Screw the two MCT24 main-cradle-frames to the side beams as shown for example in figure 4.7. For this purpose, use the hexagon screws and nuts included in the scope of deli- very. -
Page 15: Mounting Ask44 Sling Chain On Two Mct24 Main-Cradle-Frames
EASE Focus simulation software! NOTE Make sure that the two MCT24 main-cradle-frames are held in the horizontal position with the ASK44 sling chain in every application with your system setup! Determine always the pin points you require before setting up the system! -
Page 16: Mounting Bat24 Adapter To Two Mct24 Main-Cradle-Frames
Grafic shown without ASK44 sling chain. Be sure to follow the mounting sequence of chapter 4.5 on page 12 to mount the T24(N) loudspeakers to the MCT24 main-cradle-frame via the CBT24 cradle bar for flying. WARNING Check that all quick-locking pins are always completely inserted! -
Page 17: Standard And Maximum Variant With Two Mct24 Main-Cradle-Frames
Assembly Instructions MCT24 4.10 Standard and Maximum variant with two MCT24 main-cradle-frames The standard variant has established itself in which six T24(N) loudspeakers are used with three CBT24 cradle bar for flying, six BBT24 brackets, three BAT24 adapter and six BLT24 Boxlink connector cables. -
Page 18: Transport And Storage
NOTE This is why the product should be transported in a safe, careful, dry and largely dust-free manner. The following accessory parts for the Main-cradle-frame are available from TW AUDiO: • Shackle SK10 • Hexagon screw M12 x 40 • Hexagon nut with clamping part M12... -
Page 19: Ce Conformity Declaration
Assembly Instructions MCT24 6. CE Conformity Declaration Copy and translation of the original CE Conformity Declaration: We hereby declare that the below-referenced components by virtue of their design and con- struction, and in the configuration placed on the market by us, satisfy the safety and health requirements of the applicable EC directives. - Page 20 Assembly Instructions MCT24 TWAMBO GmbH Karl-Hofer-Str. 42 14163 Berlin Germany Phone: + 49 (0) 71 41-48 89 89 0 Fax: + 49 (0) 71 41-48 89 89 99 E-Mail: info@twaudio.de WWW: www.twaudio.de...
