Summary of Contents for TW Audio M8i
- Page 1 Operation manual...

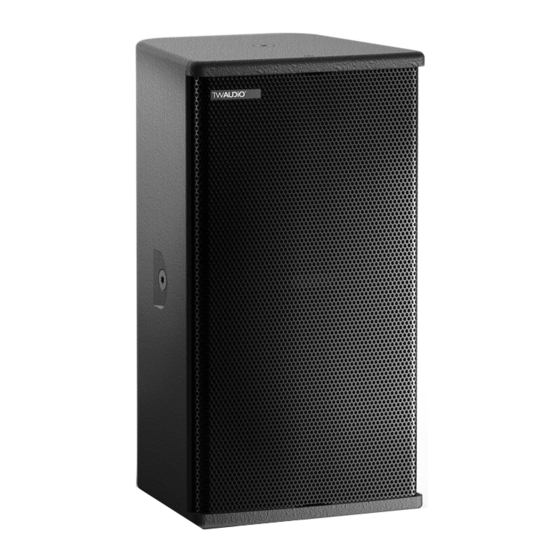

- Page 2 Thank you for choosing a high-quality product “MADE IN GERMANY” from TW AUDiO. The M8i is the installation version of the M8, one of the most popular TW AUDiO products. The M8i takes the same uncompromising acoustic design of the M8 (8“ LF-driver, 1“ com- pression driver and rotatable 90°...
- Page 3 Operation manual M8i Notes on the products Before using the device, carefully read the operating manual and keep it with the M8i loudspe- Read manual aker. before use! General information Operation manual: OM-M8i Version 1.0 en, 11/2018 © by TW AUDiO 2018; all rights reserved.
-
Page 4: Table Of Contents
Operation manual M8i Content 1. Safety | Intended use ...................... 5 2. Overview ........................7 Components ......................7 3. Technical specifications ....................8 Data sheet ....................... 8 Connection diagram ....................8 4. Commissioning ....................... 9 Setup ........................9 M6 and M10 threaded inserts .................. 9 Rotating the HF horn ..................... -
Page 5: Safety | Intended Use
1. Safety | Intended use Please adhere to the following safety instructions to avoid risks when operating loudspeakers. The M8i loudspeaker was developed for use in professional sound systems. The loudspeaker may only be used by trained and qualified personnel. - Page 6 WARNING Note that TW AUDiO does not provide a warranty for damage that can be attributed to this type of overload and therefore cannot be held liable for any secondary damage.
-
Page 7: Overview
Operation manual M8i 2. Overview Components Figure 2.1 - Overview Front grill 15 mm Multiplex enclosure - Warnex textured paint surface M10 threaded insert for attaching accessories (4 pieces) Rotatable horn with 1“ compression driver 8“ cone driver M6 threaded insert for attaching accessories (6 pieces) -
Page 8: Technical Specifications
Operation manual M8i 3. Technical specifications Data sheet Drivers 1x 8“ LF / 1x 1,0“ HF Frequency response 66 - 20000 Hz Power handling (program/Peak) 400 / 800 W Impedance 8 Ω Coverage (h x v) 90° x 60° rotable Max. -
Page 9: Commissioning
NOTE 4. For the M8i loudspeaker M6 and M10 threaded inserts, various TW AUDiO accessories can be mounted. For each product refer to the instructions. 5. Note that the load capacity is limited to a single speaker. -
Page 10: Rotating The Hf Horn
To adjust the dispersion pattern, the M8i loudspeaker’s HF horn can be rotated. Proceed as follows: 1. Place the M8i loudspeaker on its back, with the speaker grille facing up. Make sure to place the speaker on a clean, non-slippery surface. -
Page 11: Operation
NOTE Using the wrong preset or a preset not provided by TW AUDiO preset can destroy the speaker. Make sure that the amplifier’s specifications meet the requirements. Using an amplifier that doesn’t meet the specifications can destroy the loudspeaker. -
Page 12: Transport And Storage
Operation manual M8i 5. Transport and Storage Ensure that the front grill of the loudspeaker is not damaged during transport and storage. Moisture can penetrate exposed wood surfaces and cause the wood to swell. A bent or bro- ken front grill will no longer adequately protect the sensitive driver membranes. -
Page 13: Disposal
It is prohibited to dispose of used electrical equipment with household refuse. All TW AUDiO GmbH products are so-called B2B-products. This means that they are sold by a commercial business to a commercial business. TW AUDiO products that bear the trash can symbol shown here may only be disposed of by TW AUDiO. - Page 14 Operation manual M8i TW AUDiO GmbH Osterholzallee 140 71636 Ludwigsburg Germany Phone : + 49 (0) 71 41-48 89 89 0 Fax: + 49 (0) 71 41-48 89 89 99 E-Mail: info@twaudio.de WWW: www.twaudio.de...
