P.O. BOX 11846 TUCSON, AZ 85734
(520) 294-3292
• FAX (520) 741-2837
www.iotaengineering.com
INSTRUCTION MANUAL
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
CAUTION – To prevent electrical shock, do not mate unit connector until installation is complete and A.C.
1.
power is supplied to the unit.
2.
CAUTION – This fixture provides more than one power supply output source. To reduce the risk of electrical
shock, disconnect both normal and emergency sources by turning off the A.C. branch circuit and by discon-
necting the unit connector.
3.
CAUTION – This is a sealed unit. Components are not replaceable. Replace the entire unit when necessary.
CAUTION – Installation and servicing should be performed by qualified personnel only. De-energize before
4.
opening.
The ILB-CP20-HE-SD-S is for use with grounded LED luminaires listed to UL standards. Not for use in heated
5.
air outlets or hazardous locations.
6.
The ILB-CP20-HE-SD-S requires an unswitched A.C. power source of 120 to 277 volts AC, 50/60Hz.
The ILB-CP20-HE-SD-S and A.C. driver must be on the same branch circuit.
7.
8.
Do not mount near gas or electric heaters.
The ILB-CP20-HE-SD-S should be mounted in locations and at heights where it will not readily be subjected
9.
to tampering by unauthorized personnel.
The ILB-CP20-HE-SD-S will supply 20-60VDC output at the individual rated specification for 90 minutes. See
10.
individual units for output specifications.
11.
The ILB-CP20-HE-SD-S is certified in the CA Title 20 Modernized Appliance Efficiency Database System
(MAEDBS) as a small battery charger.
12.
Suitable for use in damp locations and plenum.
13.
Suitable for luminaires, recessed Type IC (intended for insulation contact).
14.
For use in 0° C minimum, 55° C maximum ambient temperatures.
15.
The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition, void
warranty, and result in non-compliance with UL specifications.
16.
Do not use this equipment for other than intended use.
17.
Install in accordance with the National Electrical Code and local regulations.
18.
Lighting fixture manufacturers, electricians, and end-users need to ensure product system compatibility before
final installation. See addendum for compatibility and covered luminaire requirements.
EMERGENCY LED DRIVER FOR USE
WITH LED LUMINAIRES IDENTIFIED
IN THE MANUFACTURER'S
INSTALLATION INSTRUCTIONS
E473237

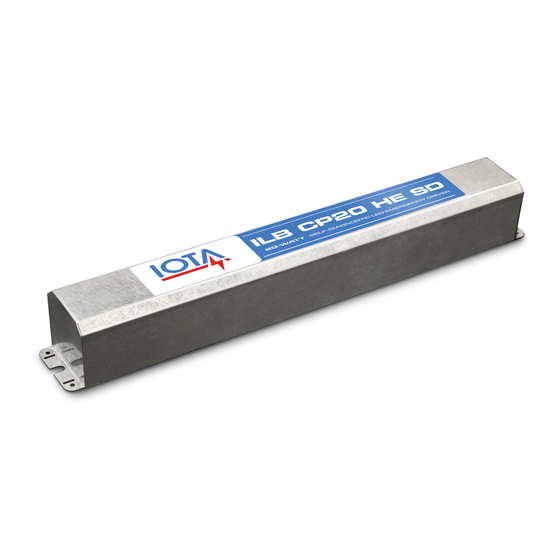

ILB-CP20-HE-SD-S
SAVE THESE INSTRUCTIONS
HIGH EFFICIENCY PERFORMANCE
MEETS CA T20 BATTERY CHARGER
EFFICIENCY STANDARDS
HIGH EFFICIENCY SELF-DIAGNOSTIC
EMERGENCY LIGHTING EQUIPMENT
FOR LED
Patented. See iotaengineering.com/patents for more details
Advertisement
Related Manuals for IOTA ILB-CP20-HE-SD-S
Summary of Contents for IOTA ILB-CP20-HE-SD-S
- Page 1 CAUTION – Installation and servicing should be performed by qualified personnel only. De-energize before opening. The ILB-CP20-HE-SD-S is for use with grounded LED luminaires listed to UL standards. Not for use in heated air outlets or hazardous locations. The ILB-CP20-HE-SD-S requires an unswitched A.C. power source of 120 to 277 volts AC, 50/60Hz.
-
Page 2: Installation Instructions
2. Refer to Addendum 11042014 for detailed specifications and methods to calculate emergency light levels. 2. MOUNTING THE ILB-CP-HE Mount the ILB-CP20-HE-SD-S on or adjacent to the fixture in a position that does not interfere with the existing A.C. ″ hole. Feed driver or any other hardware. -
Page 3: Completing Installation
The ILB-CP20-HE-SD-S is designed to automatically conduct 30-second tests at regular intervals every 28 to 30 days, and a 90 minute test anually. Automatic testing will not begin until at least 24 hours after the ILB-CP20-HE-SD-S unit connector is joined. - Page 4 TBTS flashing green. Failure Diagnosis - The ILB-CP20-HE-SD-S is designed to provide a general indication of where a fault in the emer- gency lighting circuit may be located, based on the flashing failure code indicated by the TBTS.
- Page 5 The purpose of this addendum is to sufficiently identify electrical compatibility and predictable emergency light output of the LED luminaire when used with the IOTA ILB-CP Series LED emergency drivers. Verification of these operating traits does not constitute a code-compliant, as-installed emergency egress system. It is still the responsibility of the Designer/ Specifier to assure appropriate light levels are achieved during emergency operation of the luminaire in accordance with Federal, state and local municipal codes regarding path of egress illumination.
