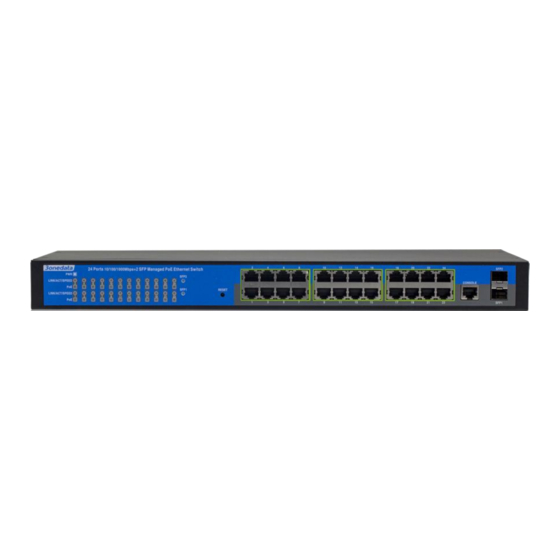

3onedata PS5026G-2GS-24PoE User Manual

Managed full gigabit industrial ethernet poe switch
Hide thumbs Also See for PS5026G-2GS-24PoE:
Table of Contents

Advertisement

Quick Links

Download this manual

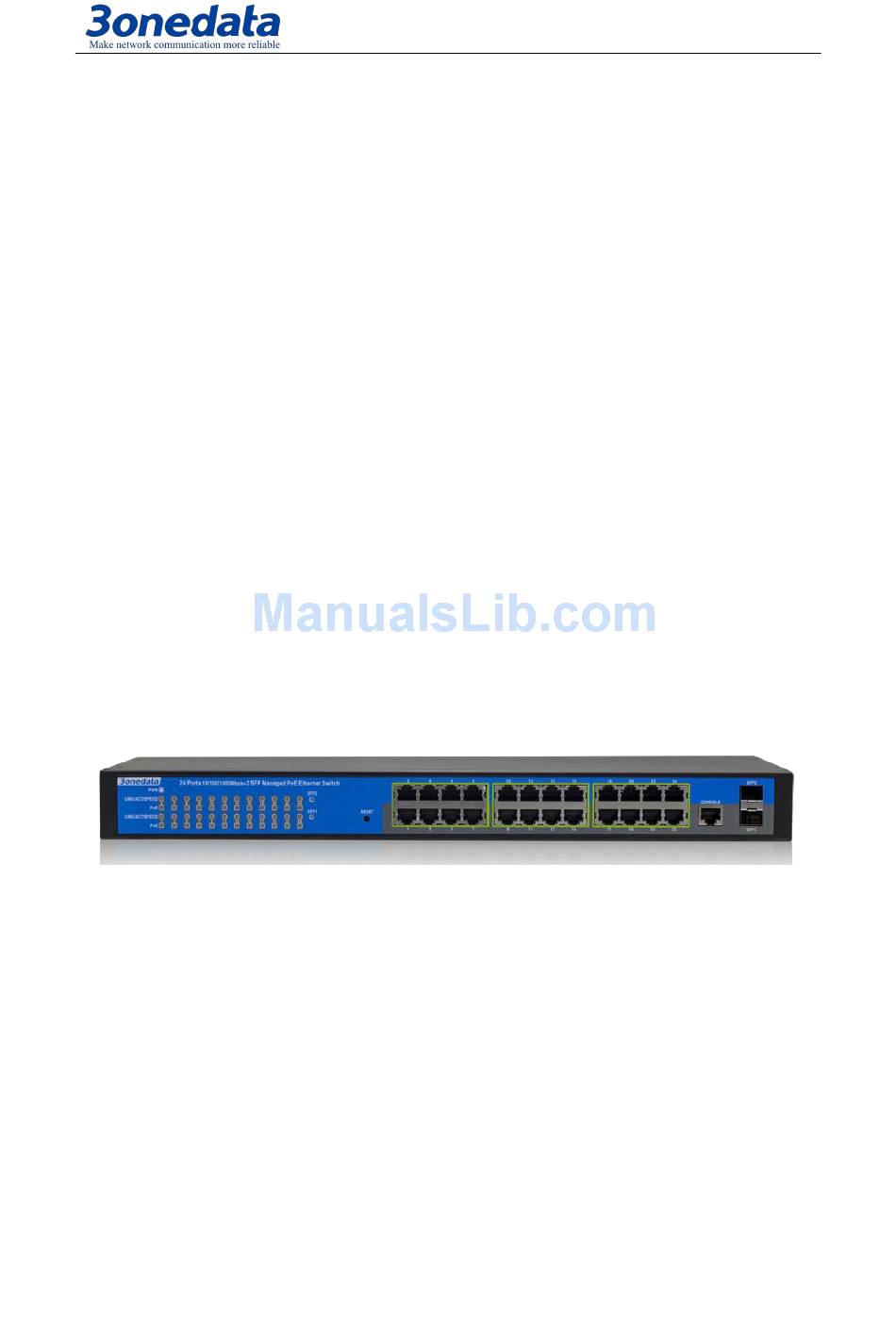

PS5026G-2GS-24PoE User Manual
PS5026G-2GS-24PoE
Managed Full Gigabit
Industrial Ethernet PoE Switch

User Manual

Version 1.0, 2017.8.29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS5026G-2GS-24PoE and is the answer not in the manual?

Questions and answers

Related Manuals for 3onedata PS5026G-2GS-24PoE

Summary of Contents for 3onedata PS5026G-2GS-24PoE

  • Page 1: User Manual

    PS5026G-2GS-24PoE User Manual PS5026G-2GS-24PoE Managed Full Gigabit Industrial Ethernet PoE Switch User Manual Version 1.0, 2017.8.29...
  • Page 2 PS5026G-2GS-24PoE User Manual Table of Contents Chapter 1 Product Introduction................4 1.1 Product Overview..................4 1.2 Features......................4 1.3 External Component Description..............5 1.3.1 Front Panel......................5 1.3.2 Rear Panel......................6 1.4 Environment....................6 1.5 Package Contents..................7 Chapter 2 Installing and Connecting the Switch..........8 2.1 Installation.......................8...
  • Page 3 PS5026G-2GS-24PoE User Manual 4.5.1.1 management ....................37 4.5.1.2 Temperature config ................38 4.5.2 PoE port Config....................39 4.6 MSTP......................40 4.6.1 MSTP Region....................... 40 4.6.2 MSTP Bridge......................41 4.7 DHCP Relay....................44 4.7.1 DHCP Relay......................44 4.7.2 Option82........................45 4.8 QOS.......................46 4.8.1 Remark........................46 4.8.2 Queue Config.......................
  • Page 4 PS5026G-2GS-24PoE User Manual 4.11.3.1 Current configuration ..............74 4.11.3.2 Configuration backup ................ 76 4.11.3.3 Restore factory configuration ............76 4.11.4 Config Save......................77 4.11.5 Administrator Privileges..................78 4.11.6 Info Collect......................79 Appendix: Technical Specifications..............80...

  • Page 5: Chapter 1 Product Introduction

    PS5026G-2GS-24PoE User Manual Chapter 1 Product Introduction Congratulations on your purchasing of the Web Smart Ethernet Switch. Before you install and use this product, please read this manual carefully for full exploiting the functions of this product . 1.1 Product Overview This is a new generation designed for high security and high performance network the second layer Switch.

  • Page 6: External Component Description

    PS5026G-2GS-24PoE User Manual 1.3 External Component Description 1.3.1 Front Panel The front panel of the Switch consists of 24 x 10/100/1000Mbps RJ-45 ports, 2 x 1000Mbps SFP ports, 1 x CONSOLE port, 1 x RESET button and a series of LED indicators as shown as below.

  • Page 7: Rear Panel

    PS5026G-2GS-24PoE User Manual /SPEED (10/100Mbps) A device is disconnected to the port (1~24) Green (1000Mbps) Flashing Sending or receiving data A device is connected to the port LINK/ACT A device is disconnected to the port /SPEED Green (SFP1,2) Flashing Sending or receiving data A Powered Device is connected to the port, which supply power successfully.

  • Page 8: Package Contents

    PS5026G-2GS-24PoE User Manual 1.5 Package Contents Before installing the Switch, make sure that the following the "packing list" listed OK. If any part is lost and damaged, please contact your local agent immediately. In addition, make sure that you have the tools install switches and cables by your hands.

  • Page 9: Chapter 2 Installing And Connecting The Switch

    PS5026G-2GS-24PoE User Manual Chapter 2 Installing and Connecting the Switch This part describes how to install your Web Smart Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented.

  • Page 10: Rack-Mountable Installation In 19-Inch Cabinet

    PS5026G-2GS-24PoE User Manual 2.1.2 Rack-mountable Installation in 19-inch Cabinet The Switch can be mounted in an EIA standard-sized, 19-inch rack, which can be placed in a wiring closet with other equipment. To install the Switch, please follow these steps: attach the mounting brackets on the Switch’s side panels (one on each side) and secure them with the screws provided.

  • Page 11: Connect Computer (Nic) To The Switch

    PS5026G-2GS-24PoE User Manual Connect the AC power connector in the back panel of the Switch to external receptacle with the included power cord, and check the power indicator is ON or not. When it is ON, it indicates the power connection is OK.

  • Page 12: Chapter 3 How To Login The Switch

    PS5026G-2GS-24PoE User Manual Chapter 3 How to Login the Switch 3.1 How to Login the Switch As the Switch provides Web-based management login, you can configure your computer’s IP address manually to log on to the Switch. The default settings of the Switch are shown below.
  • Page 13 PS5026G-2GS-24PoE User Manual...

  • Page 14: Chapter 4 Switch Configuration

    PS5026G-2GS-24PoE User Manual Chapter 4 Switch Configuration This Switch Managed switch software provides rich layer 2 functionality for switches in your networks. This chapter describes how to use Web-based management interface(Web UI) to this switch configure managed switch software features.
  • Page 15 PS5026G-2GS-24PoE User Manual 【Parameter Description】 Parameter Description VLAN ID VLAN number, 26GE default VLAN 1 VLAN name VLAN mark Manage IP Manage the IP address of the VLAN 【Instructions】 Native VLAN: As a Trunk, the port will belong to a Native VLAN. The so-called Native VLAN, is refers to UNTAG send or receive a message on the interface, is considered belongs to the VLAN.
  • Page 16 PS5026G-2GS-24PoE User Manual Click "next step" button, into other settings, such as: Manage IP address set as 192.168.2.11, device name set as Switch-123, Default gateway set as 192.168.2.22, DNS server set as 172.16.1.241. Use 192.168.2.11 to log in, set a new password for 1234.

  • Page 17: Port

    PS5026G-2GS-24PoE User Manual 4.2 PORT In the navigation bar to select "PORT", You may conduct Basic Config, Port Aggregation, Port Mirroring, Port Limit, Storm Control and Port Isolation. 4.2.1 Basic Config In the navigation bar to select "Port>Basic Config", for panel port to port described, port speed, port status, working mode, flow control, cross line order configuration as shown.

  • Page 18: Port Aggregation

    PS5026G-2GS-24PoE User Manual Can choose the following kinds: Self negotiated Port speed 100M 1000M Can choose the following kinds: Self negotiated Working mode Half duplex Duplex Port described The port is described Cross line sequence Whether open intersection line sequence 【Instructions】...

  • Page 19: Port Mirroring

    PS5026G-2GS-24PoE User Manual 【Instructions】 The monitor port in the port image can not be added! 【Configuration Example】 Such as: Set the port 9, 10, for aggregation port 1, lets this aggregation port 1 connected to other switch aggregation port 1 to build switch links.
  • Page 20 PS5026G-2GS-24PoE User Manual 【Parameter Description】 Parameter Description Mirror group Range: 1-4 Source port To monitor the port in and out of flow Set destination port, All packets on the source port are copied Destination port and forwarded to the destination port 【Instructions】...

  • Page 21: Port Limit

    PS5026G-2GS-24PoE User Manual 4.2.4 Port Limit In the navigation bar to select "Port>Port Limit ", to port output, input speed limit as shown. 【Parameter Description】 Parameter Description Input speed limit Set port input speed Output speed limit Set port output speed 【Instructions】...

  • Page 22: Storm Control

    PS5026G-2GS-24PoE User Manual 4.2.5 Storm Control 4.2.6 Port Isolation In the navigation bar to select "Port>Port Isolation", one port can be isolated to one or multiple destination ports as shown.

  • Page 23: Vlan

    PS5026G-2GS-24PoE User Manual 【Parameter Description】 Parameter Description Source port Choose a port, to configure the isolated port Isolated port Port will be isolated 【Configuration Example】 Such as: Isolate port 5,6,7,8 port separately. Configuration success after, Isolate port 5,6,7,8 port separately.

  • Page 24: Vlan Setting

    PS5026G-2GS-24PoE User Manual 4.3.1 VLAN setting In the navigation bar to select "VLAN>VLAN Config>VLAN setting", VLANs can be created and set the port to the VLAN(port default state for the access mode) as shown. 【Parameter Description】 Parameter Description VLAN ID...

  • Page 25: Trunk-Port Setting

    PS5026G-2GS-24PoE User Manual 4.3.2 Trunk-port setting In the navigation bar to select "VLAN>VLAN Config>Trunk-port setting", can set port to Trunk port as shown. 【Parameter Description】 Parameter Description Native VLAN Only set one Allowing VLAN Can set up multiple 【Instructions】 Native VLAN: As a Trunk, the port will belong to a Native VLAN. The so-called Native VLAN, is refers to UNTAG send or receive a message on the interface, is considered belongs to the VLAN.

  • Page 26: Hybrid-Port Setting

    PS5026G-2GS-24PoE User Manual PC2: 192.168.2.123, port 9, Trunk allowed VLAN 1-2. PC3: 192.168.2.124, port 10, access VLAN1 (The default port belongs to VLAN1). Can let the PC2 PING PC1, cannot PING PC3. 4.3.3 Hybrid-port setting In the navigation bar to select "VLAN>VLAN Config>Hybrid-port setting", can set the port to take the tag and without the tag as shown.

  • Page 27: Fault/Safety

    PS5026G-2GS-24PoE User Manual 10, 20, sets the Native VLAN port 2 to 20, to tag VLAN for 10, 20. This system e0/1 and the receive system e0/2 PC can be exchanged, but when each data taken from a VLAN is different.

  • Page 28: Anti Attack

    PS5026G-2GS-24PoE User Manual 4.4.1 Anti Attack 4.4.1.1 DHCP In the navigation bar to select "fault/safety>Anti Attack>Anti DHCP Attack", open the DHCP anti-attack function, intercepting counterfeit DHCP server and address depletion attack packets ban kangaroo DHCP server as shown. 【Instructions】 DHCP trusted port configuration, select the port as a trusted port. Prohibit DHCP for address, select the port and save, you can disable this feature for the port.
  • Page 29 PS5026G-2GS-24PoE User Manual Set the connection router 10 ports for trust, then 6 port is set to the prohibit. 3. Verify source mac F0: DE: F1: 12: 98: D2, set server IP address to 192.168.2.1. 4. Set option82 information.
  • Page 30 PS5026G-2GS-24PoE User Manual 5. The port 7 for binding. 4.4.1.2 DOS In the navigation bar to select "Fault/Safety>Anti Attack>Anti DOS", open the anti DOS attack function, intercept land attack packets, illegal TCP packets, to ensure that the device or server to provide normal service to legitimate users as shown.

  • Page 31: Ip Source Guard

    PS5026G-2GS-24PoE User Manual 【Instructions】 Open the anti DOS attack function, intercept Land attack packets, illegal TCP packets, to ensure that the device or server to provide normal service to legitimate users. 【Configuration Example】 Such as: Open the anti DOS attack function.

  • Page 32: Ip/Mac/Port

    PS5026G-2GS-24PoE User Manual 4.4.1.4 IP/Mac/Port In the navigation bar to select "Fault/Safety>Anti Attack>IP/Mac/Port", automatically detect the port based IP address, MAC address of the mapping relationship, and then realize the function of a key binding as shown. 【Instructions】 A bond must be bound before the binding to enable the switch to open, and if you want to access shall be binding and switch the IP address of the same network segment.

  • Page 33: Channel Detection

    PS5026G-2GS-24PoE User Manual Can check the delete option. 4.4.2 Channel Detection 4.4.2.1 Ping In the navigation bar to select "Fault/Safety>Channel Detection>Ping testing", use ping function to test internet connect and host whether to arrive as shown. 【Parameter Description】 Parameter Description...

  • Page 34: Tracert

    PS5026G-2GS-24PoE User Manual Use ping function to test internet connect and host whether to arrive. 【Configuration Example】 Such as: Ping connect the IP address of the PC. 4.4.2.2 Tracert In the navigation bar to select "Fault/Safety>Channel Detection>Tracert testing", tracert detection can detect to the destination through as shown.

  • Page 35: Cable Test

    PS5026G-2GS-24PoE User Manual Parameter Description Destination IP address Fill in the IP address of the need to detect Timeout period Range of 1 to 10 【Instruction】 The function is used to detect more is up to and reach the destination path. If a destination unreachable, diagnose problems.
  • Page 36 PS5026G-2GS-24PoE User Manual 4.4.3 ACL In the navigation bar to select "Fault/Safety>ACL", can be applied to port ACL rules and settings to take effect in time. 【Instruction】 The ACL rules are sequenced, row in front of the match will be priority rule. Many, if the strategy items operating time is relatively longer.
  • Page 37 PS5026G-2GS-24PoE User Manual 4.5 PoE In the navigation bar to select”PoE”, you can set PoE Config and PoE port Config configuration.

  • Page 38: Poe Config

    PS5026G-2GS-24PoE User Manual 4.5.1 PoE config In the navigation bar to select”PoE config”, you can set management and Temperature distribution. 4.5.1.1 management To view the PoE state In the navigation bar to select “PoE Config>management”, information and set up the configuration.

  • Page 39: Temperature Config

    PS5026G-2GS-24PoE User Manual 4.5.1.2 Temperature config In the navigation bar to select “PoE Config>Temperature config”, The alarm threshold can be set up PoE chips. the fllowing picture: 【Parameter description】 Parameter Description Configuration temperature alarm threshold, the range of Alarm threshold 70-149 【Instruction】...

  • Page 40: Poe Port Config

    PS5026G-2GS-24PoE User Manual 4.5.2 PoE port Config In the navigation bar to select “PoE>PoE port Config”, Can be set to port PoE. The fllowing picture: 【Parameter description】 Parameter Description Maximum power Select configure port maximum power Enable Select configuration can make state...

  • Page 41: Mstp

    PS5026G-2GS-24PoE User Manual 4.6 MSTP In the navigation bar to select "MSTP", you can set to the MSTP Region and MSTP Bridge configuration. 4.6.1 MSTP Region In the navigation bar to select "MSTP>MSTP Region", can modify the domain and domain name, add instance is mapped to a VLAN as shown.

  • Page 42: Mstp Bridge

    PS5026G-2GS-24PoE User Manual 【Instruction】 An instance can only be mapped to a VLAN, instance and VLAN is a one-to-one relationship. 【Configuration Example】 Such as: Change the region to DEADBEEF0102, region name is 123, instance 4 is mapped to a VLAN 2, in the first need to create a VLAN 2.
  • Page 43 PS5026G-2GS-24PoE User Manual Mode The model is divided into: the STP, RSTP, MSTP Hello-time Switches sends bpdus in packet interval Ports are not yet received a message in the time, will Max-age initiate topology changes Forward-delay The state of the port switch time...
  • Page 44 PS5026G-2GS-24PoE User Manual 2) Set MSTP has launched port configuration, select the created instance, set priority (port configuration is not online, on-line configuration will only take effect, can click on the "view the current configuration" button to view the configured completed).

  • Page 45: Dhcp Relay

    PS5026G-2GS-24PoE User Manual 4.7 DHCP Relay In the navigation bar to select "DHCP Relay", you can set to the DHCP Relay and option82. 4.7.1 DHCP Relay In the navigation bar to select "DHCP Relay", open the DHCP relay function, set up and view the relay server IP address and its status as shown.

  • Page 46: Option82

    PS5026G-2GS-24PoE User Manual IP address DHCP server address Status Invalid and vaild 【Instruction】 If open the function of relay agent, then receives the broadcast DHCP message, to be delivered in the form of unicast to configure on the server. The DHCP server to IP and switches in the same network segment will only take effect.

  • Page 47: Remark

    PS5026G-2GS-24PoE User Manual IP address Decimal IP address 【Instruction】 Switches, relay information to the DHCP server will take option82, VLAN ID must be configured to DHCP message taken VLAN can bring option82 information. 【Configuration Example】 Such as: Add circuit control, proxy remote, IP address information.
  • Page 48 PS5026G-2GS-24PoE User Manual 【Parameter Description】 Parameter Parameter By setting the rule of heavy tag index number, the current Rule index switch can be set up 32 rule Choose always said - match the match, all the data for tags Operation type...

  • Page 49: Queue Config

    PS5026G-2GS-24PoE User Manual 4.8.2 Queue Config In the navigation bar to select "QOS>Queue Config", can be set up queue scheduling policy as shown. 【Parameter Description】 Parameter Description Can choose four kinds of modes: RR round-robin scheduling Scheduling strategy SP absolute priority scheduling...

  • Page 50: Mapping The Queue

    PS5026G-2GS-24PoE User Manual Such as: Set the scheduling strategy for WRR, weight value respectively, 10, 11, 12, 12, 14, 15, 16, 17. 4.8.3 Mapping the Queue 4.8.3.1 Service class queue mapping In the navigation bar to select "QOS>Mapping the Queue>Service class queue mapping", service category can be mapped to the corresponding queue as shown.

  • Page 51: Differential Service Class Mapping

    PS5026G-2GS-24PoE User Manual 4.8.3.2 Differential service class mapping In the navigation bar to select "QOS>Mapping the Queue>Differential service class mapping", differential service can be mapped to the corresponding service categories as shown. 【Parameter Description】 Parameter Description Server list DSCP field has seven (0-63) is divided into four tables...

  • Page 52: Port To Service Class Mapping

    PS5026G-2GS-24PoE User Manual 4.8.3.3 Port to service class mapping In the navigation bar to select "QOS>Mapping the Queue>Port to service class mapping", port can be mapped to the corresponding service categories as shown. 【Parameter Description】 Parameter Description Port Select the port number (1-26)

  • Page 53: Address Table

    PS5026G-2GS-24PoE User Manual Such as: Port 4, 5, 6 respectively cos4, cos5, cos6. 4.9 Address Table In the navigation bar to select "Address Table", you can set to MAC add and delete, MAC study and Aging and MAC address filtering.

  • Page 54: Mac Add And Delete

    PS5026G-2GS-24PoE User Manual 4.9.1 Mac add and delete In the navigation bar to select "Address Table>Address Table>Mac add and delete", you can add static Mac and delete Mac and view to the current of the Mac address table as shown.

  • Page 55: Mac Study And Aging

    PS5026G-2GS-24PoE User Manual Such as: 1) The port 6 Mac set to static Mac. 2) Clear port 6 static Mac addresses. 4.9.2 Mac study and Aging In the navigation bar to select "Address Table>Mac study and Aging", can be set up port Mac address study limit and Mac address aging time as shown.

  • Page 56: Mac Address Filtering

    PS5026G-2GS-24PoE User Manual 2) Will be dropped or learn the Mac address of the port equipment after 2 minutes disappear automatically from the Mac address table. 4.9.3 Mac address filtering In the navigation bar to select "Address Table>Mac address Filtering", can be filtered according to the condition does not need the Mac address as shown.

  • Page 57: Snmp

    PS5026G-2GS-24PoE User Manual 4.10 SNMP In the navigation bar to select "SNMP", you can set to the SNMP Config and RMON Config. 4.10.1 SNMP Config 4.10.1.1 SNMP Config In the navigation bar to select "SNMP>SNMP Config", you can SNMP function enable as shown.

  • Page 58: Community Config

    PS5026G-2GS-24PoE User Manual 4.10.1.2 Community Config In the navigation bar to select "SNMP >SNMP Config>Community Config", can specify group access as shown. 【Parameter Description】 Parameter Description Community string, is equal to the NMS and SNMP agent Group communication between the password...

  • Page 59: User Config

    PS5026G-2GS-24PoE User Manual 【Parameter Description】 Parameter Description Group name Group name Attestation not only encryption: This group of users transmission of the message need to verify the data don't need to confidential No authentication encryption: This group of users' messages...
  • Page 60 PS5026G-2GS-24PoE User Manual as shown. 【Parameter Description】 Parameter Description User name User name, range 1-16 Attestation only encryption: this group users transmission of the message need to verify the data don't need to confidential No authentication encryption: this group of users' messages...

  • Page 61: Trap

    PS5026G-2GS-24PoE User Manual 4.10.1.5 Trap In the navigation bar to select "SNMP>SNMP Config>Trap Config", can specify sent the trap messages to SNMP host (NMS) as shown. 【Parameter Description】 Parameter Description Destination ip address SNMP host ipv4 address Security name SNMP user name...

  • Page 62: View Config

    PS5026G-2GS-24PoE User Manual 4.10.1.6 View config In the navigation bar to select "SNMP>SNMP Config>View Config", set the view the rules to allow or disable access to some of the MIB object as shown. 【Parameter Description】 Parameter Description View name View mane...

  • Page 63: Rmon Config

    PS5026G-2GS-24PoE User Manual 4.10.2 Rmon Config 4.10.2.1 Statistics Group In the navigation bar to select "SNMP>RMON Config>Statistics Group", set an Ethernet interface statistics as shown. 【Parameter Description】 Parameter Description Index The index number, the value range of statistical information table is 1 ~ 65535...

  • Page 64: History Group

    PS5026G-2GS-24PoE User Manual 4.10.2.2 History Group In the navigation bar to select "SNMP>RMON Config>History Group", record the history of an Ethernet interface information as shown. 【Parameter Description】 Parameter Description Historical control table item index number, value range is 1 ~...

  • Page 65: Alarm Group

    PS5026G-2GS-24PoE User Manual 【Instruction】 At the time of configuration RMON SNMP functions must be open, otherwise the prompt dialog box will appear. 【Configuration Example】 Such as: Monitor Ethernet port 4 historical information. 4.10.2.3 Alarm Group In the navigation bar to select "SNMP>RMON Config>Alarm Group", define alarm group as shown.

  • Page 66: Event Group

    PS5026G-2GS-24PoE User Manual sampling time arrived directly extracting the value of a variable Sampling type for change value sampling, extraction of the The latest sampling arrival of the sampling time is variable in the change of the sampling interval value...

  • Page 67: System

    PS5026G-2GS-24PoE User Manual 【Parameter Description】 Parameter Description The index number, the value range of the event table is 1 ~ Index 65535 The Trap events, when the event is triggered, the system will Description send the Trap message Log events, when the event is triggered, the system will log...

  • Page 68: System Config

    PS5026G-2GS-24PoE User Manual 4.11.1 System Config 4.11.1.1 System settings In the navigation bar to select "System>System Config>System settings", basic information set switch as shown. 【Parameter Description】 Parameter Description Device name Switch name Manage VLAN Switches use VLAN management Manage ip...
  • Page 69 PS5026G-2GS-24PoE User Manual 2) Insert the PC interface 9 or 10 ports, set up the management IP for 192.168.2.12, device name is yoyo, timeout for 20 minutes. 3) Use 192.168.1.12 logging in, sets the system time.

  • Page 70: System Restart

    PS5026G-2GS-24PoE User Manual 4.11.1.2 System restart In the navigation bar to select "System Config>System restart", equipment can be restarted as shown. 【Instruction】 Click the button to restart the switch.The restart process may take 1 minute. Please wait patiently. The page will be refreshed automatically after device restart.

  • Page 71: Password

    PS5026G-2GS-24PoE User Manual 4.11.1.3 Password In the navigation bar to select "System Config>Password", the password change to equipment as shown. 【Instruction】 1. If you set a new Web login password, then log in again after seting the new password. 2. Password can not contain Chinese, full-width characters, question marks and spaces.

  • Page 72: Ssh Login

    PS5026G-2GS-24PoE User Manual 4.11.1.4 SSH login In the navigation bar to select "System Config>SSH login", equipment can be restarted as shown. 【Instruction】 Configure the user through the SSH login device to be turned on to enable the switch. 【Configuration Example】...

  • Page 73: System Log

    PS5026G-2GS-24PoE User Manual 【Configuration Example】 Such as: Telnet will open, the computer Telnet function opens, can be logged on. 4.11.1.6 System log In the navigation bar to select "System Config>system log", to view the log and set up the log server as shown.

  • Page 74: System Upgrade

    PS5026G-2GS-24PoE User Manual 2) Input the Mac keywords, click "query" button, click on the "clear log" button, can clear the log. 4.11.2 System Upgrade In the navigation bar to select "System>System Upgrade". Optional upgrade file to upgrade as shown. Such as: select the file to upgrade.

  • Page 75: Config Management

    PS5026G-2GS-24PoE User Manual 【Instruction】 1. Please confirm that the upgraded version of the same model and the same model. 2. In the upgrade process, you may encounter flash to make the page is temporarily unable to respond to the page, this time can not power off or restart the device, until prompted to upgrade successfully! 4.11.3 Config Management...
  • Page 76 PS5026G-2GS-24PoE User Manual 【Instruction】 Import process can not be closed or refresh the page, or import will fail! After the introduction of configuration, to enable the new configuration, please in this page Restart device Otherwise configuration does not take effect.

  • Page 77: Configuration Backup

    PS5026G-2GS-24PoE User Manual 4.11.3.2 Configuration backup In the navigation bar to select "System>Config Management>Configuration backup", you can configure backup file as shown. 【Instruction】 Operating this page should be in the current configuration page first, the backup file. 【Configuration Example】 Such as: Restore backup.

  • Page 78: Config Save

    PS5026G-2GS-24PoE User Manual 【Instruction】 Restore the factory configuration, will delete all the current configuration. If you have any useful configuration, the current system can lead the factory configuration again after the current configuration. 【Configuration Example】 Such as: Restore configuration can be the guide before they leave the current configuration.

  • Page 79: Administrator Privileges

    PS5026G-2GS-24PoE User Manual 【Instruction】 Save settings will delete all default configurations. If there are useful configurations, click backup Configurations before save the settings. 【Configuration Example】 Such as: Click "save settings" button. 4.11.5 Administrator Privileges In the navigation bar to select "System>Administrator Privileges", configurable ordinary users as shown.

  • Page 80: Info Collect

    PS5026G-2GS-24PoE User Manual 4.11.6 Info Collect In the navigation bar to select "System>Info Collect", you can collect to the system debug information as shown. 【Instruction】 Collect useful information, it may take a few moment. 【Configuration Example】 Such as: Click on "collect" button.

  • Page 81: Appendix: Technical Specifications

    PS5026G-2GS-24PoE User Manual Appendix: Technical Specifications Hardware Features IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, Standards IEEE 802.3z, IEEE 802.3at, IEEE 802.3af, IEEE 802.1q, IEEE 802.1p 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m)

  • Page 82: Software Specification

    PS5026G-2GS-24PoE User Manual Software Specification Ethernet Setup STP/RSTP/MSTP Storm-control Basic function Port Monitor Port rate-limit MAC filtering The ARP deception, the network cheating Filtering the IP port Three layers of functional Static binding IP and MAC Arp trust port Static routing capacity...
