S T A R L I N E
S G 1 0 0 0 S p l i t T h i r d P o r t
T e l e c o m m u n i c a t i o n s O p t i c a l N o d e
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Starline SG1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Motorola Starline SG1000

Summary of Contents for Motorola Starline SG1000

  • Page 1 ® S T A R L I N E S G 1 0 0 0 S p l i t T h i r d P o r t T e l e c o m m u n i c a t i o n s O p t i c a l N o d e I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l...
  • Page 2 Caution Caution Caution Caution These servicing instructions are for use by qualified personnel only. To reduce the risk of electrical shock, do not perform any servicing other than that contained in the Installation and Troubleshooting Instructions unless you are qualified to do so. Refer all servicing to qualified service personnel. Special Symbols That Might Appear on the Equipment Special Symbols That Might Appear on the Equipment Special Symbols That Might Appear on the Equipment...
  • Page 3 Motorola, Inc. Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola to provide notification of such revision or change. Motorola provides this guide without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

  • Page 4: Table Of Contents

    Contents Section 1 Introduction Using This Manual....................................1-3 Related Documentation ...................................1-4 Document Conventions ...................................1-4 If You Need Help ....................................1-4 Calling for Repairs....................................1-5 Section 2 Overview Housing ......................................2-2 Housing Lid ....................................2-2 Mounting Holes..................................2-2 Port Locations..................................2-2 Gaskets .....................................2-3 Power Supply....................................2-5 Network Monitoring..................................2-6 Ingress Control ....................................2-6 Configuration ....................................2-6 Forward RF Path....................................2-8 Level Control....................................2-10...
  • Page 5 Contents Configuring the Return-Path................................. 3-14 Installing SG1000 Optical Modules .............................. 3-15 Removing SG1000 Optical Modules............................. 3-16 Ingress Control Option.................................. 3-17 Status Monitor Option ................................... 3-17 Cleaning the Optical Connectors ..............................3-18 Section 4 Installation Pre-installation Procedures ................................4-1 Removing the Lid ..................................4-1 Removing the E-pack................................
  • Page 6 Contents Figure 2-5 Configuration notation..............................2-7 Figure 2-6 SG1000 – dual-output, optical-return block diagram ....................2-9 Figure 2-7 Relative level dB versus 750 MHz..........................2-10 Figure 2-8 Relative level dB versus 870 MHz..........................2-11 Figure 2-9 SG1000 optical transmitter block diagram .......................2-12 Figure 3-1 SG1000 60/90 Vac power supply ..........................3-2 Figure 3-2 Fuse configuration................................3-3 Figure 3-3 Fuse locations ................................3-4 Figure 3-4 SG1000 with 220 Vac power cord..........................3-5...

  • Page 7: Figure 1-1 Sg1000 Node-Closed

    Section 1 Introduction ® Motorola’s SG1000 telecommunications optical node with split third port performs lightwave-to-RF and RF-to-lightwave signal conversions in an optical transmission link. This product supports a wide variety of advanced hybrid-fiber/coaxial network topologies. Product enhancements including the activation of Port 3 as a split, fully diplexed RF port are included in this manual.

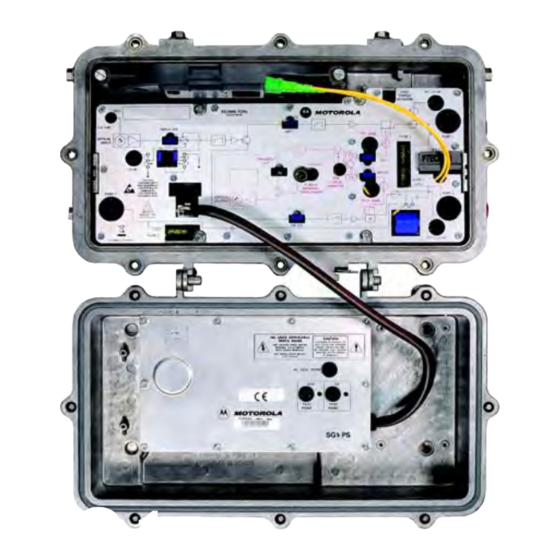

  • Page 8: Figure 1-2 Sg1000 Node-Open

    Introduction Figure 1-2 illustrates an open SG1000 telecommunications optical node: Figure 1-2 SG1000 node—open PUSH TP1 -20dB STATUS MONITOR SG1- S G 1 0 0 0 O p t i c a l N o d e 1 V / m W JXP 1 TP1 -20dB FUSE 1...

  • Page 9: Using This Manual

    Introduction Features include: 750 MHz or 870 MHz forward bandwidth option Built-in optical receiver Optional optical return transmitter ™ Optional LIFELINE status monitoring Optional ingress switching capability through the LIFELINE status monitor One or two RF outputs with optional third port activation using MB-SP and MB-DC* Built-in thermal compensation 15 amp power passing Modular plug-in diplex filters and equalizers...

  • Page 10: Related Documentation

    Denotes a displayed variable, a variable that you must type, or is used for emphasis If You Need Help If you need assistance while working with the SG1000, contact the Motorola Technical Response Center (TRC): Inside the U.S.A.: 1-888-944-HELP (1-888-944-4357) Outside the U.S.A.: 1-215-323-0044...

  • Page 11: Calling For Repairs

    Introduction Calling for Repairs If repair is necessary, call the Motorola Repair Facility at 1-800-642-0442 for a Return for Service Authorization (RSA) number before sending the unit. The RSA number must be prominently displayed on all equipment cartons. The Repair Facility is open from 7:00 AM to 4:00 PM Pacific Time, Monday through Friday.

  • Page 12: Overview

    Section 2 Overview ® Motorola’s STARLINE SG1000 with split third port is the newest addition to the next generation of telecommunications optical nodes. It provides a low cost solution to support evolving fiber-deep networks. It meets the latest demands of a single and two-way broadband network application including broadcast video, telephony and data.

  • Page 13: Housing

    Overview Housing The SG1000 optical node is furnished in an aluminum housing that protects the electronics from weather and dissipates internally generated heat. Figure 2-1 illustrates the SG1000 housing: Figure 2-1 SG1000 housing dimensions — front and side view 9.80 Release tab 16.13 5.68...

  • Page 14: Gaskets

    Overview Figure 2-2 illustrates a front and end view of the closed housing and the port locations: Figure 2-2 Port locations Fiber Fiber input input Base Base Gaskets Each housing is equipped with a woven-wire RF gasket and a silicone-rubber weather gasket to provide a seal between the housing base and lid.

  • Page 15: Figure 2-3 Housing Gaskets

    Overview Figure 2-3 illustrates the housing gaskets: Figure 2-3 Housing gaskets RF gasket (woven wire) PUSH TP1 -20dB STATUS MONITOR SG1- S G 1 0 0 0 O p t i c a l N o d e 1 V / m W JXP 1 TP1 -20dB FUSE 1...

  • Page 16: Power Supply

    Overview Power Supply The SG1000 power supply (SG1-PS) is located in the housing lid to optimize heat transfer and to balance the thermal load between the base and the lid. An umbilical cord connects the SG1-PS to the housing base. A flexible power-distribution design enables you to power the node from any of the three RF ports.

  • Page 17: Network Monitoring

    Overview Network Monitoring The optional LIFELINE status monitoring system (LL-SG1) enables you to monitor the SG1000 from a headend or remote location. The LL-SG1 transponder is located in the lid, as illustrated in Figure 2-4, and is connected to the electronics package (E-pack) with an umbilical cord. The LIFELINE network monitoring system includes: LL-CU control units These units are connected to the system at the headend and interrogate each...
  • Page 18 Overview The shipped configuration is noted in a label on the RF chassis cover illustrated in Figure 3-4. Figure 2-5 illustrates the configuration notation: Figure 2-5 Configuration notation Return Path Configuration Reserved No transmitter Reserved for future use SG1-FPT/* (0.4 mW) SG1-DFBT/* (1.0 mW) Service Cable SG1-DFBT3/* (2.0 mW)

  • Page 19: Forward Rf Path

    RF output is not populated on the E-pack. To field upgrade a single-output node to a dual-output node, contact your Motorola sales representative for the appropriate kit. Port 1 is a dedicated node output in the SG1000. Where you install the furnished MB-JMP jumper determines whether the other path feeds Port 2 or Port 3.
  • Page 20 Overview Figure 2-6 illustrates a dual-output, optical-return configuration using the SG1-DFBT/*, DFBT3/*, IFPT/*, EIFPT/*, or FPT/* return-path transmitter: Figure 2-6 SG1000 – dual-output, optical-return block diagram 25 dBmV @ 0.0 dBm Input, 79 channels, NTSC, ALM-9 19 dBmV @ -3.0 dBm Input, 79 channels, NTSC, ALM-9 Test point 0.0 dB -1.0 dB...

  • Page 21: Level Control

    2-10 Overview Level Control The gain of hybrid IC amplifiers varies with temperature. The integrated thermal control circuit senses temperature and works to offset the gain variation in the hybrid IC amplifier by signaling needed changes to the RF PIN attenuator. In addition, changes in system channel loading and/or splices in the fiber link can change the level of the received signal.

  • Page 22: Return Path

    Overview 2-11 Figure 2-8 illustrates the relative level dB chart for 870 MHz bandwidth: Figure 2-8 Relative level dB versus 870 MHz SG1000 870 MHz Slope Chart 14 dB 12.5 dB 10 dB 8 dB 6 dB Frequency, MHz Digital loading is 6 dB below analog levels Return Path To meet present and future return-path requirements, you can configure the SG1000 with one of five optical transmitters to accommodate data and video signal transmission.
  • Page 23 2-12 Overview Figure 2-9 illustrates a functional block diagram of the SG1000 optical transmitter: Figure 2-9 SG1000 optical transmitter block diagram Return level Optical power monitor test point sense signal (-5 dBmV nominal) (1.0 V/mW) Optical power test point circuit (1.0 V/mW) Return level OMI alignment pad...

  • Page 24: Setup And Operation

    Section 3 Setup and Operation This section provides information governing the use of various options and applications required by your system. Before you install the SG1000, it must be setup to meet the power and configuration requirements for the node location. Bench setup is recommended to ensure proper functioning of all components and to simplify field installation.
  • Page 25 Setup and Operation Figure 3-1 illustrates the SG1000 60/90 Vac power supply: Figure 3-1 SG1000 60/90 Vac power supply 60/90 V SG1-PS selector power supply Transponder H I (90V) NO USER S ERV ICABLE LO (60V ) CAUTION PARTS INSIDE VOLTAG ES EXCESS USE CAUTION WHEN MAKING...
  • Page 26 Setup and Operation Figure 3-2 diagrams fuse configurations for ac powering: Figure 3-2 Fuse configuration RF chassis F101 Port 1 Port 3 F103 F102 Port 2 SG1000 Lid Gas tube Power supply FTEC DANGER! Voltages up to 90 Vac are accessible. To avoid a shock hazard, confirm that the node is not powered before removing the cover or replacing the fuses.
  • Page 27 Setup and Operation Figure 3-3 illustrates the RF chassis cover and fuse locations for the 60/90 Vac power supply: Figure 3-3 Fuse locations Port 1 fuse FTEC TP1 - 20dB STATUS MONITOR SG1- S G 1 0 0 0 O p t i c a l N o d e 1 V / m W JX P 1 TP1 -20dB...

  • Page 28: 220 Vac Supply

    Setup and Operation 220 Vac Supply The SG1000 is now available with a 220 Vac line power option. This node is designed for indoor use only and has a reduced operating temperature. Do not use this power supply in conjunction with a coaxial network-powered system. The SG1-PS/220 power supply is also located in the housing lid to optimize heat transfer and balance the thermal load between the base and the lid.
  • Page 29 Setup and Operation The SG1-PS/220 equipped node has no power passing capability, and the fuses on the main board have been removed at the factory. Figure 3-5 illustrates the RF amplifier cover on the SG1000 with the 220 Vac power option: Figure 3-5 SG1000 amplifier cover with 220 Vac power option TP1 -20dB...
  • Page 30 Setup and Operation Figure 3-6 illustrates the SG1-PS/220 installed in the lid of the SG1000: Figure 3-6 SG1-PS/220 installed in the SG1000 AC line SG1-PS/220 DC output cord power supply cable CAUTION RISK O F ELECTRIC SHO C K AC INPUT DO NOT O PEN 176-264 VAC;...

  • Page 31: Setting-Up The Forward Path

    Setup and Operation Setting-Up the Forward Path The following subsections provide information for specific forward-path functions. For your convenience, Figures 3-7 and 3-8 show the RF chassis installed in the SG1000 housing base. Figure 3-7 illustrates the RF chassis with the cover on as it provides a functional diagram and indicates the location of all major components: Figure 3-7 RF chassis with cover...

  • Page 32: Selecting The Gain Control

    Setup and Operation Before you begin: Test the input power using an optical power meter to ensure that expected levels are present. Refer to Section 4, “Installation,” Installing the Fiber Cables to verify that required connections have been made to the bulkhead fitting. Selecting the Gain Control Thermal control circuitry provides thermal gain control that compensates for changes in gain caused by temperature variations.

  • Page 33: Forward Path Padding

    3-10 Setup and Operation Forward Path Padding The pad values, presented in Table 3-2, serve as a starting-point reference for typical installations. These charts are prepared specifically for 77 channel systems with an upper-band edge of 750 MHz or 870 MHz. For a 110 channel system, reduce the value of the input JXP by 1.5 dB.

  • Page 34: Selecting The Wavelength

    Setup and Operation 3-11 Selecting the Wavelength You can use the SG1000 with 1310 or 1550 nm transmitters. An internal wavelength-selection jumper optimizes the optical-power test point calibration for the system wavelength. This jumper has no effect on the optical-to-RF performance (gain, flatness, slope) of the node. The wavelength jumper is factory-set and provides optimum calibration in a 1310 nm system.

  • Page 35: Optical Power Test Point

    The receiver levels measured: Are on the input side of the forward input JXP (P101). Assume the signal source is a Motorola advanced laser module (ALM) series transmitter at 1310 nm. Are typically 2 dB greater than the minimum levels listed in the table.
  • Page 36 Setup and Operation 3-13 Figure 3-11 illustrates the MB-SP splitter: Figure 3-11 MB-SP splitter MB-SP Figure 3-12 illustrates the MB-DC/* directional coupler: Figure 3-12 MB-DC/* directional coupler Arrow on silkscreen indicates direction of signal flow to coupled port MB-DC/10 SG1000 Split Third Port Installation and Operation Manual...

  • Page 37: Configuring The Return-Path

    All transmitters are designed to operate at a recommended 28 dBmV/ch total power at the housing inputs. You can use all of the transmitters in conjunction with Motorola AM-RPR, AM-OMNI-RPR/2, AM-OMNI-RPR/2C, GX2-RX200, or other similar return-path optical receivers. Figure 3-13 illustrates an SG1-DFBT/* optical transmitter. The structure of the DFBT3/*, EIFPT/* and FPT/* transmitters is identical.

  • Page 38: Installing Sg1000 Optical Modules

    Setup and Operation 3-15 Additional optical transmitter features include: Optical power test point This test point enables you to monitor the optical output level of the module. The nominal scale factor is 1.0 V/mW. This test point does not track changes in optical power caused by laser tracking error.

  • Page 39: Removing Sg1000 Optical Modules

    3-16 Setup and Operation Secure the optical module with the four 6-32 × 0.25 printed-circuit board mounting screws and torque to 8 to 12 in-lbs. Torque the two 6-32 × 0.75 hybrid mounting screws to 15 to 17 in-lbs. Install the cover on the optical module. Loosen the screw holding the fiber strain relief just enough to rotate the strain relief cover away from the strain relief block.

  • Page 40: Ingress Control Option

    Status Monitor Option The model LL-SG1-*/* transponder is available as part of the Motorola LIFELINE status-monitoring system. The LL-SG1-*/* transponder continuously monitors node parameters, executes commands, and reports to the polling computer when interrogated. Section 2, “...

  • Page 41: Cleaning The Optical Connectors

    3-18 Setup and Operation If a problem is suspected, the LED visible on top of the transponder is useful in troubleshooting. During normal operations, it indicates the following: The LED illuminates when the module is powered up A flashing LED indicates two-way communication with the LL-CU control unit A dark LED indicates loss of communication or power Table 3-5 lists some common problems and possible solutions: Table 3-5...
  • Page 42 Setup and Operation 3-19 To clean the optical connectors on the service cable: Pull up on the fiber tray carriage and lower the fiber tray to expose the fiber connections as illustrated in Figure 4-5. Disconnect the service cable from the bulkhead adapter. Carefully clean the optical connector using a suitable optical connector cleaning kit.

  • Page 43: Installation

    Section 4 Installation This section provides pre-installation instructions that enable you to prepare the node for mounting. It also provides detailed instructions for installing the node. Pre-installation Procedures To decrease weight and the possibility of damage during installation, the housing is normally mounted with the lid and E-pack removed.

  • Page 44: Installing The Node

    Installation Installing the Node Installation procedures include: Installing the housing on the strand Installing the E-pack Splicing the four-fiber service cable to the transportation fiber Installing the pin-type connectors Installing the coaxial and fiber cables Closing the housing Strand Wire Mounting Two strand clamps and bolt assemblies are located on top of the housing for normal horizontal mounting below the strand.

  • Page 45: Installing The E-Pack

    Installation To mount the housing to the strand wire: Loosen the two 5/16-18 strand clamp bolts located on top of the housing. Engage the strand in the housing strand clamps. Do not fully tighten the hex-head bolts at this time. This enables the clamps to slide along the strand wire until the housing is finally positioned with respect to the cables.

  • Page 46: Installing Pin-Type Connectors

    Installation Splice each fiber according to procedures recommended by the manufacturer of the splicing equipment. A blue-coded fiber is suggested for the forward-signal distribution and a brown-coded fiber is recommended for the return path. Cleanliness in the work area is essential.

  • Page 47: Installing The Coaxial Cables

    Installation Installing the Coaxial Cables To install the coaxial cables: Loosen the eight bolts that secure the housing lid to the base. Lower the housing lid away from the housing base. For each port, verify that the seizure screw is loosened to accept the center pin of the cable connector.
  • Page 48 Installation Pull up on the fiber tray carriage and open the fiber tray as illustrated in Figure 4-4: Figure 4-4 Fiber tray and carriage Fiber tray carriage Fiber tray Dress the fibers into the two-chambered fiber tray according to the fiber-optic cables point of entry.
  • Page 49 Installation If the fiber service cable enters the housing through the left fiber port: Make one clockwise revolution in the right chamber of the tray then, make two counter-clockwise revolutions in the left chamber as illustrated in Figure 4-5: Figure 4-5 Cable dressing with left port entry SG1000 Split Third Port Installation and Operation Manual...
  • Page 50 Installation If the fiber-optic cable enters the housing through the right fiber port: Make one counter-clockwise revolution in the left chamber of the fiber tray then, make one clockwise revolution in the right chamber. Make one final counter-clockwise revolution in the left chamber of the tray as illustrated in Figure 4-6: Figure 4-6 Cable dressing with right port entry...
  • Page 51 Installation Close the fiber tray and slide the fiber tray carriage into its retracted position in the housing as illustrated in Figure 4-7: Figure 4-7 Retracted fiber tray Tighten the compression nut on the fiber cable until it bottoms out. Finally, tighten the water seal nut until there is no gap between it and the compression nut as illustrated in Figure 4-2.

  • Page 52: Closing The Housing

    4-10 Installation Closing the Housing Close the housing and use a torque wrench to sequentially and progressively tighten the housing bolts to a final torque of 4 to 6 ft-lbs using the numeric sequence molded into the lid as illustrated in Figure 4-8: Figure 4-8 Housing bolt tightening sequence After you complete the initial tightening sequence, return to the first two bolts and retorque.

  • Page 53: Specifications

    Appendix A Specifications Specifications for the SG1000 are valid over the given bandpass and operating temperature ranges. Refer to the current product catalog for additional information not provided in this section. Optical Optical wavelength Optical wavelength 1310 ±20 nm to 1550 ±30 nm Optical wavelength Optical wavelength Optical input...

  • Page 54: Rf For The Sg1-*/* Laser Transmitters

    Specifications RF for the SG1-*/* Laser Transmitters RF passband RF passband RF passband RF passband DFBT/*, DFBT3/*, IFPT/*EIFPT/* DFBT/*, DFBT3/*, IFPT/*EIFP 5 MHz to 200 MHz, depending on split DFBT/*, DFBT3/*, IFPT/*EIFP DFBT/*, DFBT3/*, IFPT/*EIFP FPT/* FPT/* FPT/* FPT/* 5 MHz to 65 MHz, depending on split Flatness (P Flatness (P Flatness (P...

  • Page 55: Torque Specifications

    Appendix B Torque Specifications Torque specifications are valid for all models of the SG1000 node. Torque Fastener Screw Size Wrench Size In-lbs Ft-lbs Strand clamp/pedestal Strand clamp/pedestal 5/16 - 18 1/2 inch 120 - 144 10 - 12 Strand clamp/pedestal Strand clamp/pedestal mounting mounting...

  • Page 56: Abbreviations And Acronyms

    Abbreviations and Acronyms The abbreviations and acronyms list contains the full spelling of the short forms used in this manual. A A A A ampere ac ac ac ac alternating current automatic gain control advanced laser module angled physical contact bandwidth CATV CATV...
  • Page 57 Abbreviations and Acronyms-2 milliwatt nanometer NTSC NTSC NTSC NTSC National Television Standards Committee printed circuit board positive intrinsic-negative P P P P - - - - V V V V peak-to-valley radio frequency relative intensity noise root mean square Return for Service Authorization snap connector V V V V volt...
