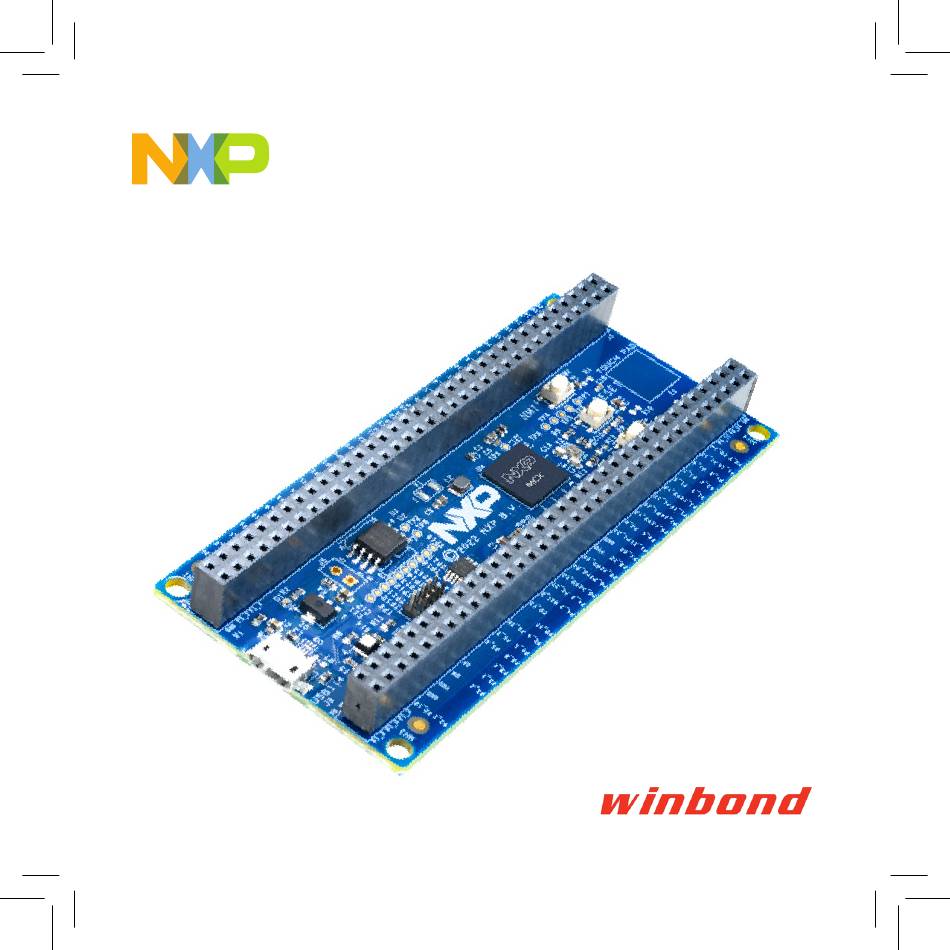

- Page 1 QUICK START GUIDE MCX-N9xx-BRK MCX-N9xx-BRK In partnership with...
- Page 2 GET TO KNOW THE MCX-N9xx-BRK SW1 Reset W25Q64JVSSIQ Green LED SW2 NMI Header Header Touch Touch Header Header SW3 ISP RGB LED I3C sensor MCXN947 P3T1755DP Power/MCXN947 MCXN947 SWD High-speed USB Header connector Figure 1: MCX-N9xx-BRK Callouts *Note: The headers (J1 and J2) come in the box and require manual soldering.
- Page 3 QUICK START GUIDE MCX-N9xx-BRK GET TO KNOW THE MCX-N9xx-BRK CONTINUED P3_16 P5_3 P5_2 P0_16 P1_1 FC3P1 P1_4 P3_10 P0_17 P1_2 FC3P2 P3_23 P3_20 P3_1 P1_0 FC3P0 P3_17 P4_0 FC2P0 P0_20 P1_3 FC3P3 P4_1 FC2P1 LEDG P3_2 U0DM 5.0V P3_21 LEDB P3_3 U0DP 5.0V...
- Page 4 HOW TO GET STARTED 1. Connect the micro-USB cable to the High-speed USB connector (J3) of the MCX-N9xx-BRK board to a PC, the green LED (D1) will illuminate, indicating the board is on. 2. Open up a terminal window for the USB VCOM and use settings: baud rate 115200, 8-bit data, no parity, 1 stop bit, no hardware flow control.
