2. INSTALLATION

IMPORTANT For the correct operation of gesture commands, do not install the device in places
exposed to direct sunlight because the IR sensor is sensitive to light.

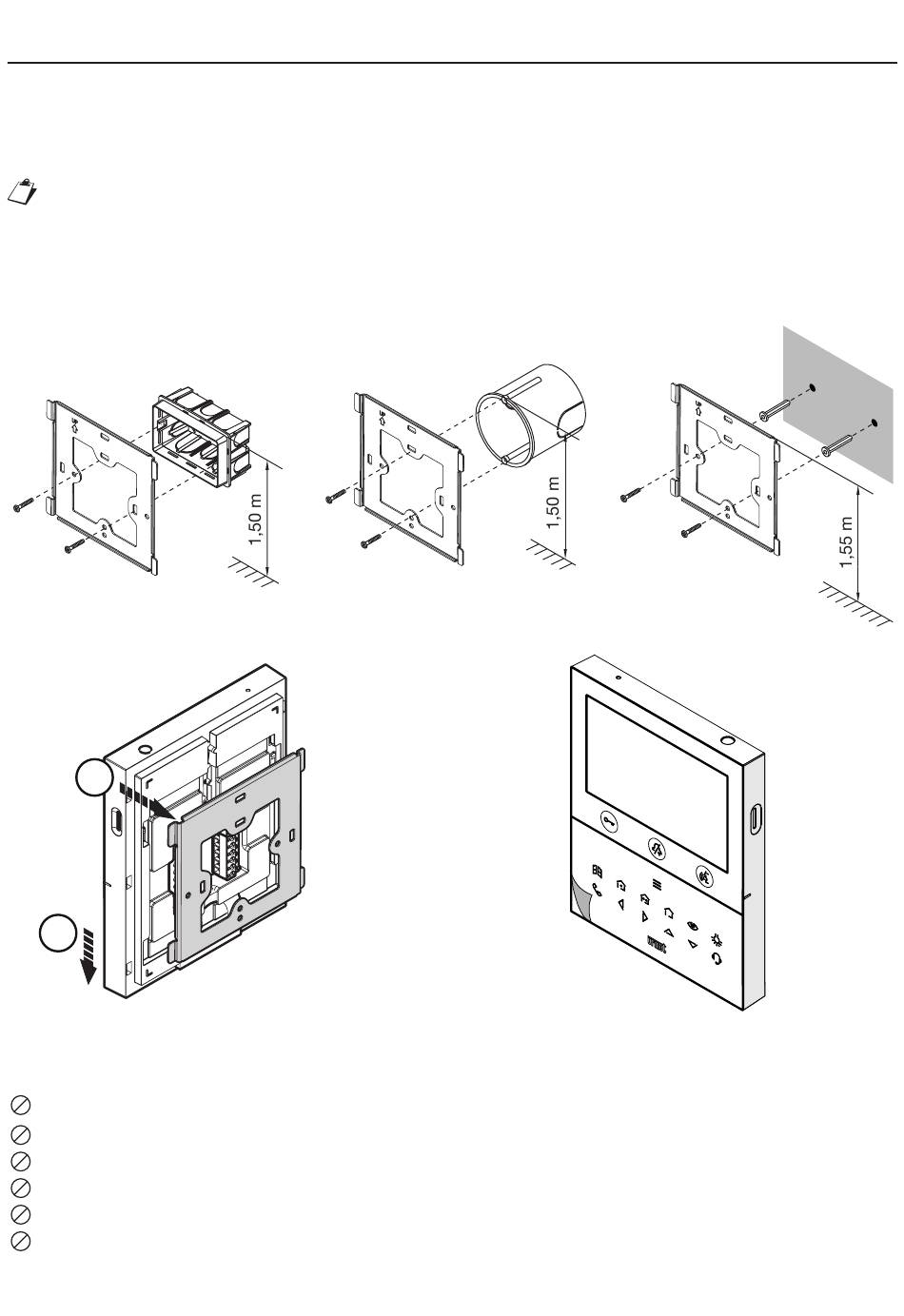

• Embed the flush-mounting box Mod. 503 in the wall or the flush-mounting box Ø 60 at the height shown
in the following drawing.
The flush-mounting box Mod. 503 can be installed either horizontally or vertically.
• Fix the bracket to the mounting box as indicated.
• Make the connections to the terminal board.
• Fix the door phone to the bracket.
• Remove the protective film from the display.
• Power on the system.
Box Mod. 503
n° 2 M3,5 x 19 mm
provided
1
2

2.1. DESCRIPTION OF TERMINALS

}
S-
Call repeater
S+
]
Panic alarm
PANIC
]
Floor call
FC
DS1761-032
Box Ø 60 mm
n° 2 M3,5 x 19 mm
countersunk screws
n° 2 screws and screw
anchors included
