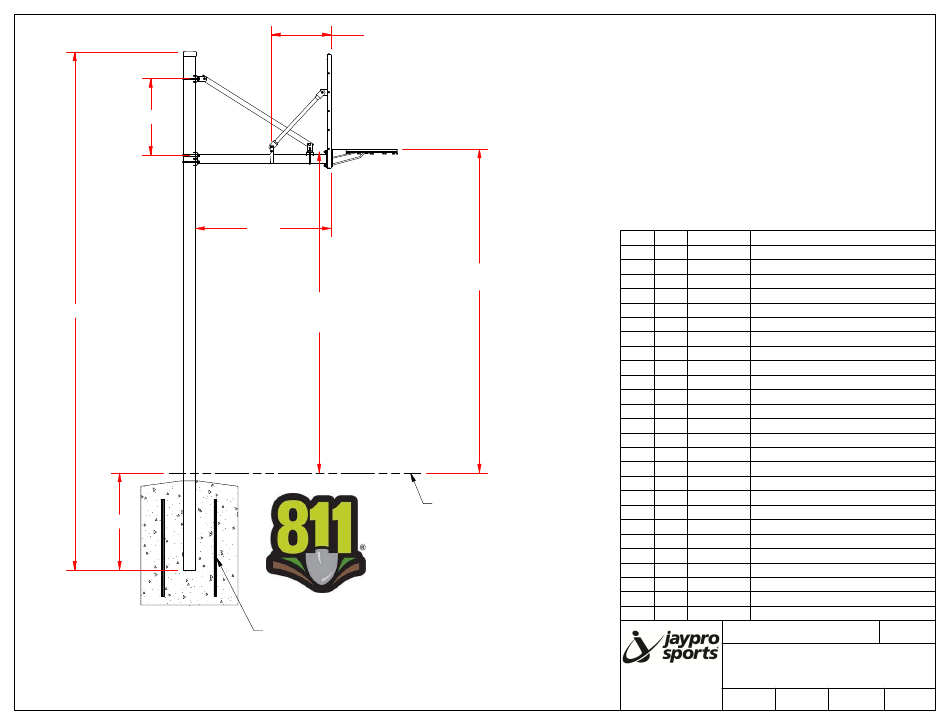

Jaypro Sports SPA6 Assembly Instructions

28 3/8 in
16'-0"
3'-0"
CHECK LOCAL BUILDING CODES
BEFORE STARTING THE FOOTING,
AS BUILDING CODES MAY VARY.
LOCAL BUILDING CODES SHOULD
BE ADHERED TO IF REQUIREMENTS
ARE GREATER THAN THOSE
OUTLINED HERE.
22"
(SEE NOTICE 4)
* ACTUAL DIMENSION MAY VARY
DEPENDING ON CHOICE OF
BACKBOARD USED.
* 4'-2"
10'-0" TOP OF GOAL
TO PLAYING SURFACE
119" CENTER OF
TOP MOUNTING HOLE
TO PLAYING SURFACE
RECOMMEND:
1/2" ~ 3/4" REBAR x 36" 4 PLACES
REBAR TO BE TIED TOGETHER
(TO BE SUPPLIED BY INSTALLER)
PLAYING SURFACE

IMPORTANT NOTICE:

1) EQUIPMENT SHOULD BE CHECKED REGULARLY
FOR PROPER CONNECTING HARDWARE AND
STRUCTURAL INTEGRITY. REPLACE ANY DAMAGED
OR MISSING HARDWARE IMMEDIATLEY.
2) USE OF THE EQUIPMENT OTHER THAN INTENDED,
MAY BE HAZARDOUS.
3) ALTERATION OR MODIFICATION OF THIS
EQUIPMENT MAY BE HAZARDOUS AND RESULT IN
INJURY. FOR REPAIR OR REPLACEMENT, CONTACT
JAYPRO SPORTS.
4) ADJUST AS NEEDED PER BOARD
Notes:
1) BACKBOARD VARIES PER CUSTOMER ORDER.
2) GOAL VARIES PER CUSTOMER ORDER.
ITEM QTY PART #
A 1 SPU-4 4 1/2 OD SNGL UPRT X 16'
B 1 SP-4R OUTRIGGER 4' SPA
C 1 VARIES BACKBOARD
D 1 VARIES GOAL
1 1 SP4-PIPE-A SPA 4' BRACE ARM OUTRIGGER
2 1 SPA6-PB 3 1/2" SADDLE TO 1.90" PIPE
3 1 SP4-PT 4-1/2" SADDLE TO 1.90" PIPE
4
2 SP43 ANGLE BRACKET SPA SERIES
5 2 BRC30 1.315 DIA BB BRACE
6 1 BRC352 3 1/2 in BAND CLAMP WITH TWO HOLES
7 1 EC0030 4.5" Top Cap
8 2 EP0019 PLASTIC END PLUG 77-8
9 2 HB5031 3/8-16 x 1-1/2 CARRIAGE BOLT-ZP
10 1 HB5040 3" (3 1/2" PIPE) U-BOLT, 1/2-13 GR5 ZP
11 3 HB5064 4'' U-BOLT (FOR 4 1/2'' OD) ZP
12 6 HN264 3/8 - 16 Hex Nut - ZP - GrNC
13 2 HN268 1/2-13 UNC-Thin Nylon Lock Nut-ZP-GrNC
14 6 HN704 1/2 - 13 Hex Nut - ZP - GrNC
15 2 HN5038 1/2 - 13 FLANGE LOCK NUT - ZP - Gr5
16 2 HS287 3/8-16 x 1-1/4 HEX CAP SCREW-ZP-GrNC
17 2 HS288 3/8-16 x 1-1/2 HEX CAP SCREW-ZP-GrNC
18 2 HS743 3/8-16 x 3/4 HEX CAP SCREW-ZP-GrNC
19 2 HS5160 1/2-13 x 3 HEX CAP SCREW-ZP-Gr5
20 6 HW334 3/8 LOCK WASHER-ZP-GrNC
21 6 HW1245 1/2 LOCK WASHER-ZP-GrNC
22 12 HW2050 3/8 STD WASHER-ZP-GrNC
MODEL NUMBER:
SPA4
PRODUCT NAME:
4 FT EXTEND SINGLE BACKSTOP FOR
RECTANGULAR & FAN SHAPED
976 Hartford Turnpike
BACKBOARDS
Waterford, CT 06385 USA
DATE: REV:
(800)243-0533 Fax: (800)988-3363
-
www.jaypro.com 3/20/2023
SPA6
DESCRIPTION
CHECKED BY:
MT
DRAWN BY: SHEET:
Moune T. 1 OF 5
