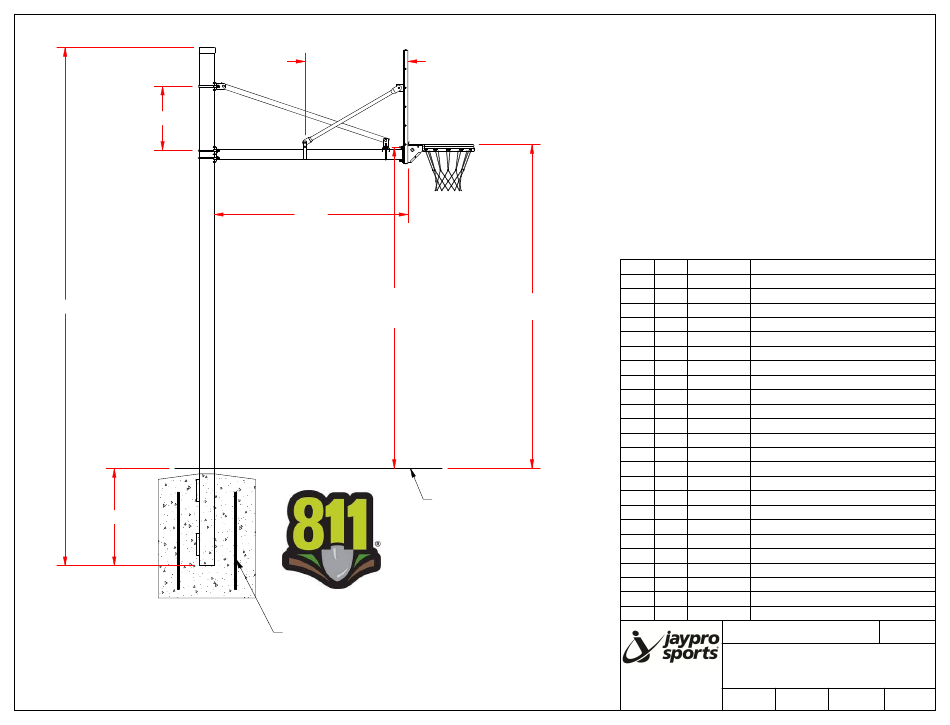

Jaypro Sports SPA6 Assembly Instructions

23 3/4"
16'-0"
3'-0"
CHECK LOCAL BUILDING CODES
BEFORE STARTING THE FOOTING,
AS BUILDING CODES MAY VARY.
LOCAL BUILDING CODES SHOULD
BE ADHERED TO IF REQUIREMENTS
ARE GREATER THAN THOSE
OUTLINED HERE.
38"
(SEE NOTICE 4)
* ACTUAL DIMENSION MAY VARY
DEPENDING ON CHOICE OF
BACKBOARD USED.
* 6'-0"
119" CENTER OF
TOP MOUNTING HOLE
TO PLAYING SURFACE
PLAYING SURFACE
RECOMMEND:
1/2" ~ 3/4" REBAR x 36" 4 PLACES
REBAR TO BE TIED TOGETHER
(TO BE SUPPLIED BY INSTALLER)
IMPORTANT NOTICE:
1) EQUIPMENT SHOULD BE CHECKED REGULARLY
FOR PROPER CONNECTING HARDWARE AND
STRUCTURAL INTEGRITY. REPLACE ANY DAMAGED
OR MISSING HARDWARE IMMEDIATLEY.
2) USE OF THE EQUIPMENT OTHER THAN INTENDED,
MAY BE HAZARDOUS.
3) ALTERATION OR MODIFICATION OF THIS
EQUIPMENT MAY BE HAZARDOUS AND RESULT IN
INJURY. FOR REPAIR OR REPLACEMENT, CONTACT
JAYPRO SPORTS.
4) ADJUST AS NEEDED PER BOARD
NOTES:
1) BACKBOARD VARIES PER CUSTOMER ORDER.
2) GOAL VARIES PER CUSTOMER ORDER.
ITEM
A
B
10'-0" TOP OF GOAL
C
TO PLAYING SURFACE
D
1
2
3
4
5
6
7
8
9
10
12
13
14
15
17
18
19
20
21
22
976 Hartford Turnpike
Waterford, CT 06385 USA
(800)243-0533 Fax: (800)988-3363
QTY PART # DESCRIPTION
1 SPU-6 5 9/16 OD X 16' SINGLE UPRIGHT
1 SP-6R OUTRIGGER 6' SPA
1 VARIES BACKBOARD
1 VARIES GOAL
1 SPA6-BRACE BRACE KIT
1 SP6-PIPE-A SPA 6' BRACE ARM OUTRIGGER
1 SPA6-PA 5 9/16" SADDLE TO 1.90" PIPE
1 SPA6-PB 3 1/2" SADDLE TO 1.90" PIPE
2 HN264 3/8 - 16 Hex Nut - ZP - GrNC
6 HN704 1/2-13 HEX NUT, ZP
2 HS743 3/8-16 x 3/4 HEX CAP SCREW-ZP-GrNC
6 HW1245 1/2 LOCK WASHER-ZP-GrNC
2 HW334 3/8 LOCK WASHER-ZP-GrNC
2 HB5031 3/8-16 x 1-1/2 CARRIAGE BOLT-ZP
2 HW2050 3/8 STD WASHER-ZP-GrNC
6 HW2044 1/2 SAE WASHER-ZP-GrNC
1 EC0050A 5 9/16" TOP CAP
3 HB5065 5'' U-BOLT (FOR 5 9/16'' OD)ZP
2 SP43 ANGLE BRACKET SPA SERIES
2 EP0019 PLASTIC END PLUG 77-8
1 HB5040 3" (3 1/2" PIPE) U-BOLT, 1/2-13 GR5 ZP
2 HN5038 1/2 - 13 FLANGE LOCK NUT - ZP - Gr5
2 HN268 1/2-13 UNC-Thin Nylon Lock Nut-ZP-GrNC
2 HS5160 1/2-13 x 3 HEX CAP SCREW-ZP-Gr5
MODEL NUMBER:
SPA6
PRODUCT NAME:
6 FT EXTEND SINGLE BACKSTOP FOR
RECTANGULAR & FAN SHAPED
BACKBOARDS
DATE: REV:
www.jaypro.com 9/21/2022 C
SPA6
CHECKED BY:
WVB
DRAWN BY: SHEET:
Moune T. 1 OF 5
