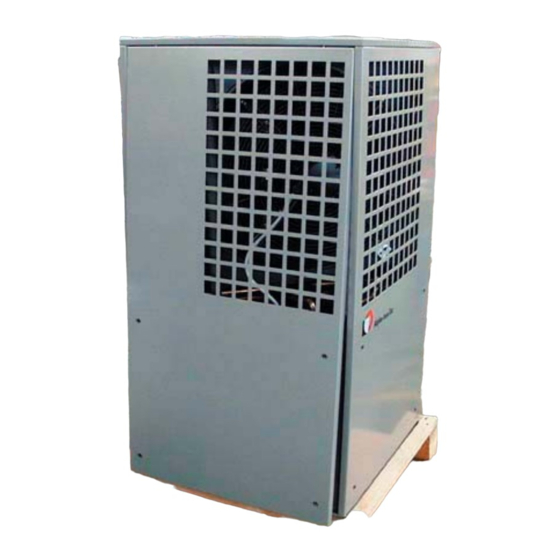

Alpha-InnoTec Solair LW 70M-A Instruction Manual

Alpha-InnoTec Solair LW 70M-A Instruction Manual

Air / water heat pumps outside installation

Advertisement

Quick Links

Alpha-InnoTec GmbH
Industriestrasse 3, D-95359 Kasendorf
Tel.: +49 (0)9228 99060
Fax.: +49 (0)9228 990629
www.alpha-innotec.com
e-mail:info@alpha-innotec.de

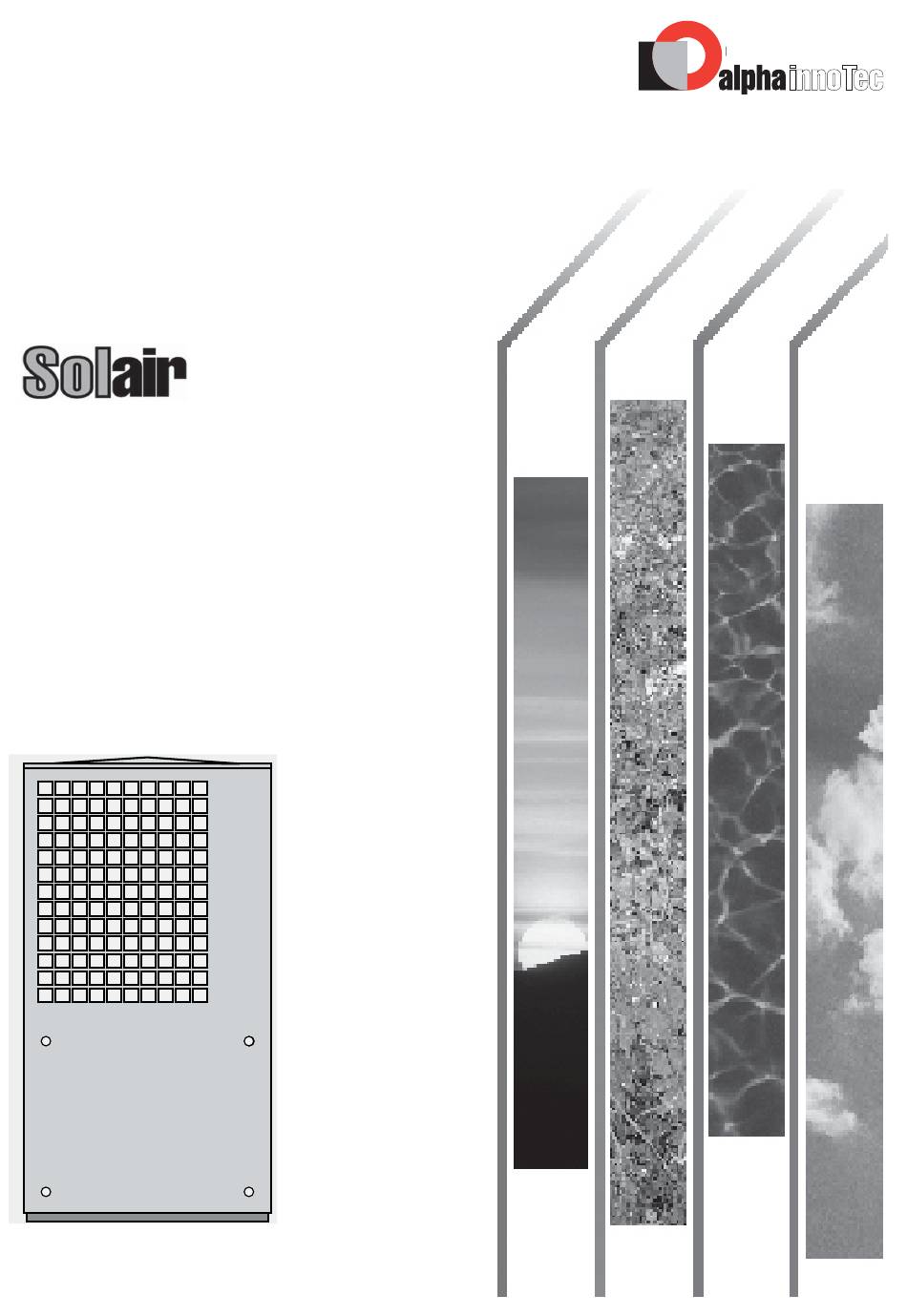

INSTRUCTION MANUAL
with Device Information
Air / Water Heat Pumps
Outside Installation
This instruction manual is part of the scope of supply and must be handed over to the user of the plant.
Please keep safely and show to authorized service-technicians, if necessary.
LW 70M-A
LW 80M-A
LW 80M-A/X
LW 80M-A/S/X
the future of heat pumps

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solair LW 70M-A and is the answer not in the manual?

Questions and answers

Summary of Contents for Alpha-InnoTec Solair LW 70M-A

  • Page 1 Alpha-InnoTec GmbH Industriestrasse 3, D-95359 Kasendorf the future of heat pumps Tel.: +49 (0)9228 99060 Fax.: +49 (0)9228 990629 www.alpha-innotec.com e-mail:info@alpha-innotec.de INSTRUCTION MANUAL with Device Information Air / Water Heat Pumps Outside Installation LW 70M-A LW 80M-A LW 80M-A/X LW 80M-A/S/X This instruction manual is part of the scope of supply and must be handed over to the user of the plant.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS Page In general, the following recommendations are referred to in this instruction manual. SAFETY REGULATIONS GENERAL Safety instructions. Important! Please observe! SCOPE OFSUPPLY Please observe advice referring to function and operating method! TRANSPORT Reference to instruction manual of the heat pump controller INSTALLATION ASSEMBLY...
  • Page 3: General

    GENERAL / SCOPE OF SUPPLY General Scope of supply Operating range Scope of supply heat pump basic device The heat pump is designed exclusively for the heating of heating circuit water and sanitary hot water. Considering • Compact device with fully hermetic compressor and the application limits (see technical details), the heat pump all relevant safety components for refrigeration circuit can be installed on new or existing heating installations.
  • Page 4: Transport

    TRANSPORT General Preparation To avoid transportation damage, the heat pump should be 1) Open the quick-release screws on the operator side transported in packed condition on a wooden pallet to the (side with logo) by turning anticlockwise (90°). fi nal destination with a lift truck or a pallet truck, Attention when transporting the device: the heat pump is not secured to the transportation pal- let!
  • Page 5: Installation

    INSTALLATION ASSEMBLY Installation Heating water supply point When installing the device, please observe the The supply points are situated behind the right-hand installation advice and the minimum distances in covering, seen from the operating side. Take of the co- the annex vering.
  • Page 6 Hydraulic schematic The heat pump must be integrated to the heating circuit in Alpha-InnoTec hot water tanks have special smooth bore pipe accordance with the recommended schematic, see schematic. exchanger surfaces. They are manufactured to match the re- quirements of the heat pumps.
  • Page 7: Hydraulic Schematic

    HYDRAULIC SCHEMATIC Single source operation Bivalent operation Sanitary hot water Sanitary hot water storage storage Buffer tank Buffer tank Integral with heat Integral with heat pump pump Boiler Frost-proof Frost-proof condensate condensate drain drain 1) Heat pump with fl ow and return sensor for the heating system 24) Manometer 2) Radiator or fl...
  • Page 8: Power Supply

    INSTALLATION POWER SUPPLY Installation and electric works must be carried Hang in the switchbox in the lateral spaces.. out by competent persons and in accordance with all safety and IEE* regulations. *IEE – Institute of Electrical Engineers Please secure right-hand rotating fi eld of the load supply when connecting the heat pump.
  • Page 9: Terminal Connection Plan

    INSTALLATION POWER SUPPLY / TERMINAL CONNECTION DIAGRAM 400V, 3ph external return sensor outdoor sensor sanitary water sensor/-thermostat (accessories) sensor mixer 1 (accessories) room remote control (accessories) room remote control accessories Mixer1 Closed Mixer 1 Open heatgenerator2 / collector fault second heatgenerator1 sanitary water reversing valve suppl.-/circulation pump...
  • Page 10 INSTALLATION POWER SUPPLY / TERMINAL CONNECTION DIAGRAM 230V, 1ph external return sensor outdoor sensor sanitary water sensor/-thermostat (accessories) sensor mixer 1 (accessories) room remote control accessories room remote control (accessories) Mixer1 Closed Mixer 1 Open heatgenerator2 / collector fault second heatgenerator1 sanitary water reversing valve suppl.-/circulation pump...
  • Page 11: Start-Up / Maintenance / Trouble Shooting

    START UP / MAINTENANCE / TROUBLE SHOOTING Start up The heat pump will be started by the heat pump controller; the start up is to be carried out by a competent person. For this, fi ll in the notice of completion (see page 29) and fax it to the supplier.
  • Page 12: Technical Details

    TECHNICAL DETAILS Wärmepumpenart / Type / Type Konformität / Conformity / Conformément à Aufstellung / Installation / Montage Schutzart / protection / protection Leistungsdaten / Performance Data / Données de puissance Heizleistung COP bei / Heating power COP / Puissance calorifique COP à A2/W35 nach / acc.to / d'après EN255 A7/W35...
  • Page 13 TECHNICAL DETAILS 813039, 813040, 813055 LW70M-A LW80M-A, M-A/X LW80M-A/S/X Luft / air / air - Wasser / water / eau Luft / Wasser aussen / outside / extérieur IP24 IP24 IP24 kW/- 7,0 / 3,3 8,1 / 3,4 8,1 / 3,4 kW/- 8,0 / 3,8 9,8 / 4,0 9,8 / 4,0...
  • Page 14: Heating Output

    HEATING POWER, POWER CONSUMPTION, COP LW 70M-A V.811016a p 35 p 55 C Heizleistung / Heating output / Puissance calorifique Vorlauf 35 Vorlauf 50° C Vorlauf 35° C Vorlauf 50Vorlauf 6Pw Tle (kW) -20,00 5,30 3,60 2,26 1,60 1,20 # -15,00 5,80 3,80...
  • Page 15 HEATING POWER, POWER CONSUMPTION, COP LW 80M-A, LW 80M-A/X, LW 80M-A/S/X V.811013a Heizleistung / Heating output (kW) / Puissance Vorlauf 35 Vorlauf 50° C Vorlauf 35° C Vorlauf 50Vorlauf 6Pw Tle -20,00 5,30 3,60 2,26 1,60 1,20 # -15,00 5,80 3,80 1,70 -7,00...
  • Page 16: Pressure Drop Curve

    PRESSURE DROP CURVES LW 70M-A, LW 80M-A, LW 80M-A/X, LW 80M-A/S/X V.812013 Druckverlust / Pressure drop curves / Courbe de perte de (bar) 0,30 0,28 LW70M-A 0,26 0,24 0,22 0,20 LW80M-A LW80M-A LW80M-A/S/X 0,18 0,16 0,25 0,001929 0,00175 0,003086 0,007716 0,007015 0,01234 0,14...
  • Page 17: View Plan, Ground Plan, Socket Plan

    MASSBILD / VIEW PLAN / DIMENSIONS LW 70M-A, LW 80M-A, LW 80M-A/X, LW 80M-A/S/X V.819195  +HL]ZDVVHU $XVWULWW 9RUODXI 5  $*  /XIWDXVWULWW DQ  6HLWHQ  &LUFXLW FKDXIIDJH GpSDUW  6RUWLH G DLU VXU GHX[ F{WpV IH 5   $LU RXWOHW DW WZR VLGHV  +HDWLQJ FLUFXLW ZDWHU RXWSXW IORZ HW 5 ...
  • Page 18: Sound

    INSTALLATION / SOUND LW 70M-A, LW 80M-A, LW 80M-A/X, LW 80M-A/S/X V.8190038 Mindestabstände: Distances minimum: Minimum distances: 1m zum Gerät um die Montage zu ermöglichen. 1m à l'appareil pour permettre le montage. 1m to the device to allow assembly. Montageseite Côté...
  • Page 19: Legend Circuit Diagram

    LEGEND CIRCUIT DIAGRAMS Legende zu Stromlaufplan circuit diagram schéma electrique LW M-A Schütz Verdichter 1 contactor compressor 1 contacteur compresseur 1 Schütz Verdichter 2 contactor compressor 2 contacteur compresseur 2 Schütz Ventilator contactor fan contacteur de ventilateur Schütz Zusatzheizung contactor suppl. heating contacteur suppl.
  • Page 20 CIRCUIT DIAGRAM PART 1 400V, 3ph LW 70M-A, LW 80M-A, LW 80M-A/X V.817050 - Subject to Technical Modifi cations - 830116GB/150915...
  • Page 21 400V, 3ph CIRCUIT DIAGRAM PART 2 LW 70M-A, LW 80M-A, LW 80M-A/X V.817050 830116GB/150915 - Subject to Technical Modifi cations -...
  • Page 22 CIRCUIT DIAGRAM PART 3 400V, 3ph LW 70M-A, LW 80M-A, LW 80M-A/X V.817050 - Subject to Technical Modifi cations - 830116GB/150915...
  • Page 23 400V, 3ph CIRCUIT DIAGRAM PART 4 LW 70M-A, LW 80M-A, LW 80M-A/X V.817050 830116GB/150915 - Subject to Technical Modifi cations -...
  • Page 24 CIRCUIT DIAGRAM PART 1 230V, 1ph LW 80M-A/S/X V.817054 - Subject to Technical Modifi cations - 830116GB/150915...
  • Page 25 230V, 1ph CIRCUIT DIAGRAM PART 2 LW 80M-A/S/X V.817054 830116GB/150915 - Subject to Technical Modifi cations -...
  • Page 26: Circuit Diagram Lw 70, 80 M-A , M-A/X

    CIRCUIT DIAGRAM PART 3 230V, 1ph LW 80M-A/S/X V.817054 - Subject to Technical Modifi cations - 830116GB/150915...
  • Page 27: Circuit Diagram Lw 80 M-A/S/X

    230V, 1ph CIRCUIT DIAGRAM PART 4 LW 80M-A/S/X V.817054 830116GB/150915 - Subject to Technical Modifi cations -...
  • Page 28 818021a - Subject to Technical Modifi cations - 830116GB/150915...
  • Page 29: Ec Declaration Of Conformity

    EC Declaration of Conformity The undersigned hereby confirms that the device(s) referred to hereinafter - in the execution launched by us - complies / comply with the harmonized EC-directives, EC-safety standards and product-specific EC-standards. In case of a modification of the device(s) not agreed with us, this declaration is no more valid. Designation of the device(s): EC-directives Brine/water-heat pumps...
  • Page 30: Notice Of Completion

    NOTICE OF COMPLETION FAX TO □ > MANUFACTURER’S AFTER-SALES-SERVICE ALPHA-INNOTEC (UK) +44 (0)1373 826 444 □ > MANUFACTURER’S AFTER-SALES-SERVICE ALPHA-INNOTEC (IRL) +44 (0)28 8076 0868 __________________________________________________________________________________________________________________ NOTICE OF COMPLETION (NOC) AND REQUEST FOR START-UP BY MANUFACTURER During the start-up, the functionality and correct operation of the installation will be checked. All values given by the manufacturer will be checked to ensure long-term and reliable operation of the installation.
  • Page 31 CHECK-LIST / NOTICE OF COMPLETION FOR HEAT PUMP INSTALLATION Heat Source Air □ Ducts connected and impenetrable o.k. □ Weather protective grids installed o.k. □ Direction of fan rotation o.k. Heat Source Brine or Water □ Heat source volume rate (3) o.k.
  • Page 32 Alpha-InnoTec GmbH Industriestrasse 3 The future of heatpumps D-95359 Kasendorf Tel.: +49 (0)9228 9906 0 Fax.: +49 (0)9228 9906 29 e-mail: info@alpha-innotec.de www.alpha-innotec.com Certified Quality SCOTLAND ENGLAND / WALES In view of offering the heat pump Renewable Energy Options Ltd.

This manual is also suitable for:

Solair lw 80m-aSolair lw 80m-a/xSolair lw 80m-a/s/x
